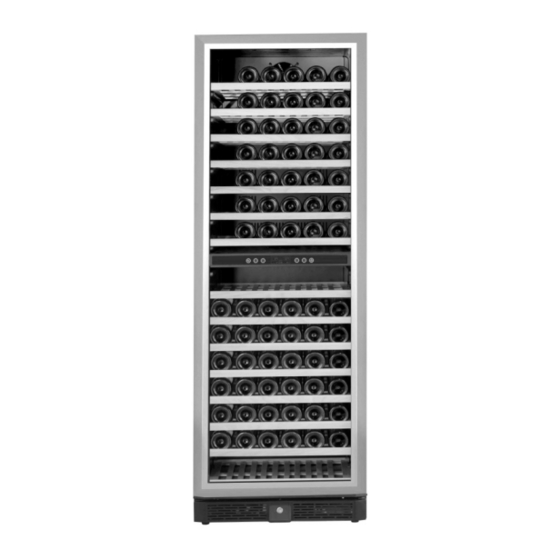

2-zone 160-bottle wine cellar

Advertisement

Quick Links




2-ZONE 160-BOTTLE WINE CELLAR
Please read carefully and follow all safety rules and operating instructions.
Write the Serial Number for your unit here:
_________________________________
Model SWC1965
Instruction Manual



FELIX STORCH, INC.
Summit Appliance Division
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWC1965 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Summit SWC1965

  • Page 1       2-ZONE 160-BOTTLE WINE CELLAR Model SWC1965 Instruction Manual Please read carefully and follow all safety rules and operating instructions.    FELIX STORCH, INC. Write the Serial Number for your unit here:   Summit Appliance Division 770 Garrison Avenue _________________________________  ...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 3 FREE-STANDING INSTALLATION ONLY! FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL  Use two or more people to move and install appliance. Failure to do so can result in back or other injury.  To ensure proper ventilation for your appliance, the front, back, sides and top of the unit must be completely unobstructed.
  • Page 4: Table Of Contents

    Table of Contents Important Safeguards ............... 2 - 3 Location of Parts ..................5 Technical Data ..................6 Installation Instructions .................6 To Install the Door Handle Reversing the Door Swing Operating Your Wine Cellar ............. 7 - 8 The Control Panel ................7 The Display Screen ..............
  • Page 5: Location Of Parts

    Location of Parts 1. Upper Zone Temperature Probe  12.    Shelf  2. Upper Zone Light  13.    Lower Zone Fan  3. Upper Zone Fan  14.    Heater  4. Heat Exhaust Window  15.    Heat Exhaust Window  5. Light Switch  16.    Foot  6. Lower Zone Temperature Set  17.    Upper Hinge  7. Upper Zone Temperature Set  18.    Glass  8. Celsius/Fahrenheit Switch  19. ...
  • Page 6: Technical Data

    23.4" x 26.8" x 69.6" Installation Instructions Your SWC1965 wine cellar must not be recessed or built into an enclosure. It must be installed free-standing, allowing plenty of clearance at the back, sides and top. Be particularly careful to keep the front of the unit clear of obstructions, especially the vents at the bottom.
  • Page 7: Operating Your Wine Cellar

    Operating Your Wine Cellar NOTE: Allow unit temperature to stabilize for 24 hours before use. The Control Panel:  To control the upper zone temperature, press the UP and DOWN buttons on the left side where you see the words Upper Zone (Zone I). Each press will adjust the temperature by 1C° between 5°...
  • Page 8: Care And Maintenance

    3. Setting temperature of the lower zone 4. Celsius or Fahrenheit degree 5. The actual temperature of the lower zone 6. Celsius or Fahrenheit degree 7. Lower Zone 8. Celsius or Fahrenheit degree 9. Upper Zone 10. The actual temperature of the upper zone 11.
  • Page 9: Electrical Circuit Diagram

    Electrical Circuit Diagram SENSOR 1 SENSOR 3 SENSOR 2 - 9 -...
  • Page 10: Troubleshooting

    There is a problem with the plug. LED display error Temperature probe is not working properly. Buttons are not functional. Temperature controller panel is damaged. If you still have a problem with your wine cellar, call our SUMMIT Service Center toll-free at 1-800-932-4267. - 10 -...
  • Page 11 Notes - 11 -...
  • Page 12: Limited Warranty

    Limited Warranty ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
