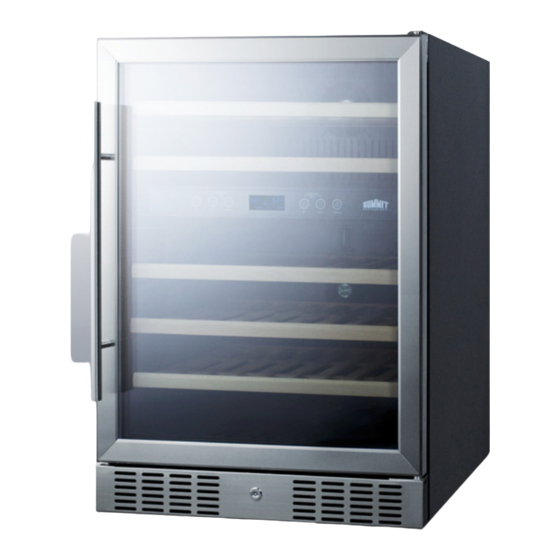

2-Zone Glass Door Wine Cellar
Model SWC546LBI
Instruction Manual
Please read carefully and follow all safety rules
and operating instructions.
Felix Storch, Inc.
Write Serial Number (on back of unit) here:
Summit Appliance Division
770 Garrison Avenue
Bronx, New York 10474
__________________________________
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit SWC546LBI
Summary of Contents for Summit SWC546LBI
- Page 1 2-Zone Glass Door Wine Cellar Model SWC546LBI Instruction Manual Please read carefully and follow all safety rules and operating instructions. Felix Storch, Inc. Write Serial Number (on back of unit) here: Summit Appliance Division 770 Garrison Avenue Bronx, New York 10474 __________________________________ www.summitappliance.com...
-
Page 2: Table Of Contents
Table of Contents Important Safeguards ............... 2 - 3 Location of Parts ..................3 Technical Data ..................4 Installation Instructions ................. 4 Operating Your Wine Cellar .............. 4 - 5 Care and Maintenance ................6 Electrical Circuit Diagram ..............6 Troubleshooting .................. -
Page 3: Location Of Parts
Important Precautions: • Do not lift unit by door handle. • Never install or operate the unit behind closed doors. • Be sure front grille is free of obstruction. Obstructing free airflow can cause the unit to malfunction and will void the warranty. •... -
Page 4: Technical Data
Technical Data Model Number SWC546LBI Capacity 5.3 ft Voltage 110 ~ 120V Current 1.0A Frequency 60Hz Protection class Climate class T/ST/N/SN Input power 140W Upper Zone: 40 - 50°F (5 – 10°C) Temperature Control Range Lower Zone: 50 - 64°F (10 – 18°C) Net weight 105.6 lbs... - Page 5 The Display Screen: On the display screen in the middle of the control panel, you can read the following information and adjust the temperature setting as required: 1. Indicates the working status of the entire unit 2. Indicates the working status of the lower zone: ※: Cooling ○: Maintaining the current temperature : Heating...
-
Page 6: Care And Maintenance
Care and Maintenance Cleaning your wine cellar • Unplug the wine cellar and remove the bottles. • Wash the inside with a solution of warm water and baking soda. The solution should consist of about 2 tablespoons of baking soda to a quart of water. •... -
Page 7: Troubleshooting
Troubleshooting You can solve many common wine cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service center. PROBLEM POSSIBLE CAUSE Wine cellar does not operate. Not plugged in or using wrong voltage. -
Page 8: Limited Warranty
Limited Warranty ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
