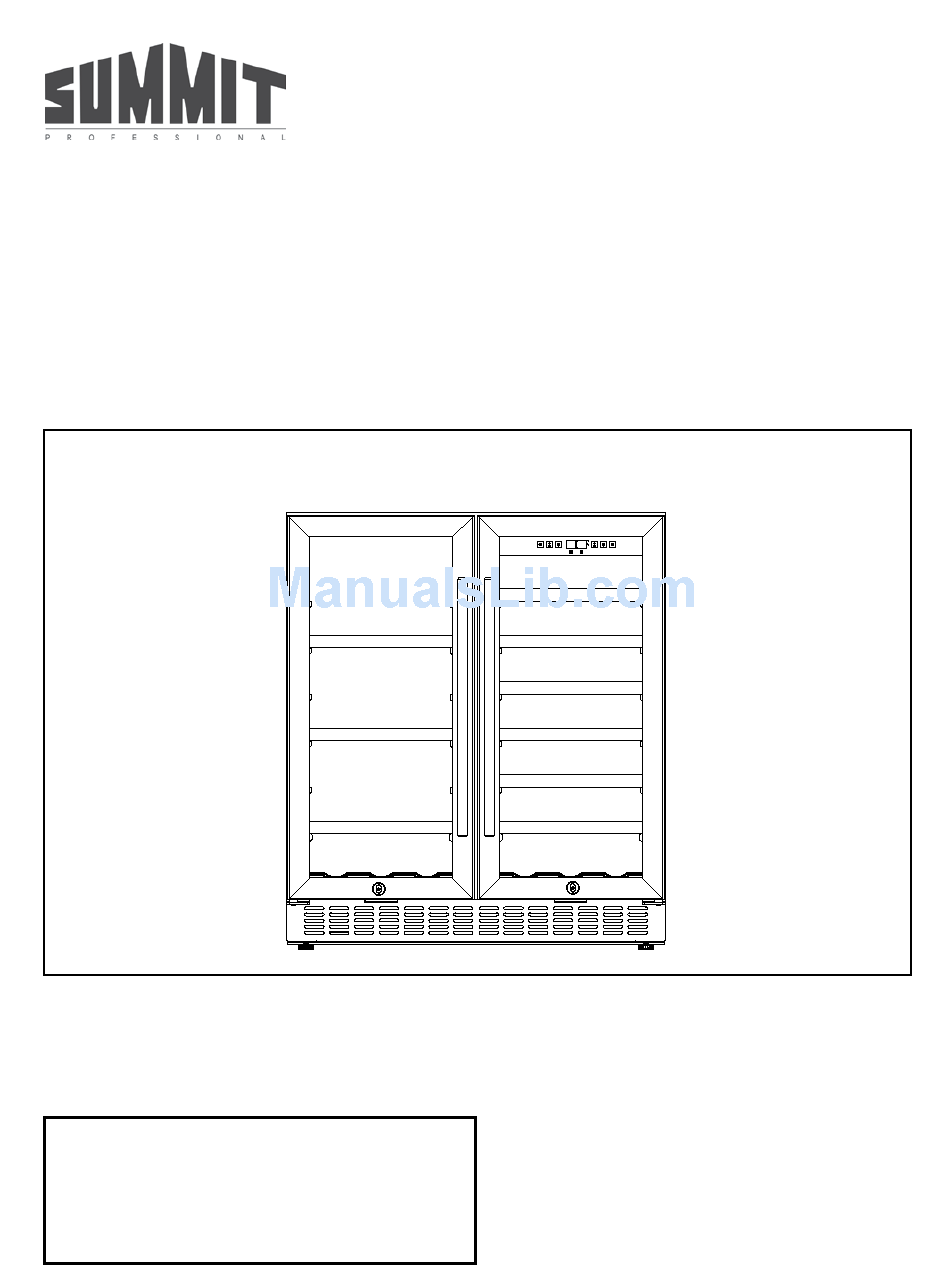

WINE / BEVERAGE CENTER,
WINE / REFRIGERATOR,
Model Nos.: SWBV3071 /SWC3072 / SWR3073 / SWFZ3074
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model & Serial Nos. (on lower left corner of
inside cabinet) here:
Model No.:
____________________________________
Serial No.: ______________________________
WINE CHILLER,
WINE / FREEZER
Instruction Manual
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY10474
www.summitappliance.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Summit SWBV3071
Summary of Contents for Summit SWBV3071
- Page 1 WINE CHILLER, WINE / REFRIGERATOR, WINE / FREEZER Model Nos.: SWBV3071 /SWC3072 / SWR3073 / SWFZ3074 Instruction Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model & Serial Nos. (on lower left corner of Felix Storch, Inc.
-
Page 2: Table Of Contents
Installation of Your Appliance Electrical Connection Extension Cord Installing the Stainless Steel Handles Operating Your Appliance 8-12 Recommended Temperature Settings Control Panel for Models SWBV3071/SWC3072/SWR3073 9-10 Control Panel for Model SWFZ3074 10-11 Interior Light Sabbath Mode Temperature Memory Function Temperature Alarm / Door Alarm... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 4 - Avoid open flames and anything that creates a spark, - Disconnect from the electrical power line, - Air the room in which the appliance is located for several minutes, and - Contact the Service Department for advice. • The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
-
Page 5: Location Of Parts
LOCATION OF PARTS MODEL SWBV3071 LED Light Digital Control Panel Handle LED Light Left Zone Right Zone (Beverage Center) (Wine Chiller) Wire Shelves (3) Wood Shelves (6) Glass Door Security Lock Adjustable Legs Ventilation Grille MODEL SWC3072 LED Light Digital Control Panel... - Page 6 MODEL SWR3073 LED Light Digital Control Panel Handle LED Light Left Zone Right Zone (Refrigerator) (Wine Chiller) Glass Shelves (3) Wood Shelves (6) Glass Door Insulated Door Security Lock Foaming Door Adjustable Legs Ventilation Grille MODEL SWFZ3074 Digital Control Panel LED Light Handle LED Light...
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE USING YOUR APPLIANCE • Remove the exterior and interior packing. • CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours to allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance and the lifetime of the unit. -
Page 8: Extension Cord
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling. -
Page 9: Control Panel For Models Swbv3071/Swc3072/Swr3073
41ºF and 72ºF (5ºC and 22ºC) which is suitable for storing wines. For models SWBV3071 and SWR3073, the temperature of left zone can be set between 36ºF and 43ºF (2ºC and 6ºC) which is suitable for storing beverages and the temperature of right zone can be set between 41ºF and 72ºF (5ºC and 22ºC) which is suitable for storing wines. -
Page 10: Control Panel For Model Swfz3074
particular temperature zone. • To view the set temperature at any time, press the UP or DOWN key; the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current inner temperature again. CONTROL PANEL for Model SWFZ3074 ON/OFF Power To turn the appliance ON or OFF, touch the symbol and hold for 5 seconds. -
Page 11: Interior Light
display flashes while you make the setting. • After the temperature has been set, the display shows the current inner temperature of the particular temperature zone. • To view the set temperature at any time, press the UP or DOWN key; the set temperature will temporarily flash in the display for 5 seconds. -
Page 12: Door Lock
DOOR LOCK Your unit is provided with a lock and key combination. The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock the door, do the reverse operation, making sure the metal pin is engaged completely. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE CLEANING YOUR APPLIANCE • Turn off the power, unplug the appliance, and remove all items, including shelves. • Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water). •... -
Page 14: Troubleshooting
TROUBLESHOOTING You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY •... - Page 15 • The appliance is not properly leveled. • Level the appliance with the The doors will adjustable feet. not close • Clean the door gaskets. • The gaskets are dirty. properly. • Check the shelves and refit correctly. • The shelves are out of position. •...
-
Page 16: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
