Top bracket (1)

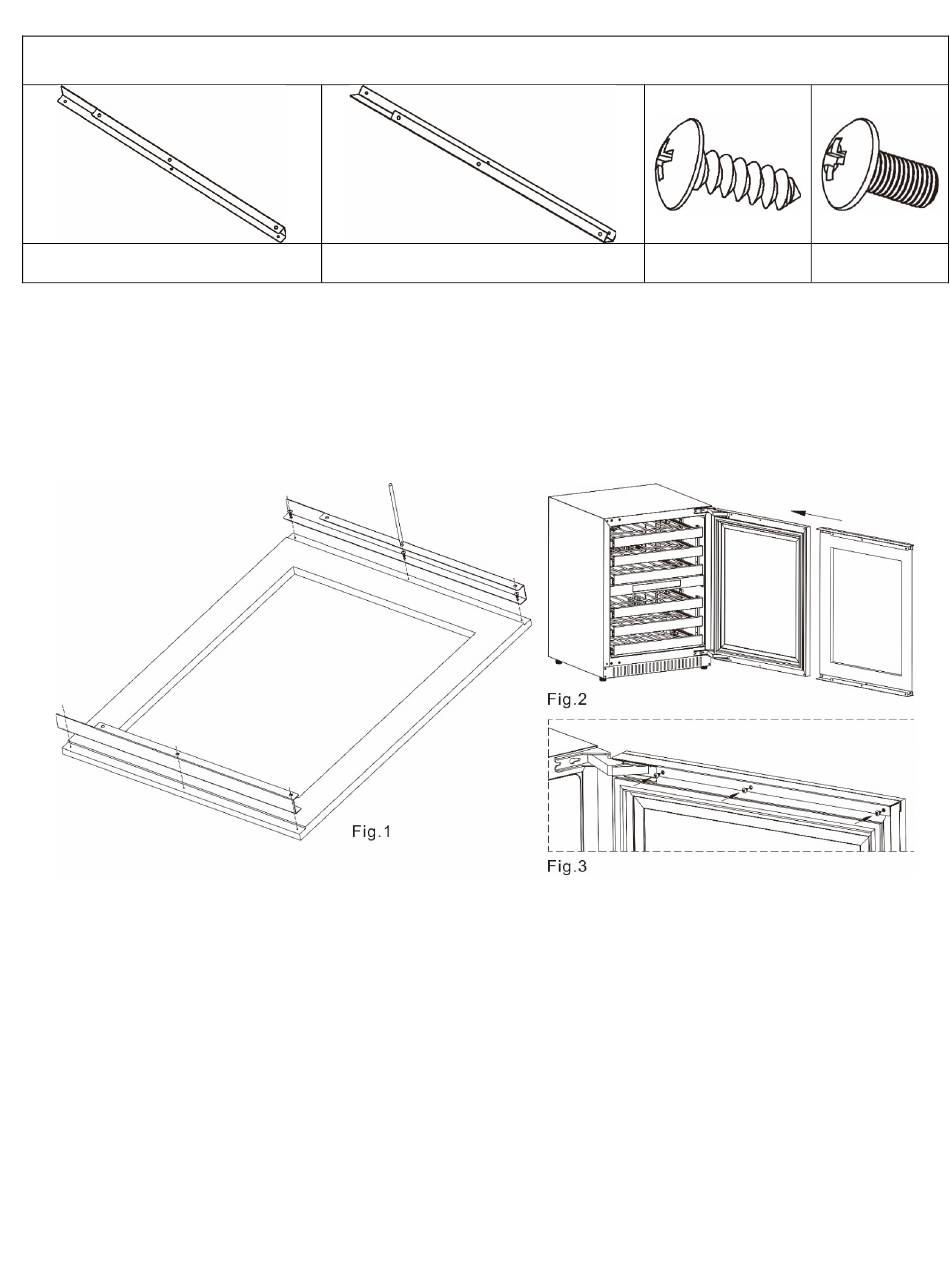

Installing the Bracket & Full Overlay Panel Installation
1. Lay the wooden panel (3) on a flat surface.
2. Place the top bracket and bottom bracket along the edge of the panel.
3. Attach the bracket to the wooden panel by using Phillips self-tapping screws. (Fig.1)
4. Open the door and remove the handle.
5. Push the installed wooden panel, in the direction of the door. (Fig.2)
6. Push into place and secure with Phillips screw.
Installing the handle on the overlay panel
If reusing the handle that came with the unit:
1. Unscrew the studs located on the front face of the door and set them aside for later use.
2. Remove the screws from the door and proceed to mark their positions on the overlay panel by using the
handle as a guide.
3. Use a 3/16" (5mm) drill bit to make the holes on the overlay panel for the screws.
4. Insert the screws, making sure to leave the head of the screw flush with the surface of the panel
(countersink screws if necessary).
5. Take the studs you saved in Step 1 and screw them back. They are now projecting from the face of
the panel.
6. Place the handle over the mounting studs and, using the supplied Allen key, tighten the securing
grub screws to fix the handle. Refer to "Installation of the Handle" (Refer to page 9).
If using a customer supplied handle(s):
1. Attach the handle to the overlay panel by using flat head or countersunk screws.
2. Unscrew the studs located on the front face of the door and save them for later possible use.
Included in the bracket kit
Bottom bracket (1)
11
Phillips self-tapping Phillips screw
screw (6) (6)
