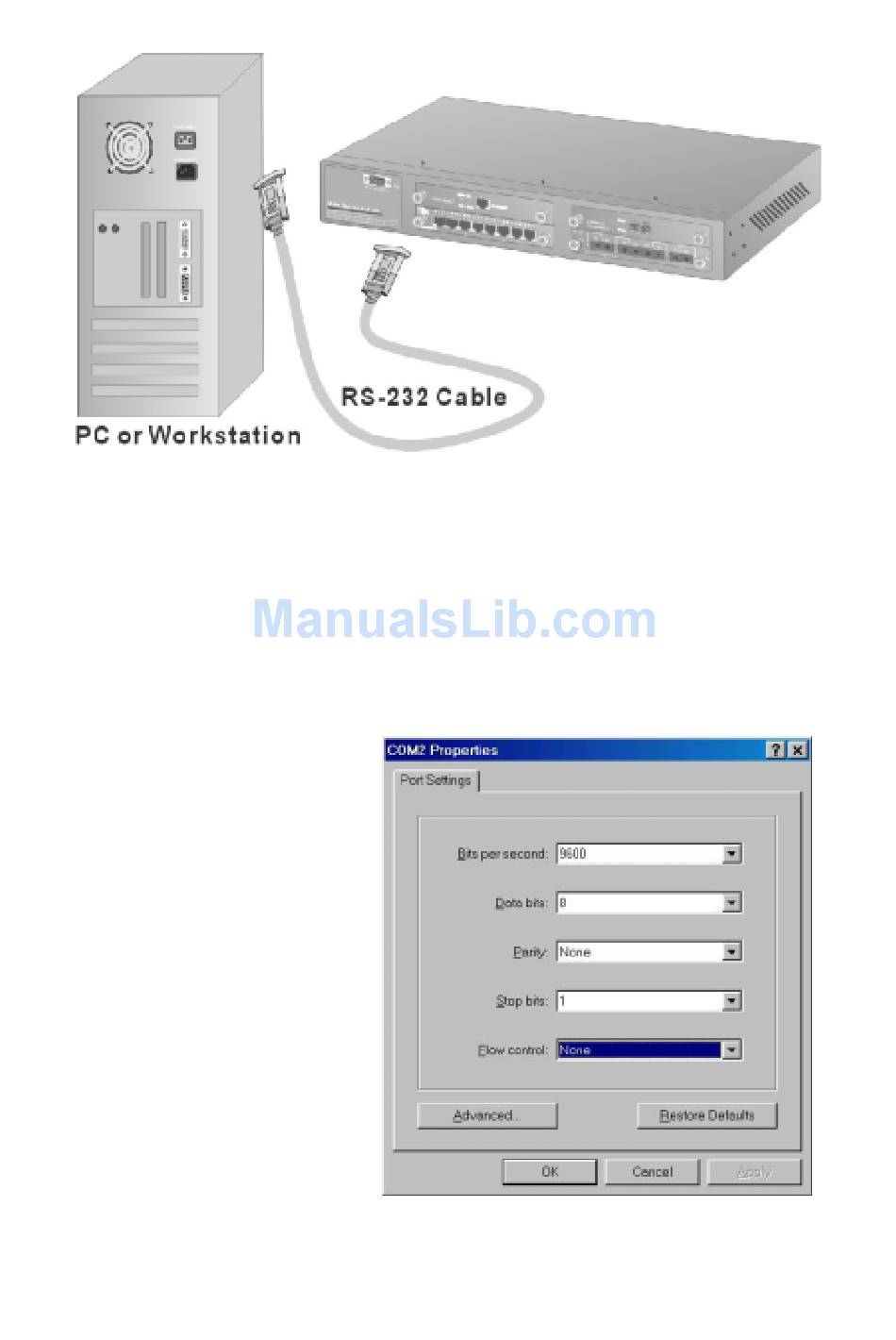

Figure 4-4. Connecting the MaxSwitch to a terminal
via RS-232 cable
After connected to the Console port, turn on the PC or terminal and
configure its communications parameters to match the following
default characteristics of the console port:
Baud Rate: 9600 bps
Start Bit: 1
Data Bits: 8
Stop Bit: 1
Parity: none
Figure 4-5. The setting
of communication
parameters
You can run Hyper Terminal or a terminal emulation program using
the above settings for Console Management. After you have finished
25
