Figure 4-2. Figure 2-4. Attach mounting brackets with screws
B. After attached both mounting brackets, position the Switch in the
rack by lining up the holes in the brackets with the appropriate
holes on the rack. Secure the Switch to the rack with a
screwdriver and the rack-mounting screws.

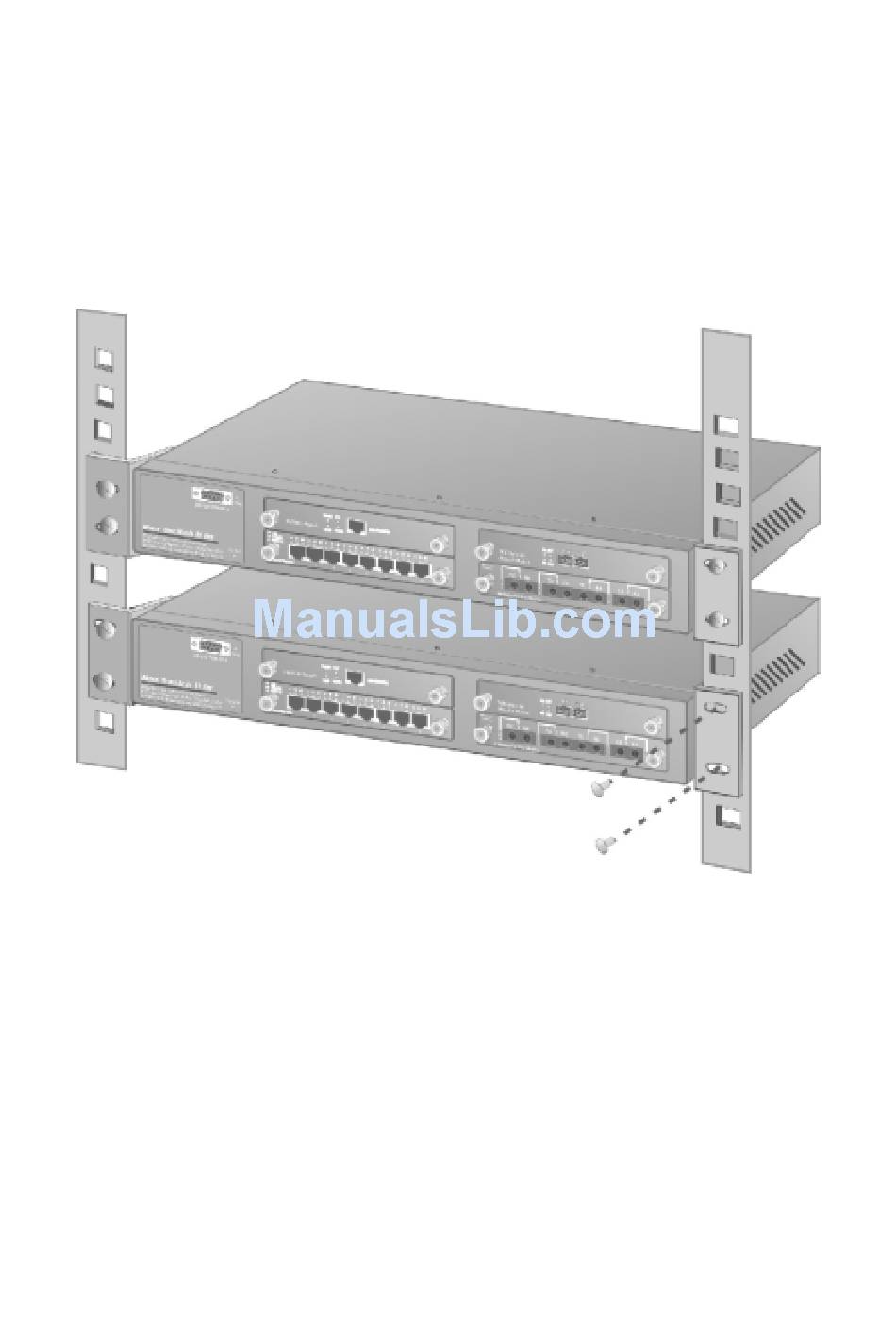

Figure 4-3. Figure 2-5. Mount the Modular Switch
Note: For proper ventilation, allow at least 4 inches (10 cm) of
clearance on the front and 3.4 inches (8 cm) on the back of the
switch. This is especially important for enclosed rack installations.
in an EIA standard 19-inch Rack
