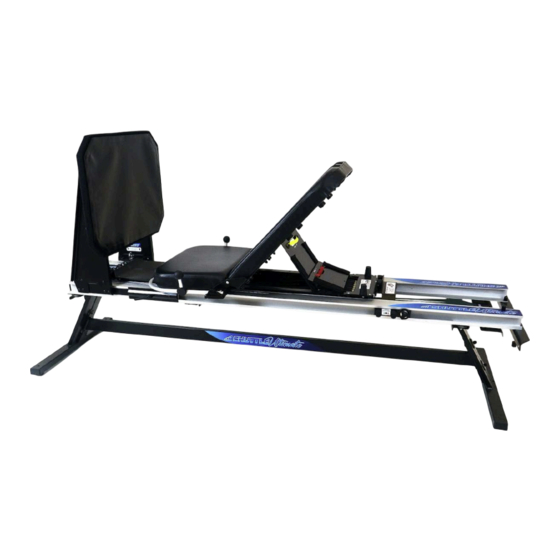

- Page 2 WELCOME TO THE FAM Congratulations on the purchase of your new Shuttle Ultimate. Shuttle equipment has been trusted by physical therapists and sports training facilities around the globe for almost half a century. It is our mission to deliver the finest quality exercise devices with superior customer service.
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION ..…………………………………………………………….…………. 1 PERSONAL SAFETY ……….……………………………………………………………………….……………. 1 SPECIFICATIONS ………………………………….………………………………………..…………..……….. 2 IDENTIFICATION OF THE MANUFACTURER …………………………………………………….……….…. 2 ASSEMBLY OF THE ULTIMATE …..……………………………………………..……………………………… 3 - ATTACHING SUPPORT BAR TO STAND-ENDS……….……………………..……4 - ATTACHING RAILS TO STAND-ENDS…….………………………………………..5 - MOUNTING THE KICKPLATE STRUCTURE TO THE RAILS….…………………..6 - INSERTING THE CARRIAGE…………………………………………………………7 - ATTACHING THE KICKPLATE BOARD……………………………………………..8 - ATTACHING THE ACCESSORIES…….………….………………………………….9... -
Page 4: Important Safety Information
Replace any damaged or worn parts immediately. Do not use the Ultimate until the repair is performed. Use only original parts from the manufacturer. Changes or modifications to this unit not expressly approved by Shuttle Systems could void the warranty. -
Page 5: Specifications
SPECIFICATIONS Dimensions: 36”W x 104”L HEAD-END KICKPLATE SLOTTED PLATE FOOT-END Floor Space Required: 4’W x 10’L ELASTICORDS Carriage Capacity: 600 lbs HYPEREXTENSION PLATE BACKREST Max Resistance: 3-500 lbs* HEAD-END Total Elasticords: ELASTICORDS (16) Total Elasticords FOOT-END (1) 2 lb head-end elasticord SLOTTED (1) 6 lb head-end elasticord PLATE... -
Page 6: Identification Of The Manufacturer
IDENTIFICATION OF MANUFACTURER A - Manufacturer’s name and contact B - Item number C - Description of product D - Serial number Page 2... -
Page 7: Assembly Of The Ultimate
ASSEMBLY OF THE ULTIMATE Assembly of the Ultimate requires two people Keep in mind that the following images pertain to just one of the two available Ultimate models, your parts may appear slightly different than those in the included images but the required steps remain the same. Tools Needed: 7/16 inch socket and/or wrench, 1/2 inch socket and/or wrench, 9/16 inch socket and/or wrench. -
Page 8: Attaching Support Bar To Stand-Ends
Parts Bag 1. Prop one stand-end and slide the bolts from the support bar into the vertical slot of the stand-end. The Shuttle Ultimate sticker on the support bar should be facing upward. Stand-ends should lean in towards each other and complement the angle of the support. -
Page 9: Attaching Rails To Stand-Ends
ASSEMBLY OF THE ULTIMATE (STEP 2) ATTACHING RAILS TO STAND-ENDS STEP 2 ITEMS REQUIRED Ultimate Rails Stand-Ends Parts Bag 1. Place the Ultimate rail system onto the stand-ends, by allowing the protruding bolts to drop through the openings on the stand-end. Ultimate rails should be oriented so that the end 2. - Page 10 ASSEMBLY OF THE ULTIMATE (STEP 2) Page 5...
-
Page 11: Mounting The Kickplate Structure To The Rails
ASSEMBLY OF THE ULTIMATE (STEP 3) MOUNTING THE KICKPLATE STRUCTURE TO THE RAILS STEP 3 ITEMS REQUIRED Sliderbars Kickplate Structure Rail System 1. Attach sliderbars to the kickplate structure. The necessary hardware is loosely attached to the attachment points on the kickplate structure. - Page 12 ASSEMBLY OF THE ULTIMATE (STEP 3) Page 6...
-
Page 13: Inserting The Carriage
ASSEMBLY OF THE ULTIMATE (STEP 4) INSERTING THE CARRIAGE STEP 4 ITEMS REQUIRED Carriage Rail System 1. To insert the carriage, first remove the two bumpers from the head-end of the rail system. Rotate numbers counterclockwise until they are removed. (Pic 4.1) 2. - Page 14 ASSEMBLY OF THE ULTIMATE (STEP 5) ATTACHING THE KICKPLATE TO THE KICKPLATE STRUCTURE STEP 5 ITEMS REQUIRED Kickplate Structure Kickplate 1. Remove the metal plate and knobs from the kickplate. Push the kickplate block through the vertical slot of the kickplate structure and reattach the metal plate and knobs to the outside of the kickplate structure.
-
Page 15: Attaching The Accessories
ASSEMBLY OF THE ULTIMATE (STEP 6) ATTACHING THE ACCESSORIES STEP 6 ITEMS REQUIRED Carriage Lockdown Slider Hyperextension Stop 1. Insert carriage lockdown slider. First, loosen the knob by turning counterclockwise so that the disk separates from the fiberglass. Then insert into the rail system so that the sticker is in the upright position. Make sure that the fiberglass slides along the inside of the rail while the disk and knob slide on the outside of the rail. -
Page 16: Attaching The Towers
ASSEMBLY OF THE ULTIMATE (STEP 7) ATTACHING THE TOWERS STEP 7 ITEMS REQUIRED Crossbar Towers Towers Bag 1. Align the inside bolt holes of the crossbar to the first bolt hole of each rail. Attach with the stainless steel bolts and washers provided. - Page 17 ASSEMBLY OF THE ULTIMATE (STEP 7) Page 10...
-
Page 18: Using The Product
USING THE PRODUCT Located between the Ultimate rails are eight elasticords. They are at the head-end of the machine attached to the lanyards. There are also eight additional elasticords attached to the foot-end of the carriage with black handles. Warning! If you grasp the lanyard too close to the plastic white knob you risk pinching your fingers. Always detach the elasticords when the machine is not in use. - Page 19 USING THE PRODUCT The PNF (Proprioceptive Neuromuscular Facilitation) pulley system is designed to allow upper body exercises while laying, sitting, or kneeling on the Ultimate carriage. It can also be used while standing or sitting next to the Ultimate. The system is designed to be adjusted in the following ways: 1.
-
Page 20: Maintenance And Care
MAINTENANCE AND CARE Elasticord Maintenance 1. Lubricating elasticords is suggested every 6 months. A well maintained elasticord should last 3 to 5 years. 2. Sagging Elasticords - This can result from normal wear and tear and only needs to be replaced if you are not receiving the resistance you require. - Page 21 MAINTENANCE AND CARE (CONTINUED) Part #1410 - Universal Headrest Complete with foam Part #1410A - Universal Headrest Cover Only Part #9445 - Replacement Backrest Part #1436 - Kickplate Cover Replacement Page 14...
-
Page 22: Warranty
SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. SHUTTLE SYSTEMS shall in no event be liable for death, injuries to persons or property or incidental, contingent, special or consequential damages arising from the use of our products. In administration of this warranty, SHUTTLE SYSTEMS may at its discretion request that the product or part must be returned for examination, postage prepaid, to our Bellingham facility. -
Page 23: Support
- information about which parts are covered by the warranty and which must be paid for - supply of original spare parts. When you contact Shuttle Technical Support Service you must give the following information: - Product model - Serial number... - Page 24 Scan code to view our Ultimate Scan code to view our Ultimate Parts YouTube Playlist Page 19...
