Summary of Contents for JUMO DELOS S02

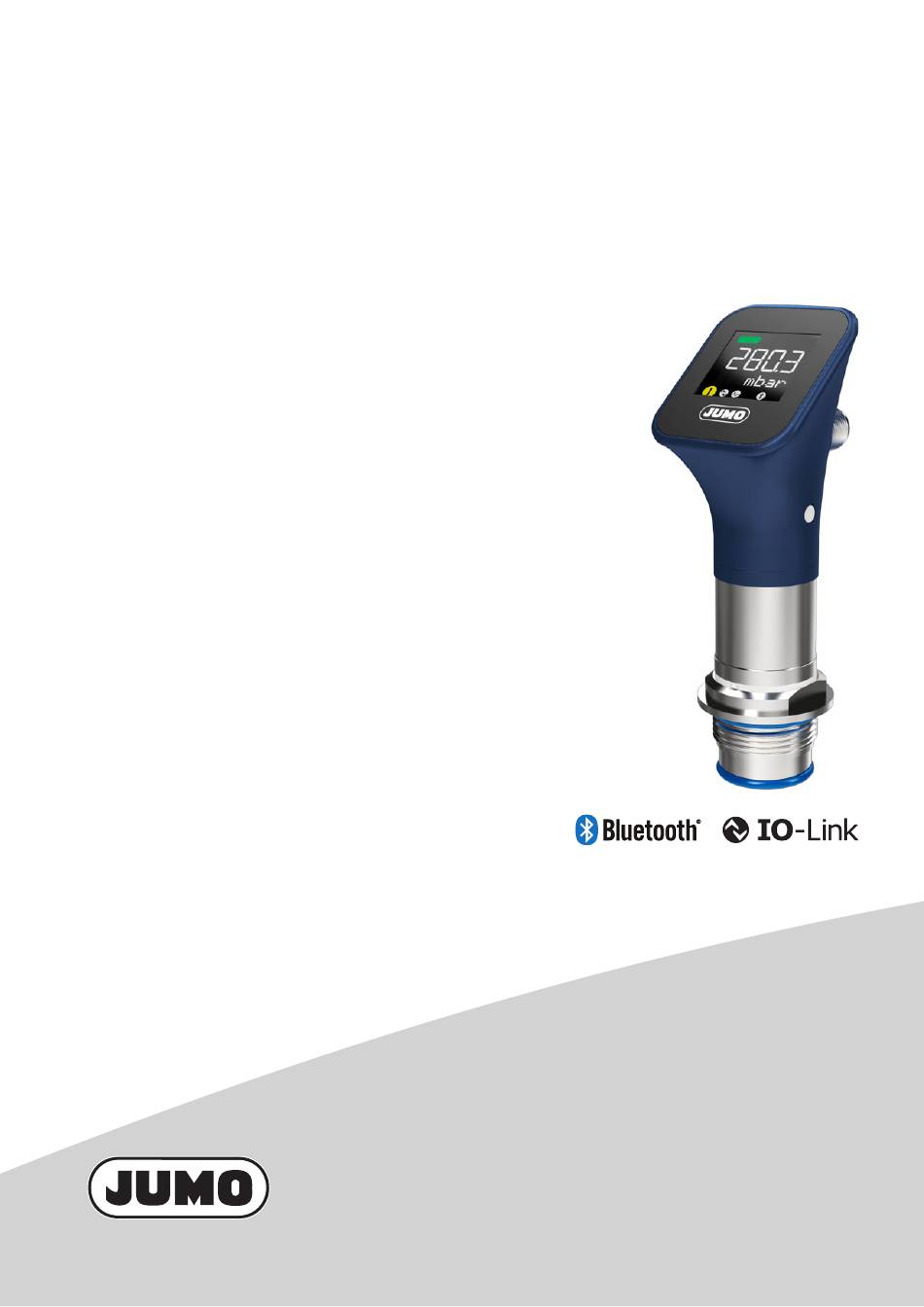

- Page 1 JUMO DELOS S02 Pressure transmitter with display Operating Manual 40505611T90Z001K000 V1.00/EN/30053013/2024-08-26...
- Page 2 Further information and downloads qr-405056-en.jumo.info...
-
Page 3: Table Of Contents
Table of contents Table of contents About this documentation ........6 Purpose. - Page 4 Table of contents 4.8.3 Process connections............16 4.8.4 Materials .
- Page 5 Table of contents Configuration via IO-Link ........39 10.1 Device .
-
Page 6: About This Documentation
About this documentation 1 About this documentation Purpose This documentation is part of the device and includes all information to ensure that it is used safely and as intended across all phases of the product lifecycle. If you do not follow the documentation and safety information, this may result in risk to life and damage to property due to improper use. -
Page 7: Safety
Safety 2 Safety Intended use The pressure transmitter with display measures the absolute or relative pressure of liquid, vaporous, and gaseous media. The device is suitable for mounting in pipes and containers in various applications. It is mounted using individual process connections. The documentation is part of the device. -
Page 8: Description
Description 3 Description Structure Front view Display Top section of the housing (rotating) M12 plug connector Case bottom section Pressure compensation element Process connection with sensor (only in relative pressure sensor) Function The device measures the absolute or relative process pressure. In this process, the process pressure acts on a pressure measuring cell (sensor) via a membrane. -
Page 9: Nameplate
Approval marks and certificates Radio Equipment Directive (RED) JUMO GmbH & Co. KG hereby states that the DELOS S02 device complies with the Directive 2014/53/ EU. The full text of the EU Declaration of Conformity is available at the following web address: qr-405056-en.jumo.info. -
Page 10: Device Id
(IODD) is assigned to each device ID which is used for communication via the IO-Link interface, Page 31. Relative pressure Device ID Device version IODD 0×088031 0 to 0.4 bar relative pressure JUMO-088031-*.xml 0×0880B1 0 to 1 bar relative pressure JUMO-0880B1-*.xml 0×088131 0 to 4 bar relative pressure JUMO-088131-*.xml 0×0881B1 0 to 10 bar relative pressure JUMO-0881B1-*.xml... -
Page 11: Technical Data
Technical data 4 Technical data Electrical safety Requirements DIN EN 61010-1:2020 The device must be equipped with an electrical circuit that meets the require- ments for "Limited-energy circuits". Electrical data Voltage supply DC 18 to 30 V SELV, PELV, Class 2 Current consumption IO-Link operation ≤... - Page 12 4 Technical data Relative pressure Measuring range Linearity Accuracy with Long-term Overload Burst stability capability pressure 20 °C -20 to +75 °C % MSP % MSP % MSP % MSP per year 0 to 0.4 0.15 0.40 1.00 ≤ 0.15 0 to 1 0.15 0.30...
-
Page 13: Outputs
4 Technical data Outputs 4.4.1 Analog output Current output Function Output of the process value, output of a signal for error messaging Signal range 4.0 to 20 mA Signal limits 3.4 to 22 mA Accuracy ±0.1 % of 16 mA Temperature influence 75 ppm/K Burden... -
Page 14: Interfaces
4 Technical data Interfaces 4.5.1 Bluetooth Function Transfer of configuration data and device information, display of process val- Communication Via end device with JUMO smartCONNECT app Authentication Via Bluetooth® radio module and NFC tag Connection status (configurable) Permanently Active Temporarily... -
Page 15: Environmental Influences
4 Technical data Environmental influences Admissible ambient temperature DIN 60068-2-1, DIN 60068-2-2 -25 to +75 °C Admissible medium temperature -25 to +100 °C (135 °C maximum 1 hour per day not in use) Admissible storage temperature -40 to +85 °C Climatic conditions DIN EN 60721-3-3 Climate class... -
Page 16: Process Connections
-10 to +140 °C DN 25/32/40 DIN 32676 Clamping socket (clamp) DN 50 16 bar -10 to +140 °C DIN 32676, 2" ISO 2852 JUMO PEKA 25 bar -10 to +200 °C Hygienic process connection 40 bar -10 to +100 °C... -
Page 17: Materials
4 Technical data 4.8.4 Materials Housing Top section of the housing PBT-GF30 Case bottom section 1.4301 (304), PBT-GF30 Threaded sleeve M12 x 1 1.4301 (304) Seal EPDM Display PMMA Process connection Without EHEDG certification 1.4571 (316Ti) With EHEDG certification 1.4404 (316L) Sensor Silicon Membrane... -
Page 18: Process Connections
4 Technical data 4.9.2 Process connections Not front-flush G 1/2 DIN EN 837 1/4" – 18 NPT DIN EN 837 30 Nm 20 Nm 1/4″ – 18 NPT 1/4″ – 18 NPT Ø 6 Ø 17.5 G 1/2 G 1/4 DIN EN 3852-11 G 1/2 DIN EN 3852-11 20 Nm 30 Nm... - Page 19 4 Technical data G 3/4 front-flush with double seal G 1 front-flush with double seal 25 Nm 25 Nm G 3/4 Sealing ring Sealing ring O-ring 26.7 × 1.78 O-ring 26.7 × 1.78 Taper socket with grooved union nut, DN 25 Taper socket with grooved union nut, DN 40 DIN 11851 DIN 11851...
- Page 20 Clamping socket (clamp) DN 25/32/40 Clamping socket (clamp) DN 50 DIN 32676 DIN 32676, 2" ISO 2852 Ø 64 Ø 50.5 JUMO PEKA Hygienic process connection Data sheet 409711 M28×1.5 Ø 36 O-ring 26 × 2.5 O-ring 21 × 2.5 FPM (not included in the scope of...
-
Page 21: Installation
Installation 5 Installation Preparing for installation 5.1.1 Installation site Requirements: • The device is suitable for use indoors and also outdoors when protected from the weather. • Observe the admissible environmental influences, see "Environmental influences ", Page 15. 5.1.2 Installation position The device can be installed in any position within systems and solutions. -
Page 22: Important Information For Usage According To Ehedg
Clamp connections DN 25, DN 32, DN 40, DN 50, DN 100 or 1“, 1 1/2“, 2 1/2“, 4“ with Tri-Clamp seal Combifit International B.V. • JUMO PEKA with FKM O-ring • VARINLINE® housing with process connection type N or type G with EPDM O-ring •... -
Page 23: Installing The Device
5 Installation Installing the device Example describes installation of the device version with a G 1/2 process connection DIN EN 837 in a pipe with port. Auxiliary equipment and tightening torques dependent on the selected process connec- tion, page 18. Auxiliary equipment Torque wrench with open-ended insert, wrench size 27 Requirements:... -
Page 24: Electrical Connection
Electrical connection 6 Electrical connection Connection elements Device (rear view) M12 plug connector 6.1.1 Terminal assignment M12 plug connection Designation Description Assignment IO-Link DC 24 V 1 BN (brown) I/O Pin 2 (DI/DQ) 2 WH (white) 3 BU (blue) I/O Pin 1 (C/Q) 4 BK (black) Device Connecting cable... -
Page 25: Connection Diagram
6 Electrical connection Connection diagram Requirements: • An unused current output is connected to GND. • An unused voltage output is open. 6.2.1 Analog outputs I/O Pin 2 can be configured as analog output. Current output – 4 to 20 mA +24 V ≤... - Page 26 6 Electrical connection Digital output – push-pull (example 2) +24 V I/O Pin 2 I/O Pin 1 ≤ 200 mA Device Connecting cable Digital output – NPN (n-switching) +24 V I/O Pin 2 I/O Pin 1 ≤ 200 mA Device Connecting cable Digital output –...
-
Page 27: Connecting The Device
6 Electrical connection Connecting the device Auxiliary equipment Torque wrench with socket wrench insert, wrench size 5 Material Connecting cable for plug connector M12 Requirements: • The system has been de-energized and secured against being switched on again. • The connections for the voltage supply and signal processing have been correctly prepared. •... -
Page 28: Operation
Operation 7 Operation Display elements 7.1.1 Startup display The start-up display shows all of the display segments and switches to the device info display after a few milliseconds. Orientation: 0° 7.1.2 Device info display Orientation: 0° Orientation: 180° Pos. Designation Description Device info display Shows the device status. -
Page 29: Process Display
7 Operation 7.1.3 Process display Orientation: 0° Orientation: 180° Pos. Designation Description Device status Indicates the device status based on the classification according Multicolored to NAMUR NE 107: • Steady green = Normal operation • Flashing green = Maintenance required (M) •... -
Page 30: Error Messages
7 Operation Toolbar Pos. Symbol, display Description Configuration: I/O pin 1 = Digital output (switching output) • Lights up when the output is active. Interface connection: IO-Link • Lights up when an IO-Link connection is active via I/O pin 1 but no communication is taking place. -
Page 31: Interfaces
7.3.1 Bluetooth The JUMO smartCONNECT app allows the device to be configured and its parameters to be set using an end device. Configuration data and device information are transmitted via Bluetooth. The Bluetooth radio module of the device is permanently active during initial startup. -
Page 32: Functional Descriptions
Functional descriptions 8 Functional descriptions Limit value monitoring function Parameter Value Default setting Description Function Inactive Inactive Inactive: Limit value switch inactive Single Point Single Point Mode: Hysteresis mode ("Switching point Mode SP1" and "Hysteresis") Windows Mode Windows Mode: Window mode ("Switching point SP1", "Release point SP2"... - Page 33 8 Functional descriptions (Δ ) Switch-on delay (SP2) Release point (Δ ) Switch-off delay Time (LVS) Limit value switch output signal Measured value (SP1) Switching point Hysteresis mode If the process value exceeds the switching point SP1, the output of the limit value switch becomes active. If the switching point SP1 reduced by the amount of the hysteresis is undershot again, the output of the limit value switch becomes inactive again.
- Page 34 8 Functional descriptions The hysteresis of the switching points is adjustable. (LVS) Limit value switch output signal Time ) High switching point Measured value ) Low switching point Two-point mode In two-point mode, two switching points are defined. If the process value exceeds the SP switching point, the limit value switch output becomes active.
-
Page 35: Configuration Via Bluetooth
Configuration via Bluetooth® 9 Configuration via Bluetooth® The parameter lists are based on the JUMO smartCONNECT app operating menu. The table headings locate the respective parameters in the app operating menu.. The default settings are shown in bold in the following tables. -
Page 36: Measurands
9 Configuration via Bluetooth® Measurands Pressure Parameter Value Description Offset Input range: Offset correction for zero point -999.00 to 999.00 (0.00) bar adjustment. Pressure > Simulation Parameter Value Description Value Input range: Input value for the simulation. -1.11 to 110.00 (0.00) bar Function Inactive, active Parameter function. -
Page 37: Analog Output
0 to 2 (1) be addressed by the teach func- tions. The teach functions are triggered by 2 buttons within the JUMO smartCONNECT app. With the teach functions, the current pro- cess value is adopted in the re- spective switching point (SP1, SP2). -
Page 38: Digital Output
9 Configuration via Bluetooth® Digital output Digital output 1 (2) Parameter Value Description Output signal – Inversion Off, On Inverts the output signal. Output signal type Push-pull, n-switching, p- Parameter function. switching Digital output 1 (2) > Output signal Parameter Value Description Process values... -
Page 39: Configuration Via Io-Link
10 Configuration via IO-Link... -
Page 40: Bluetooth
10 Configuration via IO-Link... -
Page 41: Limit Value Monitoring
10 Configuration via IO-Link... - Page 42 10 Configuration via IO-Link...
- Page 43 10 Configuration via IO-Link...
-
Page 44: Analog Output
10 Configuration via IO-Link... -
Page 45: Digital Output
10 Configuration via IO-Link... -
Page 46: Io-Link
10 Configuration via IO-Link... -
Page 47: Troubleshooting
Troubleshooting 11 Troubleshooting 11.1 Process value error Process value errors are displayed instead of the process value. Appearance Cause Remedy ---- The input value is invalid. The sensor is Contact the manufacturer. defective or communication to the sen- sor is impaired. There is an internal device error. -
Page 48: Error Messages
11 Troubleshooting... - Page 49 11 Troubleshooting...
-
Page 50: Maintenance And Cleaning
Maintenance and cleaning 12 Maintenance and cleaning 12.1 Maintenance The device is maintenance-free. 12.2 Cleaning device housing The device housing can be cleaned when the device has been installed. Clean the device with a cloth dampened with water. 12.3 Decontamination Use: •... -
Page 51: Shutdown
Shutdown 13 Shutdown 13.1 Uninstallation Requirements: • The plant has been de-pressurized, de-energized and secured against being switched on again. • The medium circulation of the plant is stopped. • The pipe is drained and rinsed. • The device has cooled down. •... -
Page 52: Accessories
Accessories 14 Accessories Without UL approval Designation Part no. Line socket, 4-pole, M12 × 1, straight, length 2 m 00404585 Line socket, 4-pole, M12 × 1, angled, length 2 m 00409334 IO-Link master, 1-channel (TMG Device Tool), including mini USB cable for use with Win- 00694070 dows®... -
Page 53: Open-Source Software
Insofar as the respectively applicable license terms justify a claim on the provision of source code or oth- er information, JUMO GmbH & Co. KG will provide the source code and the license texts on a conven- tional data carrier at the cost incurred for the provision of the data carrier. - Page 54 JUMO GmbH & Co. KG JUMO UKL TD JUMO Process Control, Inc. Street address: JUMO House 6724 Joy Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address: Phone:...
