JUMO TAROS S47 P Operating Manual

JUMO TAROS S47 P Operating Manual

Pressure transmitter

Advertisement

Quick Links

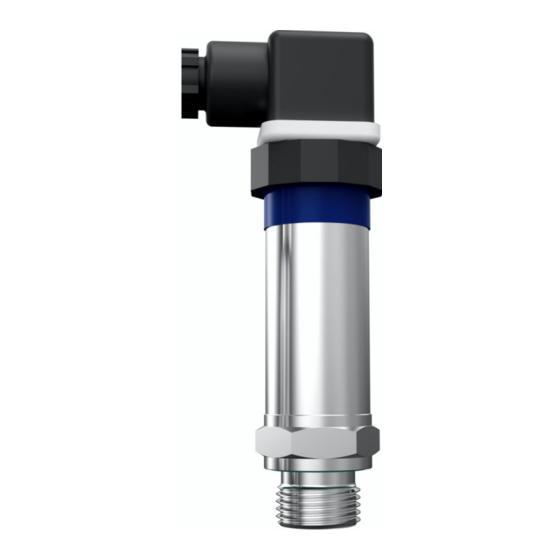

JUMO TAROS S47 P
Pressure transmitter
Operating Manual
40207200T90Z001K000
V1.00/EN/00740059/2020-12-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAROS S47 P and is the answer not in the manual?

Questions and answers

Summary of Contents for JUMO TAROS S47 P

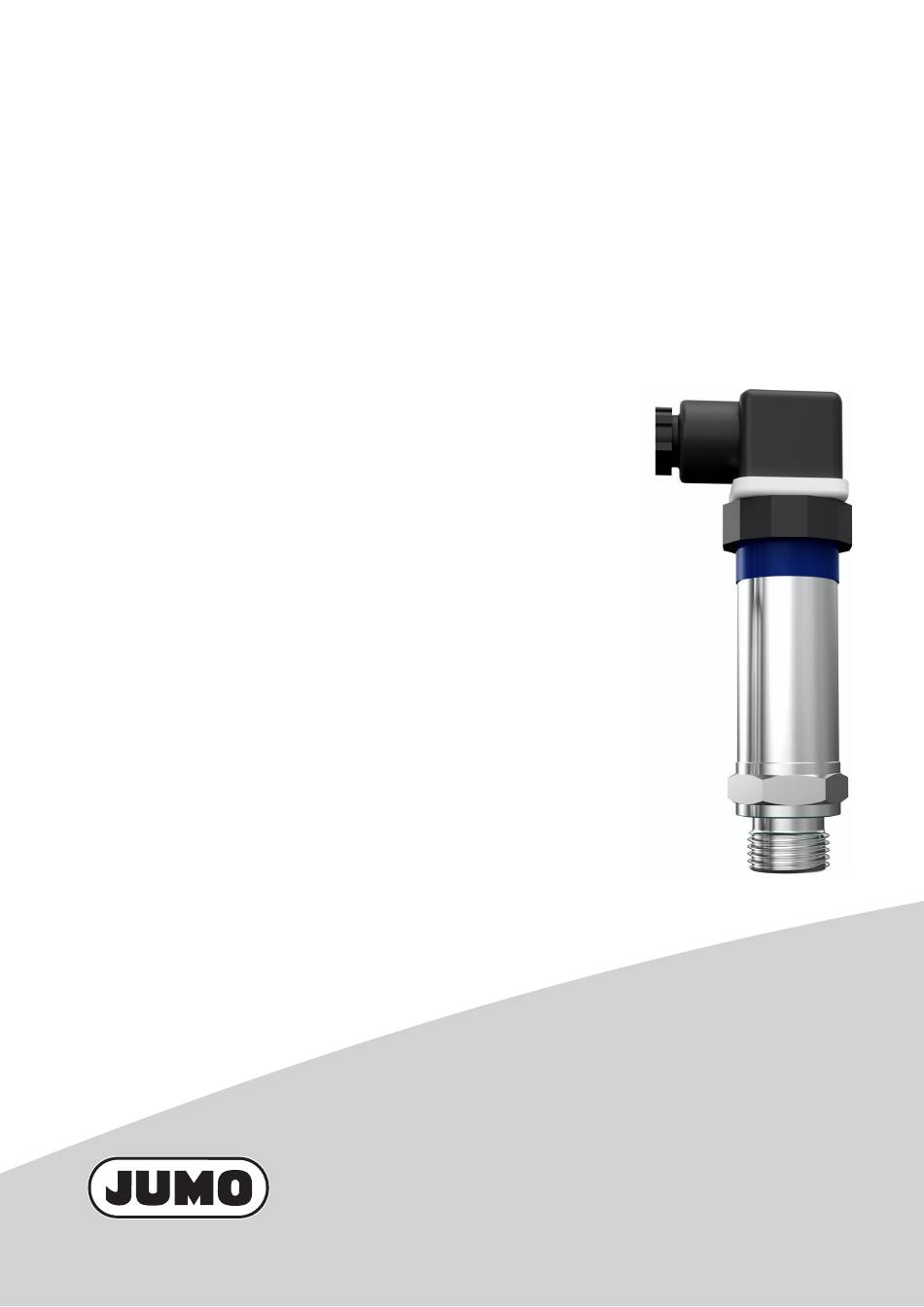

  • Page 1 JUMO TAROS S47 P Pressure transmitter Operating Manual 40207200T90Z001K000 V1.00/EN/00740059/2020-12-09...
  • Page 3: Table Of Contents

    Contents Contents Safety information..........4 Introduction .
  • Page 4: Safety Information

    Safety information 1 Safety information General This manual contains information that must be observed in the interest of your own safety and to avoid material damage. This information is supported by symbols which are used in this manual as indicated. Please read this manual before starting up the device.
  • Page 5: Introduction

    The pressure transmitter is used to acquire relative and absolute pressures in liquid and gaseous media. The JUMO TAROS S47 P with an analog output signal has a pressure measuring cell with a piezoresis- tive silicon sensor. The pressure is converted into an electrical current or voltage signal and output via various electrical connections.
  • Page 6: Identifying The Device Version

    Identifying the device version 3 Identifying the device version Nameplate Position The nameplate is laser-etched on the device surface. Contents The nameplate shows important information. This includes: Description Designation on the nameplate Example Device type Type 402072/000 Part no. 00123456 Measuring range 0 to 0.1 bar relative pressure Voltage supply...
  • Page 7: Order Details

    3 Identifying the device version Order details Basic type 402072 JUMO TAROS S47 P – pressure transmitter Basic type extension None Relative-pressure version without zero point adjustment Special version Input -1 to 0 bar relative pressure -1 to +0.6 bar relative pressure -1 to +1 bar relative pressure -1 to +1.5 bar relative pressure...
  • Page 8 3 Identifying the device version 0 to 40 bar absolute pressure Special measuring range for absolute pressure Special measuring range for relative pressure Output 4 to 20 mA, two-wire DC 0 to 10 V, three-wire DC 1 to 5 V, three-wire DC 1 to 6 V, three-wire Process connection G 1/4 DIN EN 837...
  • Page 9: Accessories

    3 Identifying the device version Order code Order example 402072 - 504 - Accessories Item Part no. Line socket, 4-pole, M12 × 1, straight, with 2-m PVC cable, without pressure compensation 00404585 Line socket, 4-pole, M12 × 1, angled, with 2-m PVC cable, without pressure compensation 00409334 Magnetic pin for simple adjustment of zero point 00736330...
  • Page 10: Mounting

    Mounting 4 Mounting General information NOTE! Check that the device is compatible with the measurement medium chapter 8.4 "Environmental in- fluences", Page 20. Mounting site • Ensure that the device is fastened safely and with low vibrations • Avoid direct sunlight •...
  • Page 11: Dimensions

    4 Mounting Dimensions 4.2.1 Transmitter with electrical connections Attached cable, length of 2 m (standard) Round plug M12 × 1 Line socket DIN EN 175301-803, form A Terminal head PA = process connection...
  • Page 12: Process Connections, Not Front-Flush

    4 Mounting 4.2.2 Process connections, not front-flush G 1/4 DIN EN 837 G 1/2 DIN EN 837 1/4-18 NPT DIN EN 837 1/2-14 NPT DIN EN 837 G 1/4 DIN 3852-11 G 1/2 DIN 3852-11 Profile sealing ring G 1/4 Profile sealing ring G 1/2...
  • Page 13: Process Connections, Front-Flush

    4 Mounting 7/16-20 UNF 4.2.3 Process connections, front-flush G 3/4 DIN EN ISO 228-1 G 1/2 with double seal G 3/4 with double seal G 1 with double seal Profile sealing ring G 3/4 O-ring 15.1 × 1.6 Profile sealing ring G 1/2 O-ring 20.35 ×...
  • Page 14: Electrical Connection

    Electrical connection 5 Electrical connection Installation notes NOTE! The electrical connection must only be performed by qualified personnel. The electromagnetic compatibility meets standard DIN EN 61326. Do not connect any additional loads to the voltage supply of the device. The device is not suitable for installation in potentially explosive areas. Connection diagram Connection Terminal assignment...
  • Page 15: Operation

    This actuates a magnetoresistive switch inside the device when approaching it. A suitable magnet is available from JUMO as an accessory (part no. 00736330). This provides a quick and simple way to correct zero point offsets caused by the installation or zero point offsets that have arisen following autoclaving, for example.
  • Page 16: Maintenance, Cleaning And Returns

    Note the protection type of the device. Returns NOTE! In case of abnormalities, please send the device to the manufacturer together with a completed cover note for product returns. You can download a blank copy of this cover note online at: http://produktruecksendung.jumo.info.
  • Page 17: Technical Data

    Technical data 8 Technical data Mechanical features Materials of parts coming into contact with the pressurized medium Membrane Stainless steel 1.4435 (316L) O-ring/sealing ring FPM, others available as an optional extra (e.g. EPDM, VMQ) Process connection Stainless steel 1.4571 (316Ti) Welding ring Stainless steel 1.4404 (316L) Materials of other parts...
  • Page 18 8 Technical data Measuring range Linearity Accuracy at Long- Overload Burst term capabili- pressure 20 °C -20 to -20 to stability +80 °C +100 °C % MSP % MSP % MSP % MSP % MSP per year 0 to 6 bar relative pressure 0.25 0.75 ≤...
  • Page 19: Electrical Data

    8 Technical data Electrical data Voltage supply Two-wire 4 to 20 mA DC 8 to 30 V, nominal voltage DC 24 V Three-wire DC 0 to 10 V DC 11.5 V to 30 V, nominal voltage DC 24 V DC 1 to 5 V DC 10 V to 30 V, nominal voltage DC 24 V DC 1 to 6 V DC 10 V to 30 V, nominal voltage DC 24 V...
  • Page 20: Environmental Influences

    8 Technical data Environmental influences Admissible temperatures Ambient temperature Medium temperature Storage temperature with MSP ≤ 0.4 bar -20 to +85 °C -20 °C to +125 °C -20 to +100 °C with MSP > 0.4 bar -40 to +85 °C -40 to +125 °C -40 to +100 °C MSP = measuring span...
  • Page 21: China Rohs

    China RoHS 9 China RoHS 3URGXFW JURXS  &KLQD ((3 +D]DUGRXV 6XEVWDQFHV ,QIRUPDWLRQ &RPSRQHQW 1DPH +J &G &U 9, 3%'( +RXVLQJ *HKlXVH 3URFHVV FRQQHFWLRQ 3UR]HVVDQVFKOXVV 1XWV 0XWWHU 6FUHZ 6FKUDXEH ^: d 7KLV WDEOH LV SUHSDUHG LQ DFFRUGDQFH ZLWK WKH SURYLVLRQV 6-7  *%7  ,QGLFDWH WKH KD]DUGRXV VXEVWDQFHV LQ DOO KRPRJHQHRXV PDWHULDOV¶...
  • Page 22 9 China RoHS...
  • Page 24 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address:...
