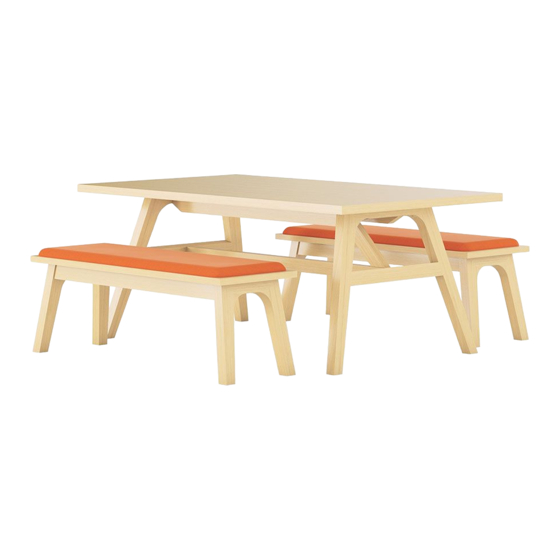

Riff table assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the Riff and is the answer not in the manual?

Questions and answers

Related Manuals for Ofs Riff

Summary of Contents for Ofs Riff

  • Page 1 Riff table assembly...
  • Page 2 Riff table assembly Table of contents Desk height table assembly Bar height and table tennis assembly 9-14 ofs.com imagine a place® 800.521.5381 Assembly instructions...
  • Page 3 Riff table assembly Riff desk height table components Component 2 Leg assembly 3 Center leg assembly 4 Support assembly 5 Cross rail-under 6 Cross rail-over 7 Brace 8 1000599/leveler 9 #8 x 2 ½" pan head screws (HK-101) 10 #8 x 2" pan head screws (HK-102) 11 #8 x 1 ½"...
  • Page 4 Riff table assembly Riff desk height table assembly Step 1 - Attaching bases Place worksurfaces, bottom side up, on a non-marring surface. Align notches and slide under top assemblies onto center base (96" long tops only). Connect end bases to under top assemblies by inserting tennons into mortises.
  • Page 5 Riff table assembly Riff desk height table assembly continued Step 2 - Attaching cross rails Fit cross rail angled tennons into mortise on bottom of base rail. Straight tennons fit on top and bottom of center base rail (96" long tops only).
  • Page 6 Riff table assembly Riff desk height table assembly continued Step 3 - Attaching braces Install braces by inserting tennon into mortise. • Insall Braces by inserting tennon into mortise Bottom edge of brace should rest flush on cross rail. •...
  • Page 7 Riff table assembly Riff desk height table assembly continued Step 4 - Attaching worksurface Turn base over and place in desired location. Make base level by adjusting levelers. Place worksurface on base and position so it is centered both directions with 1 1/2" gap •...
  • Page 8 Riff table assembly Riff desk height table assembly continued Step 5 - Attaching power Attach receptacle clips to inside face of under top assembly (refer to hole location • Attach receptacle clips to inside face of under top assembly, diagram below).
  • Page 9 Riff table assembly Riff bar height and table tennis table components - 72" and 84" long Note: Use 108" long components for table tennis assembly Component 2 Leg sssembly 3 Support assembly 4 Cross rail 5 Brace 6 1000599/leveler 7 #8 x 2 ½" pan head screws (HK-101) 8 #8 x 2"...
  • Page 10 Riff table assembly Riff bar height and table tennis table components - 96" and 108" long Note: Use 108" long components for table tennis assembly Component 2 Leg assembly 4 Support sssembly 5 Cross rail-under 6 Cross rail-over 7 Brace 8 1000599/leveler ESCRIPTION QTY.
  • Page 11 Riff table assembly Riff bar height and table tennis table assembly Step 1 - Attaching bases Place worksurfaces, bottom side up, on a non-marring surface. Riff Table Align notches and slide under top assemblies onto center base Assembly Instructions (96" long tops only).
  • Page 12 Riff table assembly Riff bar height and table tennis table assembly continued Step 2 - Attaching cross rails Fit cross rail angled tennons into mortise on bottom of base rail. Straight tennons fit on top and bottom of center base rail (96" long tops only).
  • Page 13 Riff table assembly Riff bar height and table tennis table assembly continued Riff Table Step 3 - Attching braces Assembly Instructions Install braces by inserting tennon into mortise. Bottom edge of brace should rest flush on cross rail. • Insall Braces by inserting tennon into mortise •...
  • Page 14 Riff table assembly Riff Table Riff bar height and table tennis table assembly continued Assembly Instructions Riff Table Step 4 - Attaching worksurface Assembly Instructions Turn base over and place in desired location. • Turn base over and place in desired location.
