Summary of Contents for Ofs Riff

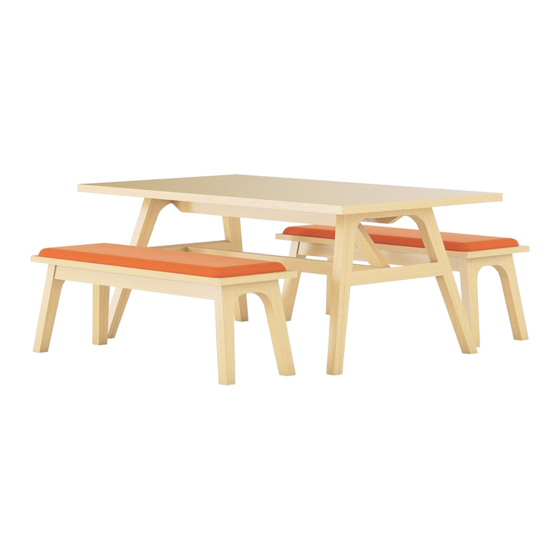

- Page 1 Riff cafe and dining assembly instructions...
- Page 2 Riff assembly instructions Riff table compoents 2 Leg Assembly 3 Center Leg Assembly 4 Support Assembly 5 Cross Rail-Under 6 Cross Rail-Over 7 Brace 8 1000599/Leveler 9 #8 x 2 ½" Pan Head Screws (HK-101) 10 #8 x 2" Pan Head Screws (HK-102) 11 #8 x 1 ½"...
- Page 3 Riff assembly instructions Step 1 Place worksurfaces, bottom side up, on a non-marring surface. Align notches and slide under top assemblies onto center base (96" long tops only). Connect end bases to under top assemblies by inserting tennons into mortises.
- Page 4 Riff assembly instructions Step 2 Fit Cross Rail Angled Tennons into Mortise on bottom of Base Rail. Straight Tennons fi t on top and bottom of Center Base Rail (96" long tops only). Secure Angled Tennons with #8 x 1 ½" Pan Head Screws (HK-103).
- Page 5 Riff assembly instructions Step 3 Install Braces by inserting Tennon into Mortise. Bottom edge of Brace should rest flush on Cross Rail. Cross Rail Mortise Brace Tennon Secure Brace to Mount Plate with Secure Brace to Cross Rail with #8 x 2" Pan Head Screws (HK-102).
- Page 6 Riff assembly instructions Step 4 Turn Base over and place in desired location. Make Base level by adjusting Levelers. Place Worksurface on Base and position so it is centered both directions with 1 1/2" gap between tops. 1 1/2" gap...
- Page 7 Riff assembly instructions Step 5 Attach Receptacle Clips to inside face of Under Top Assembly (refer to hole location diagram below). 5/16" Hex Head Bolts are packaged with Receptacle Clips. Snap assembled Whip (see diagram on page bottom) into Receptacle Clips.
