UM3457
User manual
Getting started with STEVAL-ROBKIT1
Introduction
The
STEVAL-ROBKIT1
is an evaluation kit which is a hardware and software package designed as a platform for the
development of robotic technology and its applications. This evaluation kit consists of a main board which houses the STM32H7
series MCU, integrates various functionalities, and controls the motor board and imaging board connected to the kit.
The robotics evaluation kit is designed in such a way that it can demonstrate the various robotics applications. This board is
designed with a vision of its reusage for an even higher robotics application platform that provides the scope of easy expansion
and customization due to its modular design. This robotics evaluation kit is useful for students, hobbyists, and professionals who
want to explore robotics, develop various algorithms, and understand how different components interact in a robotic system.

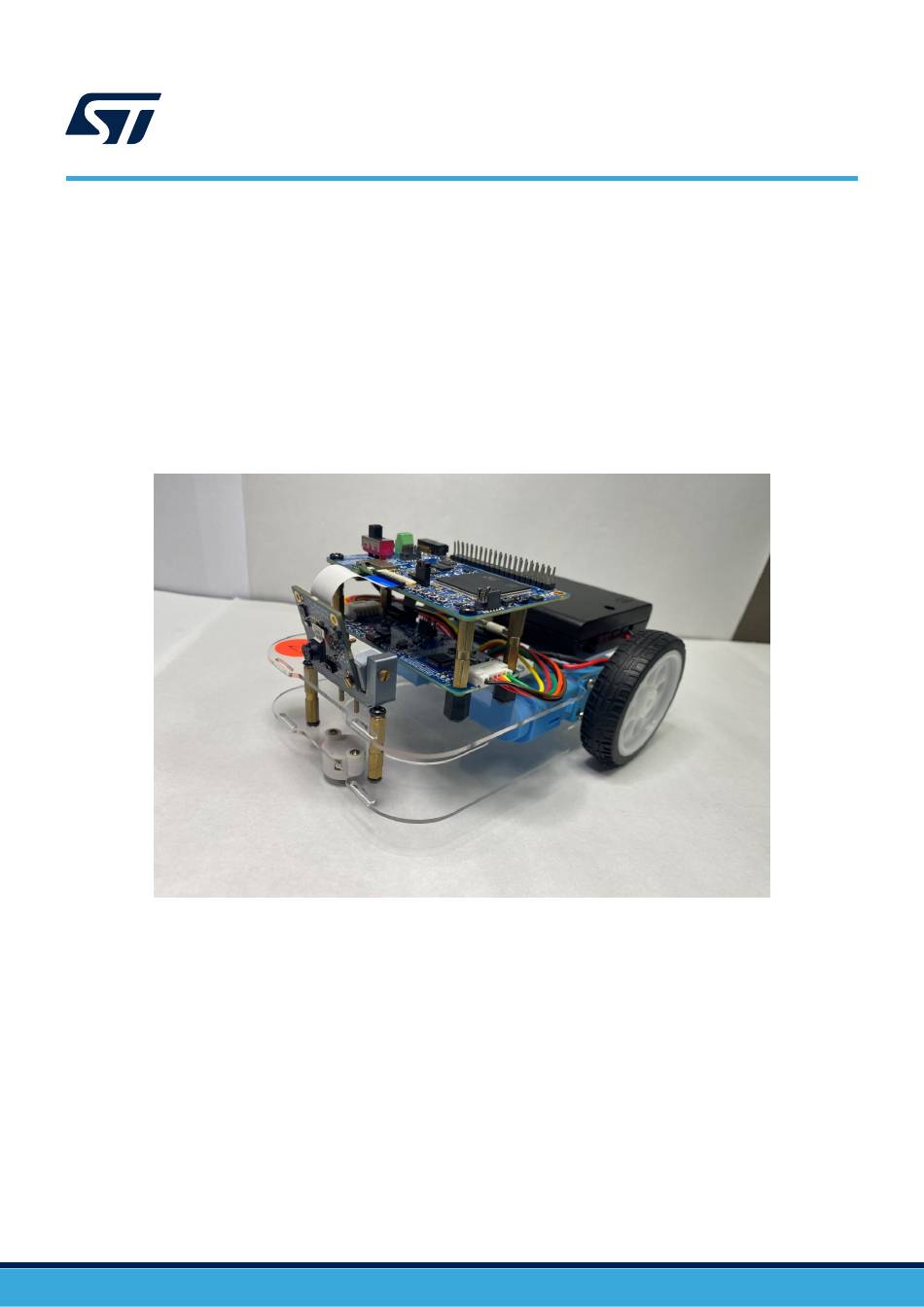

Figure 1.
STEVAL-ROBKIT1
Notice:
For dedicated assistance, submit a request through our online support portal at www.st.com/support.
UM3457 - Rev 1 - December 2024
www.st.com
For further information contact your local STMicroelectronics sales office.
