UM3086
User manual
Getting started with the STEVAL-AKI002V1 evaluation board for the ADC1283
analog-to-digital converter
Introduction
The
STEVAL-AKI002V1
evaluation board allows evaluating the conversion performance of the
ADC1283
eight-channel analog-
to-digital converter, which is designed for 50 ksps to 200 ksps conversion.
The board can accept external signals to measure and evaluate the
ADC1283
conversion performance, based on its successive
approximation register (SAR) with an internal track-and-hold cell.
A reference voltage is also present on the board that can be connected to one of the channels through a jumper.
The board can be supplied in standalone mode. It can also be connected to a
NUCLEO-L476RG
development board hosting an
STM32 microcontroller, which enables further signal processing and PC communication.
To monitor the
STEVAL-AKI002V1
performance, when connected to the NUCLEO-L476RG, you can use the
STSW-AKI
GUI.

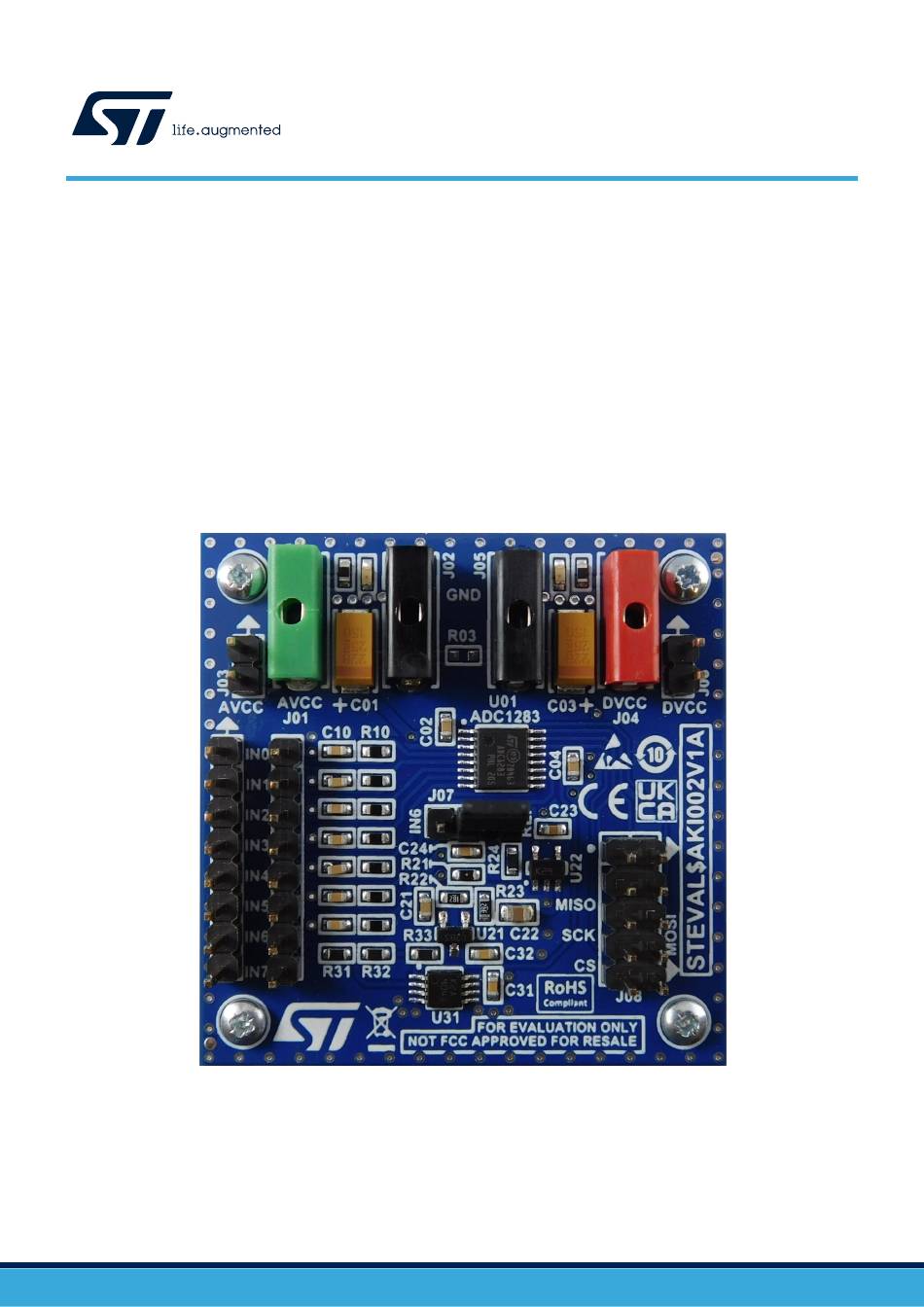

Figure 1.
STEVAL-AKI002V1 evaluation board
UM3086 - Rev 1 - March 2023
www.st.com
For further information contact your local STMicroelectronics sales office.
Advertisement
Table of Contents
Related Manuals for ST STEVAL-AKI002V1
Summary of Contents for ST STEVAL-AKI002V1
-
Page 1: Figure 1. Steval-Aki002V1 Evaluation Board
UM3086 User manual Getting started with the STEVAL-AKI002V1 evaluation board for the ADC1283 analog-to-digital converter Introduction STEVAL-AKI002V1 evaluation board allows evaluating the conversion performance of the ADC1283 eight-channel analog- to-digital converter, which is designed for 50 ksps to 200 ksps conversion. -
Page 2: Getting Started
UM3086 Getting started Getting started Features • Six direct inputs with RC filters (301 ohms/10 nF) • One input switchable between a direct input and a reference voltage, given by a TS3431 buffered by a TSX711 • One input with a rail-to-rail amplifier (TSV772 with a gain equals to -1) •... -
Page 3: How To Use The Board
UM3086 How to use the board How to use the board To use the board, follow the procedure below. Step 1. Connect the power generators to AVCC and DVCC connectors. The allowed voltages for AVCC and DVCC are 2.7 to 5.5 V. Figure 2. -
Page 4: Table 1. Pinout Connection Between The Steval-Aki002V1 And The Nucleo-L476Rg
GUI, refer to the table below for the connection between the STEVAL- AKI002V1 SPI pins and the NUCLEO-L476RG pins. Table 1. Pinout connection between the STEVAL-AKI002V1 and the NUCLEO-L476RG NUCLEO-L476RG pin STEVAL-AKI002V1 SPI pin PB12 Chip select PB13 SCLK PB14... -
Page 5: Communication With The Adc1283
GUI, go to the relevant ST web page. Figure 5. STSW-AKI: GUI for ADC120 and ADC1283 Option B: use the STEVAL-AKI002V1 directly with your test solution STEVAL-AKI002V1 can be plugged directly to your solution. The SPI communication to access to the... -
Page 6: Table 3. Control Register Bit Description
UM3086 Communication with the ADC1283 Table 3. Control register bit description Bit # Symbol Description 7, 6, 2, 1, 0 DONTC Don't care ADD2 ADD1 These bits determine which input channel is converted, as per Table 4 ADD0 Table 4. Input channel description ADD2 ADD1... -
Page 7: Vref Measurement And Inverter Amplifier
UM3086 VREF measurement and inverter amplifier measurement and inverter amplifier A) 1.8 V reference voltage on channel 6 STEVAL-AKI002V1 includes a reference voltage based on a TS3431 and buffered by a TSX711. This reference voltage can be measured on the channel IN6 by selecting “REF” on the J07 jumper. -
Page 8: Steval-Aki002V1 Versions
STEVAL-AKI002V1 versions PCB version Schematic diagrams Bill of materials STEVAL$AKI002V1A STEVAL$AKI002V1A schematic diagrams STEVAL$AKI002V1A bill of materials 1. This code identifies the STEVAL-AKI002V1 expansion board first version. It is printed on the board PCB. UM3086 - Rev 1 page 8/17... -
Page 9: Schematic Diagram
Schematic diagram Figure 8. STEVAL-AKI002V1 circuit schematic AVCC DVCC DVCC 49.9R AVCC COLOR RED COLOR GREEN 22µF 680R 100nF 100nF 680R 22µF DVCC AVCC C Case C Case COLOR BLACK COLOR BLACK SPI1_SCK SCLK SPI1_MOSI DOUT SPI1_CS INPUT 301R SIP 2X10 MALE... -
Page 10: Bill Of Materials
UM3086 Bill of materials Bill of materials Table 6. STEVAL-AKI002V1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code 22µF C case Tantalum C01, C03 KEMET T491C226M025AT 25V ±20% capacitors 100nF SMT Ceramic WURTH C02, C04, C21 885012206095 0603 50V ±10%... - Page 11 UM3086 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code 680R SMT 0603 R01, R102 Resistor PANASONIC ERJPA3F6800V 0.25W±1% NC SMT 0603 Resistor (not PANASONIC ERJPA3F49R9V ±1% mounted) R10, R11, R12, 301R SMT 0603 R13, R14, R15, Resistor PANASONIC ERJPA3F3010V 0.25W±1%...
-
Page 12: Regulatory Compliance Information
UM3086 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 13: Revision History
UM3086 Revision history Table 7. Document revision history Date Revision Changes 08-Mar-2023 Initial release. UM3086 - Rev 1 page 13/17... -
Page 14: Table Of Contents
STEVAL-AKI002V1 versions........ -
Page 15: List Of Tables
List of tables Table 1. Pinout connection between the STEVAL-AKI002V1 and the NUCLEO-L476RG ......4 Table 2. -
Page 16: List Of Figures
STEVAL-AKI002V1 evaluation board ........ - Page 17 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
