Eagle Group Snap-n-Slide SWS1236TR-16/4 Assembly Instructions

INSTRUCTION SHEET
#368038
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

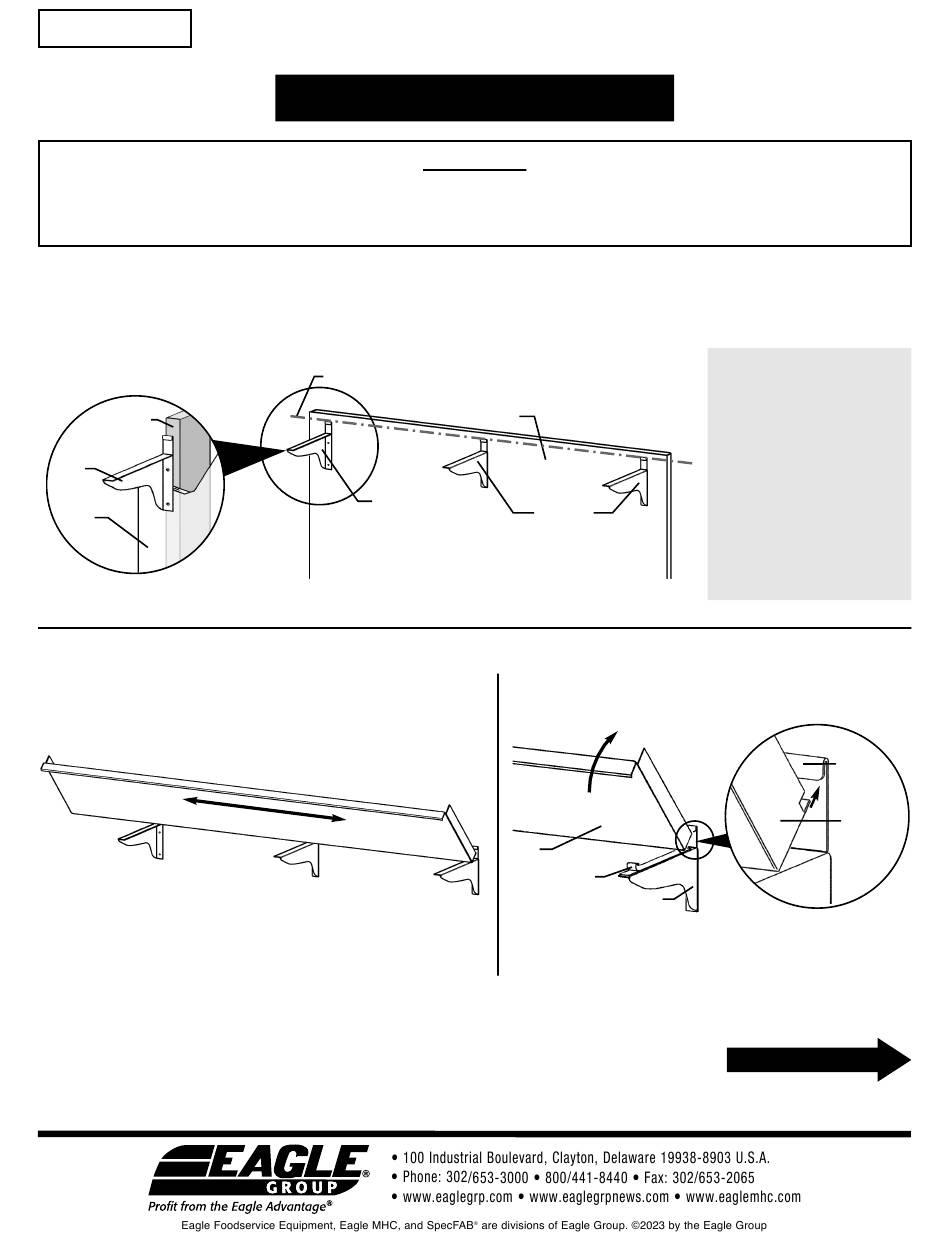

Step 1 - Mount brackets in relation to studs behind wall.
Brackets must be vertically level with each other. Using a laser level is highly recommended.
stud behind
wall
wall
bracket
wall
Step 2 -
Slide the wall shelf into desired placement.
In order for proper bonding of the tape adhesive, ensure the bottom of
the shelf is free of dirt, oil and other contaminants prior to installation.
Snap-n-Slide
with Ticket Rail
ASSEMBLY INSTRUCTIONS
CAUTION
level line
left-hand
wall bracket*
* Quantity of wall brackets varies with length of shelf.
® Wall Shelves
wall
right-hand
wall brackets*
Step 3 -
Hold shelf in place and peel off tape backing.
wall
shelf
tape
backing
wall
bracket
Rear upturn of wall shelf hooks under tab of each bracket.
CAUTION:
• Wall brackets must be
mounted in relation to
studs behind wall.
• Wall brackets must be
fastened securely prior to
mounting shelf.
• Eagle Group cannot be held
responsible for the failure
to use the appropriate
secure mounting method.
tab on
bracket
upturn
on wall
shelf
(continued on back page)
EG10089 Revised 10/23
