INSTRUCTION SHEET
#A221618
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
#4
#5

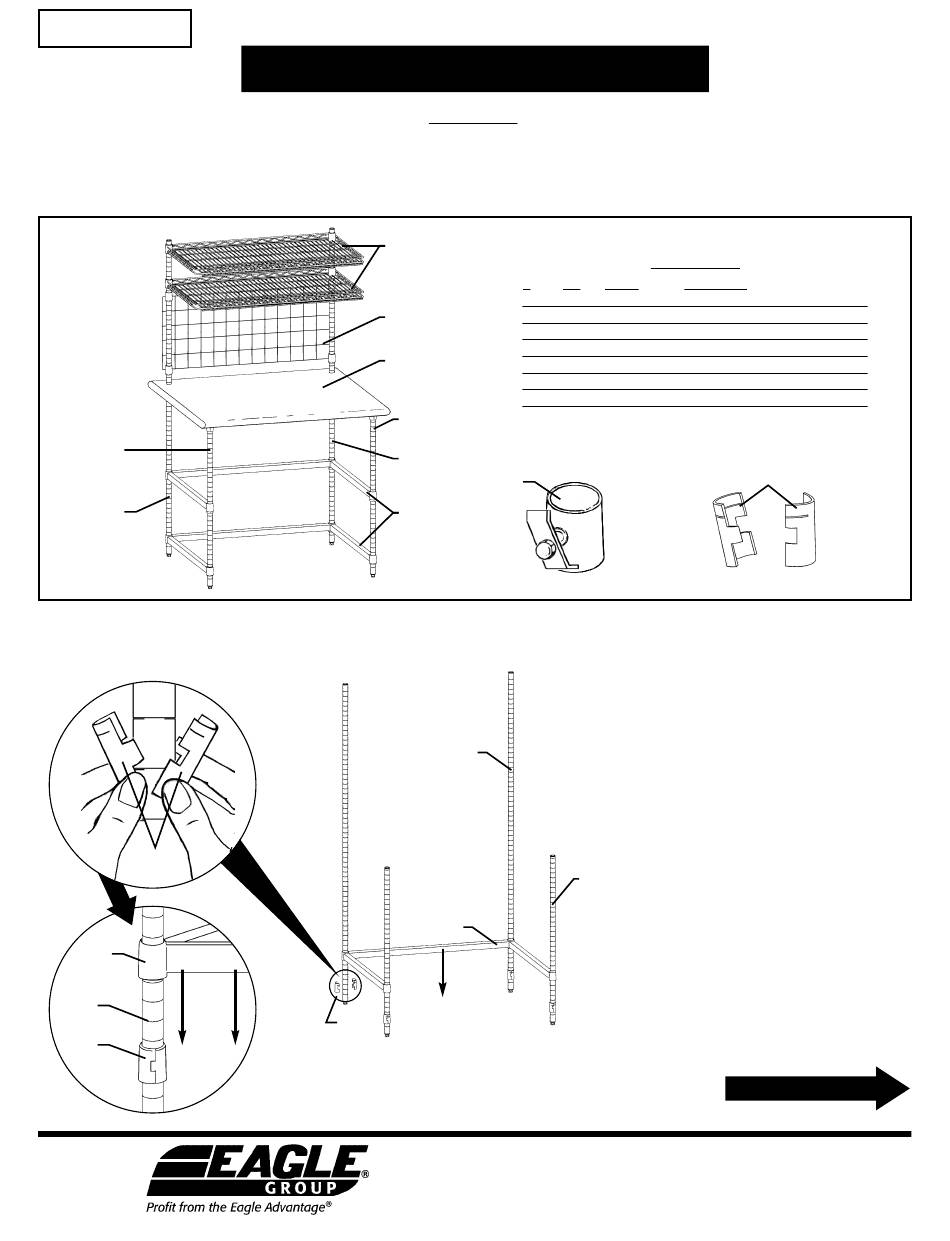

Step 1 - Attach bottom channel frame to posts.
Snap split sleeve onto each post at the #3 groove
(the wider part of the taper goes toward the bottom).
4
3
split
sleeves
channel
frame
post
split
sleeve
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
Modular Desks/Workstations
ASSEMBLY INSTRUCTIONS
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
#1
#2
#3
#4
#5
#6
channel frame
split
sleeve
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
CAUTION
#
qty
#1
2
#2
1
#3
1
#4
4
#5
4
#6
2
#7
4
#8
5
* Width and length vary per order.
#7
rear post
front
post
bottom
are divisions of Eagle Group. ©2022 by the Eagle Group
®
Parts List
part #
description
C201371
12˝ x 48˝ cantilevered shelves
*
grid panel
*
tabletop
P33-C
33˝ posts
P74-C
74˝ posts
*
three-sided channel frame
A210098
grid panel clamps
A200816
split sleeves (four per bag)
#8
Step 2 - Attach top channel frame
to posts.
Repeat Step 1, attaching split sleeve onto
each post at the desired groove.
(continued on Page 2)
EG10068
Revised 12/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD2448 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eagle Group MD2448

  • Page 1 • 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065 • www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com Eagle Foodservice Equipment, Eagle MHC, and SpecFAB are divisions of Eagle Group. ©2022 by the Eagle Group ®...
  • Page 2 Modular Desks/Workstations ASSEMBLY INSTRUCTIONS Step 3 - Attach tabletop. Snap split sleeve onto each post at the #33 groove. rear post tabletop split split tabletop sleeves sleeve gusset front post Step 4 - Attach grid panel clamps. • Snap split sleeves onto desired groove on rear posts. •...
  • Page 3 Modular Desks/Workstations ASSEMBLY INSTRUCTIONS Step 5 - Attach grid panel. rear post grid panel grid panel clamp (rear view) Step 6 - Attach cantilevered shelves. • Snap split sleeves onto desired groove on rear posts. • Lower bottom cantilevered shelf onto split sleeves. cantilevered shelf •...
  • Page 4 • 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065 • www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com Eagle Foodservice Equipment, Eagle MHC, and SpecFAB are divisions of Eagle Group. ©2022 by the Eagle Group ®...
