Eagle Group A201604 Assembly Instructions

Therapy cart

Advertisement

PART #A201604
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
#
qty
part #
#1
2
B200054
#2
2
B201032
#3
2
B201389
#4
1
B200692
#5
4
A200019
#2
• Do NOT install casters before installing shelves.
• "U" handles' legs must be straight and parallel for easy assembly. If they have been bent in shipping and handling, straighten them now.
• When installing racks and shelves, make sure the thicker part of the collars goes toward the bottom.
Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2007 by the Eagle Group

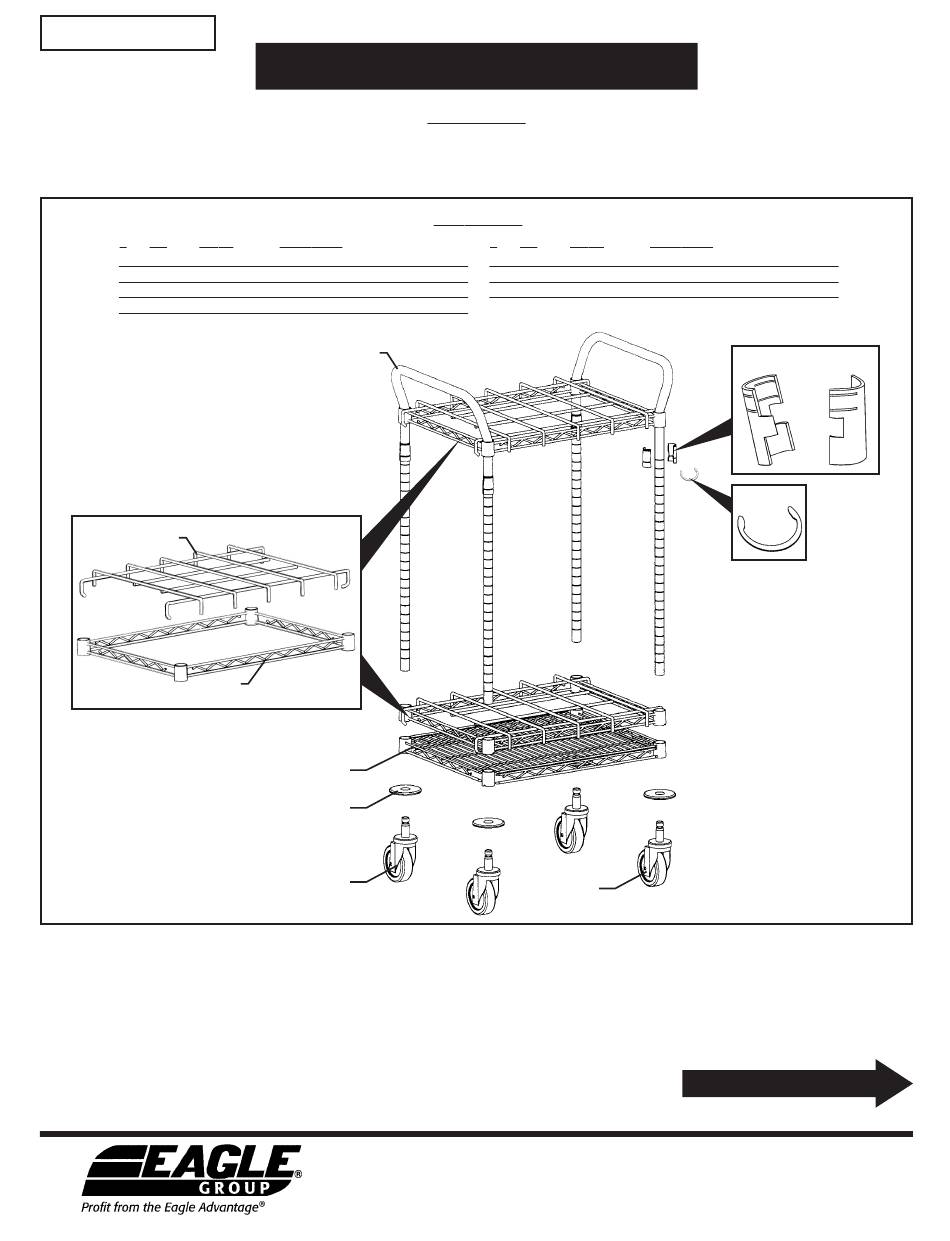

Inhalation Therapy Cart
ASSEMBLY INSTRUCTIONS
SAVE YOUR BOX AND ALL PACKING MATERIALS.
description
"U" handles/legs
cylinder rack matt
cylinder rack truss frame
wire shelf
donut bumpers
#1
#3
#4
#5
#6
Before assembly, please note:
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
CAUTION

Parts List

#
qty
part #
#6
4
A201162
#7
4
A201163
#8
12
A200022
#9
12
A200021
#7
description
casters
casters with brake
pairs of aluminum split sleeves
retaining rings
#8
#9
(continued on Page 2)
EG9821
Revised 01/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A201604 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eagle Group A201604

  • Page 1 • 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com • Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100 • Fax: 302/653-2065 Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2007 by the Eagle Group...
  • Page 2 Inhalation Therapy Cart ASSEMBLY INSTRUCTIONS Step 1 - Attach top cylinder rack truss frame to “U” handles/legs. • Slide cylinder rack truss frame toward top of the handles. • Attach aluminum split sleeves to top groove of “U” handles/legs. • Slide cylinder rack truss frame down onto split sleeves. “U”...
  • Page 3 Inhalation Therapy Cart ASSEMBLY INSTRUCTIONS Step 4 - Attach bottom cylinder rack truss frame to “U” handles/legs. • Snap aluminum split sleeves onto 4th groove of “U” handles/legs. • Slide cylinder rack truss frame down onto split sleeves. “U” handles/legs truss frame “U”...
  • Page 4 • 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com • Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100 • Fax: 302/653-2065 Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2007 by the Eagle Group...
