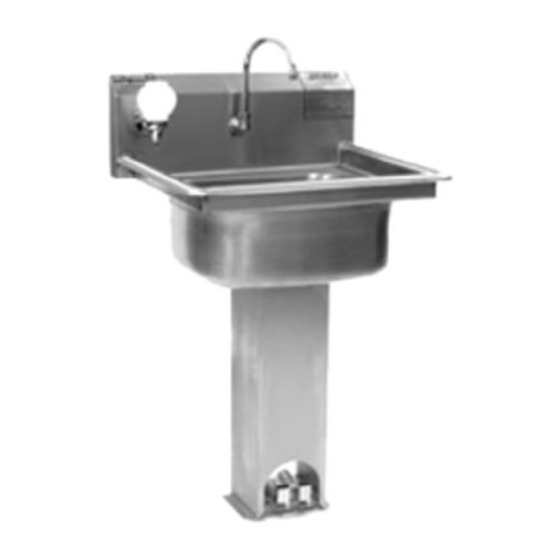

#P1916 Pedestal Mount Hand Sink
instruction sheet
#377240
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.

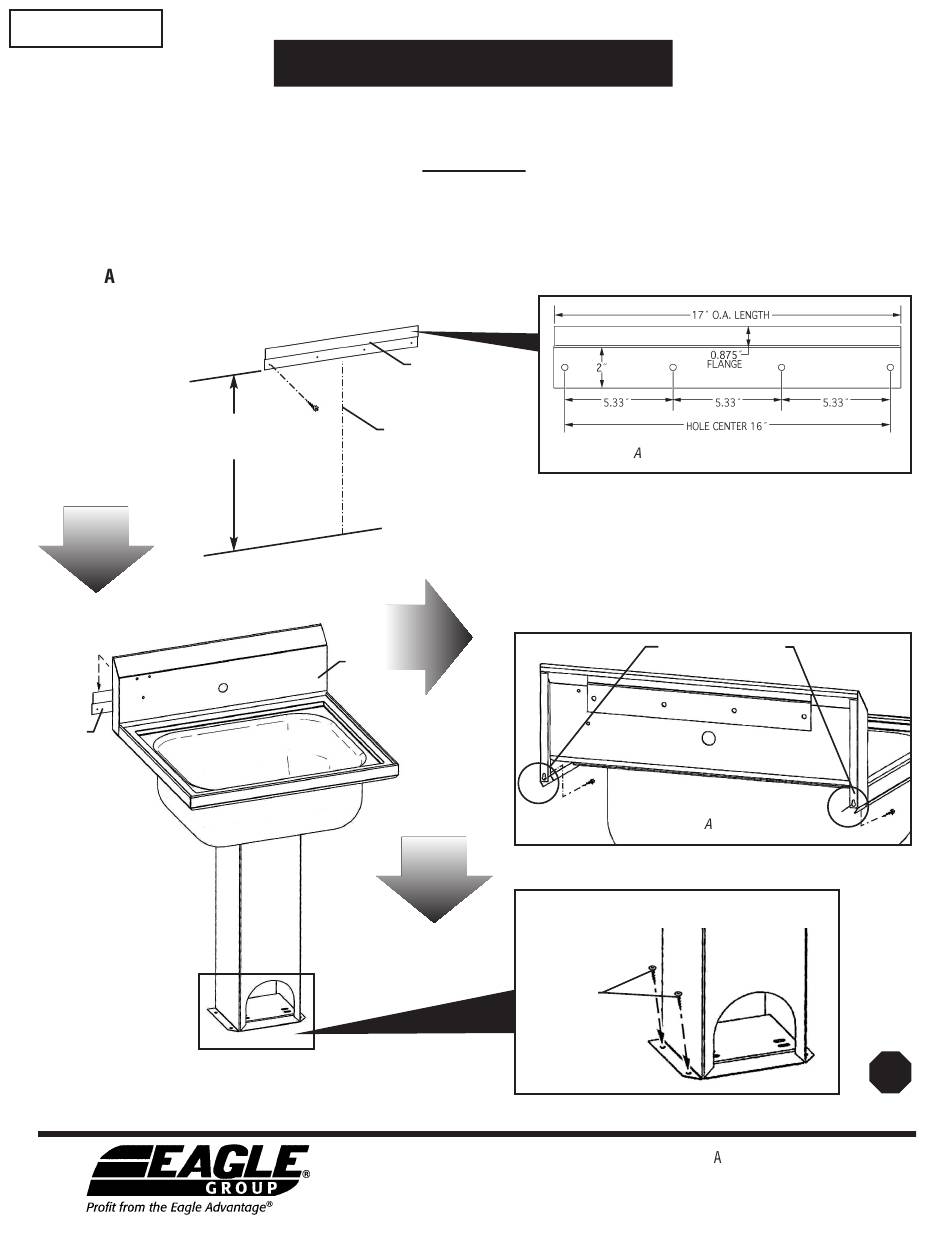

Step 1 - ttach z-bracket to wall.
• Mark a plumb line from the bottom of the
z-bracket at 36˝ above finished floor.
• Level z-bracket and
assemble to wall
(hardware not
included).
Note: Position z-bracket
so that the holes are
closer to floor, as shown.
Step 2 - Hang sink onto z-bracket.
z-bracket
eagle Foodservice equipment, eagle Mhc, specFAB
ASSEMBLY INSTRUCTIONS
For #W1916 Wall Mount Hand Sink, see reverse page.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
36˝ from floor
to bottom
of bracket
sink
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
CAUTION
z-bracket
plumb
line
Step 3 - Secure sink to wall.
Step 4 - Secure pedestal to floor.
mounting
hardware
(not included)
—2 of 4 shown
, and retail Display are divisions of eagle Group. ©2012 by the eagle Group
®
Z-BR CKET DIMENSIONS (FRONT VIEW)
1 keyhole per side, 2 total.
(RE R VIEW)
2 holes per side, 4 total.
eG9946
(End)
revised 06/12
