Eagle Group 313035 Assembly Instructions

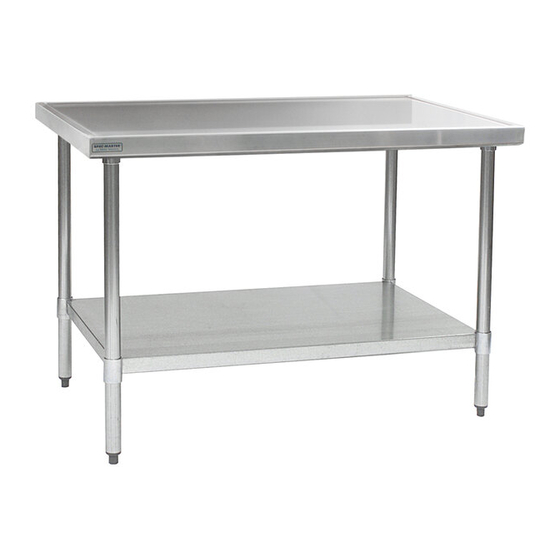

Stainless Steel Worktable with
PART #313035
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED I MPROPERLY PACKED.
plastic bag with brightly colored
"H RDW RE TT CHED" tape.

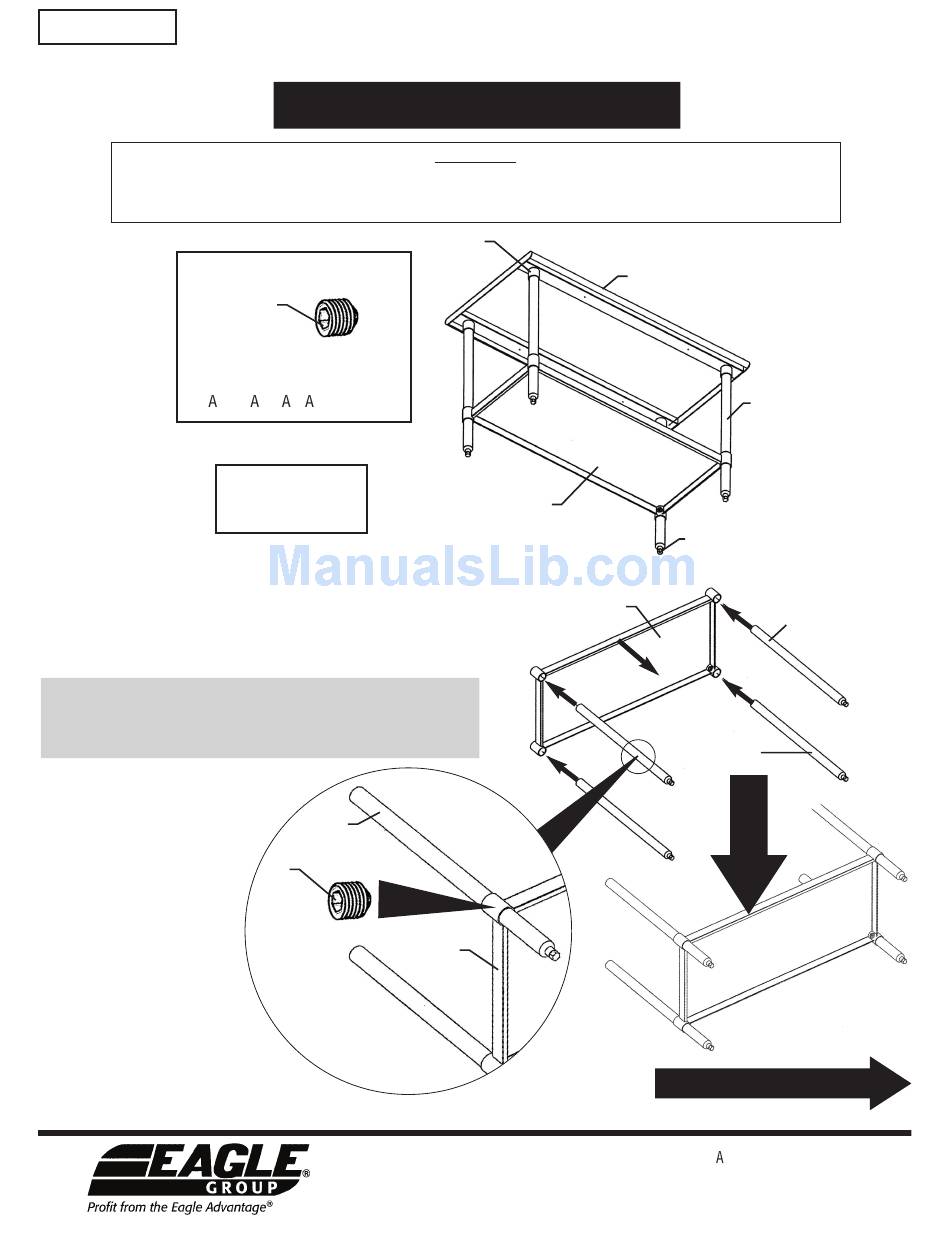

Step 1 - While on its side, mount undershelf to legs at
desired height. Seat one leg at a time.
• Secure legs to undershelf with set screw (using 5/32˝ allen wrench).
• Each leg must be at the same height or shelf collars could fail.
NOTE: Undershelf must be level. Use care not to overtighten
undershelf set screws or failure will occur. Recommended height
from the floor to the top of undershelf is 10˝.
Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2012 by the Eagle Group
Adjustable Undershelf
ASSEMBLY INSTRUCTIONS
SAVE YOUR BOX AND ALL PACKING MATERIALS.
Hardware:
set screw
Hardware is located in
Tool required:
• 5/32˝ allen wrench
leg
set
screw
• 100 Industrial Boulevard, Clayton, Delaware 19938-9905 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
CAUTION
gusset
undershelf
(UNDERSIDE VIEW)
undershelf
undershelf
tabletop
leg
adjustable foot
Mark desired height
on each leg with magic
marker or grease pencil
leg
undershelf joined with legs
(continued on next page)
EG9804 Revised 09/12
