RENPHO ACTIVE EVO R-WMG06 Manual

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING.

When using this device, the following basic precautions should be always followed:

1. The device is intended for household use only and not intended for medical use.
2. This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the device.

To reduce the risk of electric shock:

1. Do not attempt to retrieve the device if it falls into water.
2. Do not use while bathing or in a shower.
3. Do not use the device with wet hands.
4. Do not place or store the device in areas where it may fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

To reduce the risk of fire, electric shock, or injury to persons:

1. Please consult your doctor before using if you are a user of the following persons:
   1. Children under 8
   2. Pregnant women
   3. Persons with blood stasis
   4. Persons with fractures
   5. Persons with heart disease, a pacemaker, defibrillator, or metal contents in the body
   6. If you have experienced joint surgery within 90 days, do not use the device on your body within 3 inches of the surgical site.
      If you feel unwell or have any unusual discomfort, please stop using the device immediately.
2. Do not use the massage gun on
   1. Sensitive skin, swollen or inflamed areas, in areas where there is poor circulation, where skin eruptions are present, or in the area of unexplained abdominal pain
   2. Head, face, cervical vertebrae, body bones, varicose veins, tumor site, throat area, any possible fracture site, positions close to the bony areas: the humerus, the back of the foot, the back of the hand, etc
   3. Genital area (Do not use this device for sexual purposes. It is a powerful massaging device and may cause severe bodily harm.)
   4. Unconscious or sleeping persons
3. Do not operate under a blanket or pillow. Excessive heating may occur and cause fire, electric shock, or injury to persons.
4. Never operate the device with the air openings blocked. Keep the air openings free of lint, hair, etc.
5. Close supervision is necessary when this device is used by, on or near children, invalids, and disabled persons.
6. Use this device only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
7. Do not operate this device if it is not working properly, has been damaged, or dropped into water.
8. Do not drop or insert any object into any opening.
9. Do not operate in the areas where aerosol (spray) products are being used or where oxygen is being administered.
10. Do not keep the device near a magnetic field or in the areas where it can be affected by a magnetic field as it may cause batteries to discharge.
11. Avoid touching the gap between the massage head and body with your finger or hair to avoid pinching.
12. Keep the device away from heat and avoid using it in places where the surrounding temperature is relatively hot.
13. Do not drop, apply excessive force or heavy weight over the device to avoid malfunction and/or damage.
14. If a high temperature or foul odor occurs while using the device, stop using the device immediately.
15. Do not use the device in close proximity to long hair, loose clothing or jewelry.
16. Avoid applying excessive pressure on the massage head and refrain from massaging the same area continuously for an extended period of time.

About the Battery

1. Do not expose the device or battery to excessive temperatures.
2. Be aware of the risk of terminals of the battery-operated device or battery being short-circuited by metal objects.
3. This device contains batteries that are non-replaceable. When the battery is at end of life, the device shall be properly disposed of.
4. Do not dismantle, open or shred battery.
5. Do not subject cells or batteries to mechanical shock.
6. In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
7. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or product manual for proper charging instructions.
8. Do not leave a battery on prolonged charge when not in use.
9. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
10.
    The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not recharge, disassemble, heat above 100°C (212°F).

SAVE THESE INSTRUCTIONS

ABOUT THE PRODUCT

What's in the Box

1 X RENPHO ACTIVE EVO

5 X Massage Heads

1 X Travel Case

1 X USB-C Charging Cable

2 X Rubber Sleeve

Product Parameter

Product Name: Massage Gun

Model: R-WMG06

Input: 5V 2A

Battery Voltage: DC 14.8V

Speed: 1800-3000RPM

Amplitude: 8-12mm

Battery Capacity: 2600mAh 38.48Wh

Auto-off Timer: 10 minutes

Operating Time: 300 minutes

Dimension: 8.27 x 2.56 x 5.83in / 210 x 65 x 148mm

Weight: 1.98lb / 900g

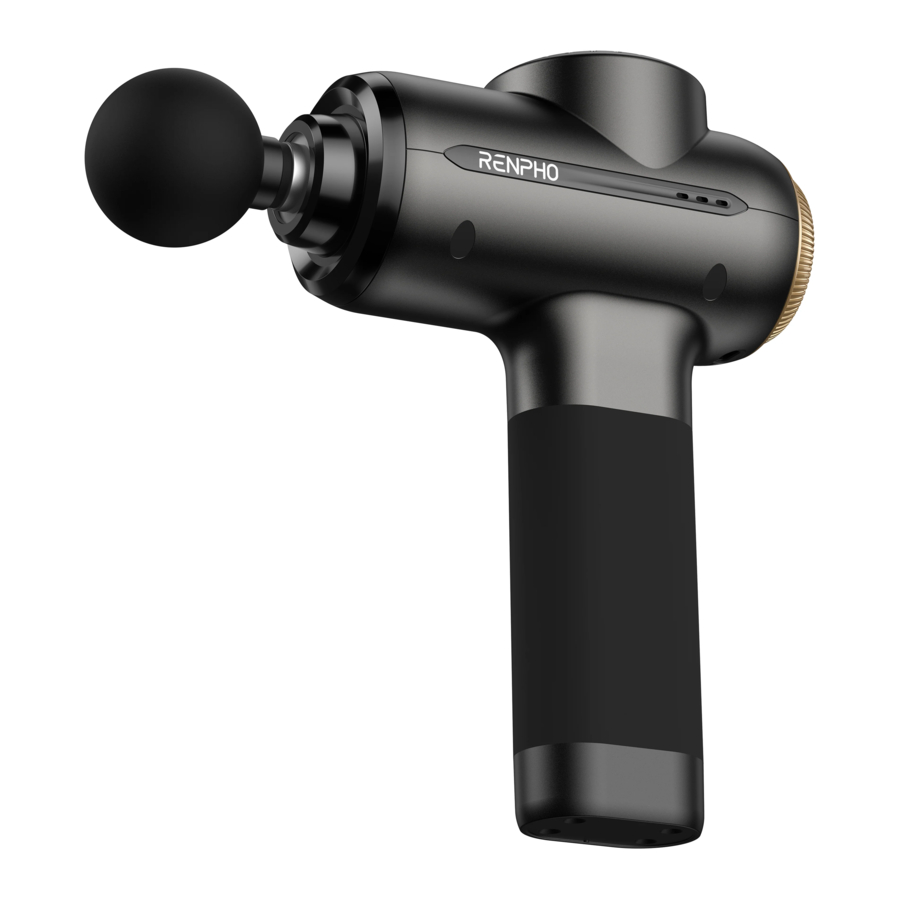

Product Overview

BEFORE USING

Charge the Device

* To ensure optimal performance, please fully charge the device before its first use.

1. Please charge the device using the provided USB-C charging cable and a DC 5V 2A charger (not included) when the battery indicator turns red.
2. It takes about 2.5 hours (fast charging) / 6 hours (standard charging) to fully charge the device. Once the charging process is complete, the battery indicator will turn green and the display reads 100%.

Note:

• For safety reasons, the device cannot be turned on while charging.
• The device runs on a single charge for 300 minutes (this varies according to the speed/amplitude level and pressure applied during use).

Select a Preferred Massage Head

EVA Ball Head

For quads, glutes, large muscle groups, and general areas of soreness.

U-Shaped Head

For the spine, neck and Achilles tendon.

Silicone Bullet Head

For deep tissues, trigger points, and small muscle groups.

Silicone Flat Head

For the shoulder blades and IT bands or for a relaxing full-body massage.

Silicone Wedge Head

For small areas of back, neck, and waist.

Rubber Sleeve

Each massage head is pre-installed with a rubber sleeve that ensures the massage head is securely attached to the massage gun. If it is damaged, replace it with a spare one.

Attach the massage head by screwing it fully into the slot of the device until it is securely attached. Ensure the device is turned off when installing the massage head.

USING THE PRODUCT

1. Press and hold the Power button for 2s to turn on the device. The display will show the current battery level and then "L0" (standby mode).

2. Scroll the Amplitude bezel to choose from 5 amplitudes (8/9/10/11/12mm). Once the amplitude is chosen, allow 2 seconds for the selection to take effect.
   The device will recall the last selected amplitude level when turned on.
3. Press the Power button again to cycle through speed levels: L1/L2/L3/L4/L5/L0 (RPM: 1800/2100/2400/2700/3000r/min).
4. To turn off the device, return to speed level 'L0' by adjusting the speed level or press and hold the Power button for 2 seconds, then press and hold it for another 2 seconds.

Built-in Timer:

1. The device will automatically enter standby mode after 10 minutes of operation. It is not recommended to use the device for more than 30 minutes at a time.
2. The device will automatically power off after 2 minutes of inactivity when set to speed level "L0".
3. When switched to level 'L0', the timer will reset automatically.

Tips:

1. Massage stiff muscles for up to 2 minutes to promote relaxation.
2. It is recommended to start with the lowest setting and gradually increase the speed as you adapt to the intensity.
3. Do not apply too much pressure on the device during your session, or the device will stall to prevent injury or bruising.

CLEANING AND MAINTENANCE

1. Place the device in a cool, dry place when not in use.
2. Always turn off the device before cleaning. Wipe with a soft cloth slightly dampened with non-abrasive cleaners. Keep away from all solvents and harsh detergents.
3. Do not attempt to disassemble or repair the device. The device does not contain user-serviceable parts.

TROUBLESHOOTING GUIDE

WARRANTY POLICY

Your RENPHO product purchase is covered by a one-year limited manufacturer warranty from the date of delivery. For warranty terms and conditions, please visit: https://renpho.com/pages/warranty-terms-and-conditions

Note: Product registration is not required for the warranty. If you choose not to register your product, it will not diminish the product warranty.

CUSTOMER SERVICE

Please feel free to contact us if you have any questions or concerns. RENPHO Customer Service Team guarantees a quick response and hassle-free solutions to any issue you may have within business hours.

TEL: +44(0)7434 666088 (UK ONLY)
Monday-Friday 9:00AM-5:00PM (GMT)
+1(844) 417 0149 (US&CA)
Monday-Friday 9:00AM-4:30PM
1800 MY RENPHO (1800 69 7367) (AU ONLY)
Monday-Friday 9:00AM-6:00PM (AEST)

Email: support-eu@renpho.com (UK&EU)
support@renpho.com (US&CA)
support-au@renpho.com (AU)

*For defective products or the return of items, please contact us with your order number within the specified warranty period. DO NOT dispose of any product parts as they may be required for inspection/repair.
