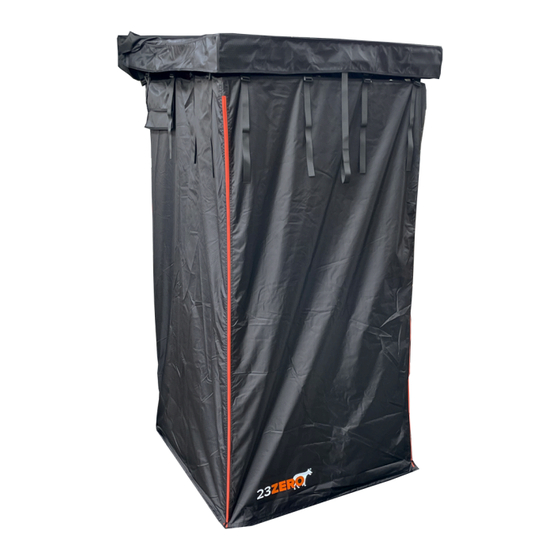

23zero RASK User Manual

Shower tent

Advertisement

Quick Links

TM
RASK SHOWER TENT
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the RASK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 23zero RASK

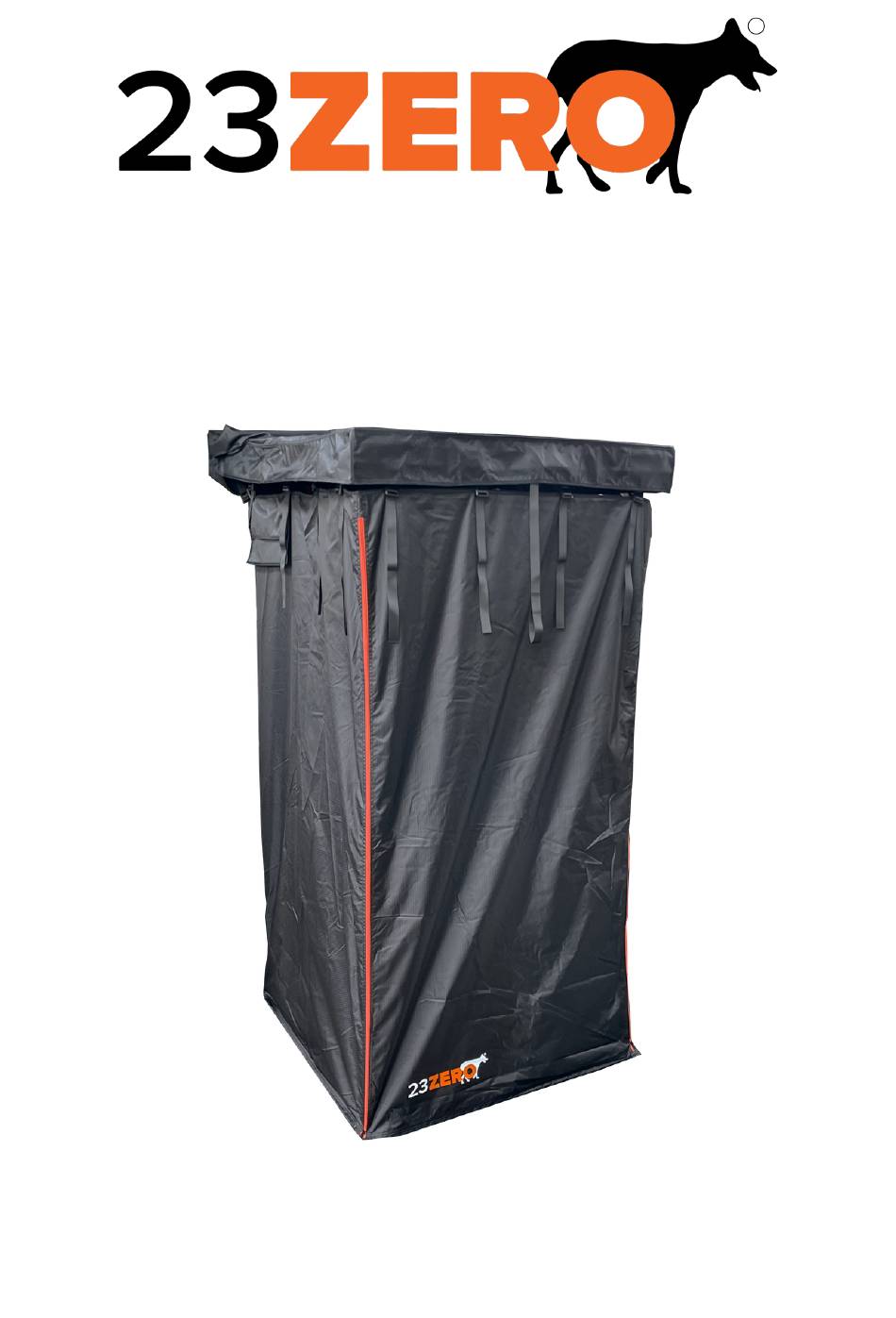

  • Page 1 RASK SHOWER TENT USER MANUAL...
  • Page 2 Please read these instructions carefully before installing the awning to your vehicle. Check all parts are included prior to first use. 23ZERO recommends using a qualified or experienced fitter to mount the RASK shower tent to your vehicle. Fasteners and all fixing connections including hinges bolts should be checked and inspected regularly to ensure the awning is fixed securely to your vehicle roof rack at all times.
  • Page 3 RASK SHOWER TENT USER MANUAL Fitting brackets to roof bars / roof rack RASK shower tent mounting brackets are suited to many roof rack designs, however, with the increasing number of new designs / models available from reputable brands, additional hardware may need to be obtained for correct secure fitment.
  • Page 4 RASK SHOWER TENT USER MANUAL Fitting RASK Shower Tent to brackets With rear of shower tent facing upward, insert 6 x M8 hex head bolts through the openings in the center of each channel. Position as required for the 2 x mounting brackets.
  • Page 5 Gently pull the shower tent frame towards you. This will engage the internal gas struts and the RASK will self-deploy. The floor can be unclipped from the LHS panel and folded onto the ground if required. Peg all 4 corners out using supplied pegs.
  • Page 6 Remove all pegs, towels and empty internal pockets. Re-attach folding floor to the LHS panel using supplied clips. To fold away the Rask, simulatenously pull the packdown strap towards you whilst pushing the Rask frame towards the baseplate. This will enable to self-deploying arms to fold away. Push shower tent frame inwards...
  • Page 7 RASK SHOWER TENT USER MANUAL Pack Up Ensure curtain is draping flat. Begin rolling curtain from the bottom up. Once fully rolled, lock curtain roll in place using the two velcro retaining straps. Zip up transit cover. Ensure that zipper does not catch on material when zipping up.
  • Page 8: Care And Safety

    STRUCTURAL The RASK SHOWER TENT has been designed for general use under normal conditions. Designed as a free standing awning for the purpose of easy set up, it...
  • Page 9: Warranty

    If you require additional assistance, please call 801-349-1099 to discuss and arrange your claim. Product subject to warranty will be sent to 23ZERO USA, 2195 S Presidents Dr. Ste B. West Valley City, UT 84120. All freight costs associated with return of product for assessment is payable by the customer.
