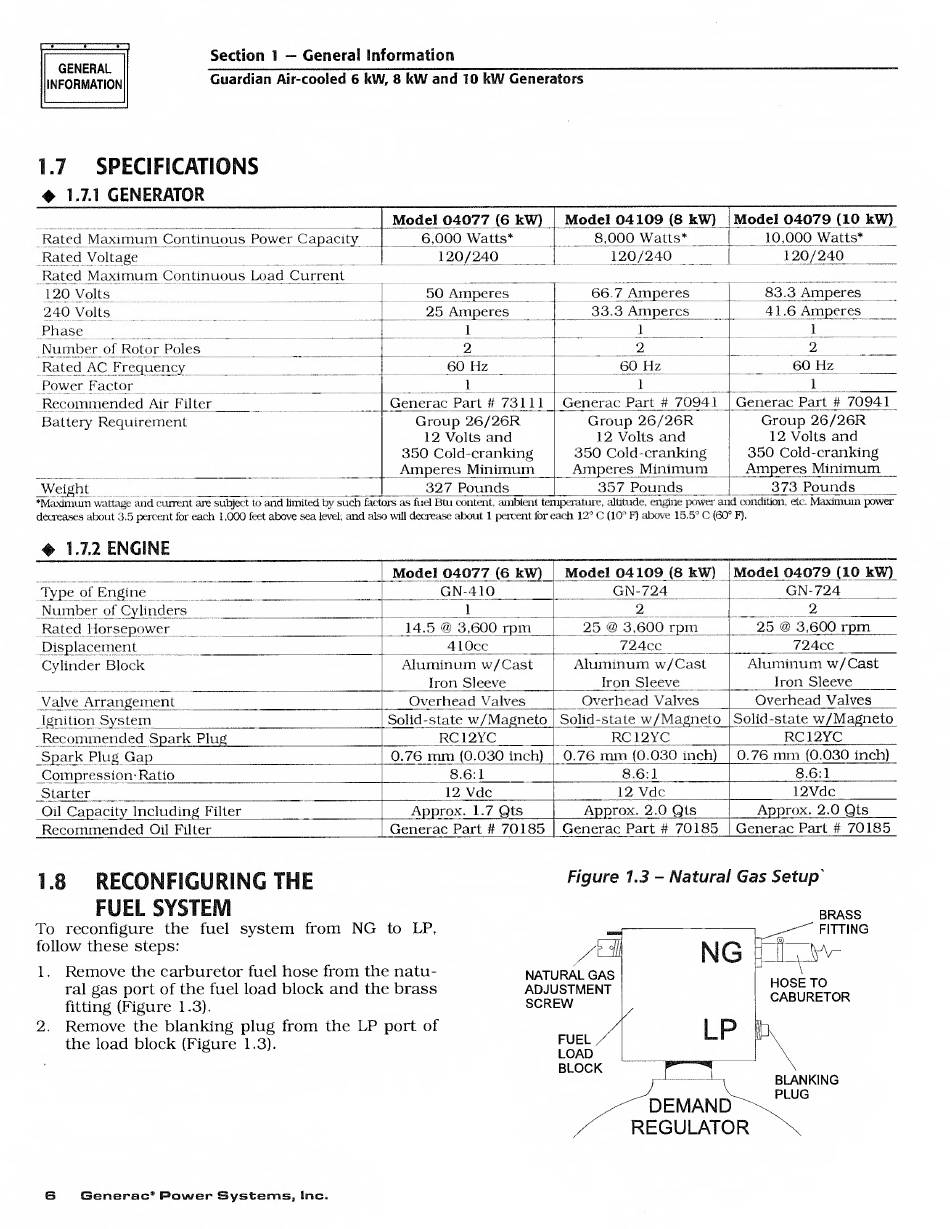

Section 1 — General Information
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators
1.7 SPECIFICATIONS
♦ 1.7.1 GENERATOR
Model 04077 (6 kW) Model 04109 (8 kW)
Model 04079 (10 kW)
Rated Maximum Continuous Power Capacity 6.000 Watts*
8,000 Watts* 10,000 Watts*
Rated Voltage 120/240
120/240 120/240
Rated Maximum Continuous Load Current
120 Volts 50 Amperes
66.7 Amperes 83.3 Amperes
240 Volts
25 Amperes
33.3 Amperes 41.6 Amperes
Phase
1 1
1
Number of Rotor Poles
2 2
2
Rated AC Frequency 60 Hz
60 Hz
60 Hz
Power Factor
1
1 1
Recommended Air Filter
Generac Part # 73111
Generac Part # 70941 Generac Part # 70941
Battery Requirement
Group 26/26R
12 Volts and
350 Cold-cranking
Amperes Minimum
Group 26/26R
12 Volts and
350 Cold-cranking
Amperes Minimum
Group 26/26R
12 Volts and
350 Cold-cranking
Amperes Minimum
Weight 327 Pounds
357 Pounds 373 Pounds
•Maximum wattage and current are subject to and limited by such factors as fuel Btu content, ambient temperature, altitude, engine power and condition, etc. Maximum power
decreases about 3.5 percent for each 1,000 feet above sea level; and also will decrease about 1 percent for each 12" C (10° F) above 15.5° C (60° F).
4- 1.7.2 ENGINE
Model 04077 (6 kW) Model 04109 (8 kW)
Model 04079 (10 kW)
Type of Engine
GN-410 GN-724
GN-724
Number of Cylinders
1 2 2
Rated Horsepower
14.5 @ 3,600 rpm 25 @ 3,600 rpm 25 @ 3,600 rpm
Displacement 41 Occ
724cc 724cc
Cylinder Block
Aluminum w/Cast
Iron Sleeve
Aluminum w/Cast
Iron Sleeve
Aluminum w/Cast
Iron Sleeve
Valve Arrangement
Overhead Valves Overhead Valves Overhead Valves
Ignition System
Solid-state w/Magneto
Solid-state w/Magneto Solid-state w/Magneto
Recommended Spark Plug
RC12YC RC12YC RC12YC
Spark Plug Gap 0.76 mm (0.030 inch)
0.76 mm (0.030 inch) 0.76 mm (0.030 inch)
Compression-Ratio
8.6:1 8.6:1
8.6:1
Starter
12 Vdc
12 Vdc 12Vdc
Oil Capacity Including Filter
Approx. 1.7 Qts Approx. 2.0 Qts
Approx. 2.0 Qts
Recommended Oil Filter
Generac Part #70185 Generac Part # 70185 Generac Part # 70185
1.8 RECONFIGURING THE
FUEL SYSTEM
To reconfigure the fuel system from NG to LP,
follow these steps:
1. Remove the carburetor fuel hose from the natu¬
ral gas port of the fuel load block and the brass
fitting (Figure 1.3).
2. Remove the blanking plug from the LP port of
the load block (Figure 1.3).
Figure 1.3
-
Natural Gas Setup'
BRASS
6
Generac' Power Systems, Inc.
