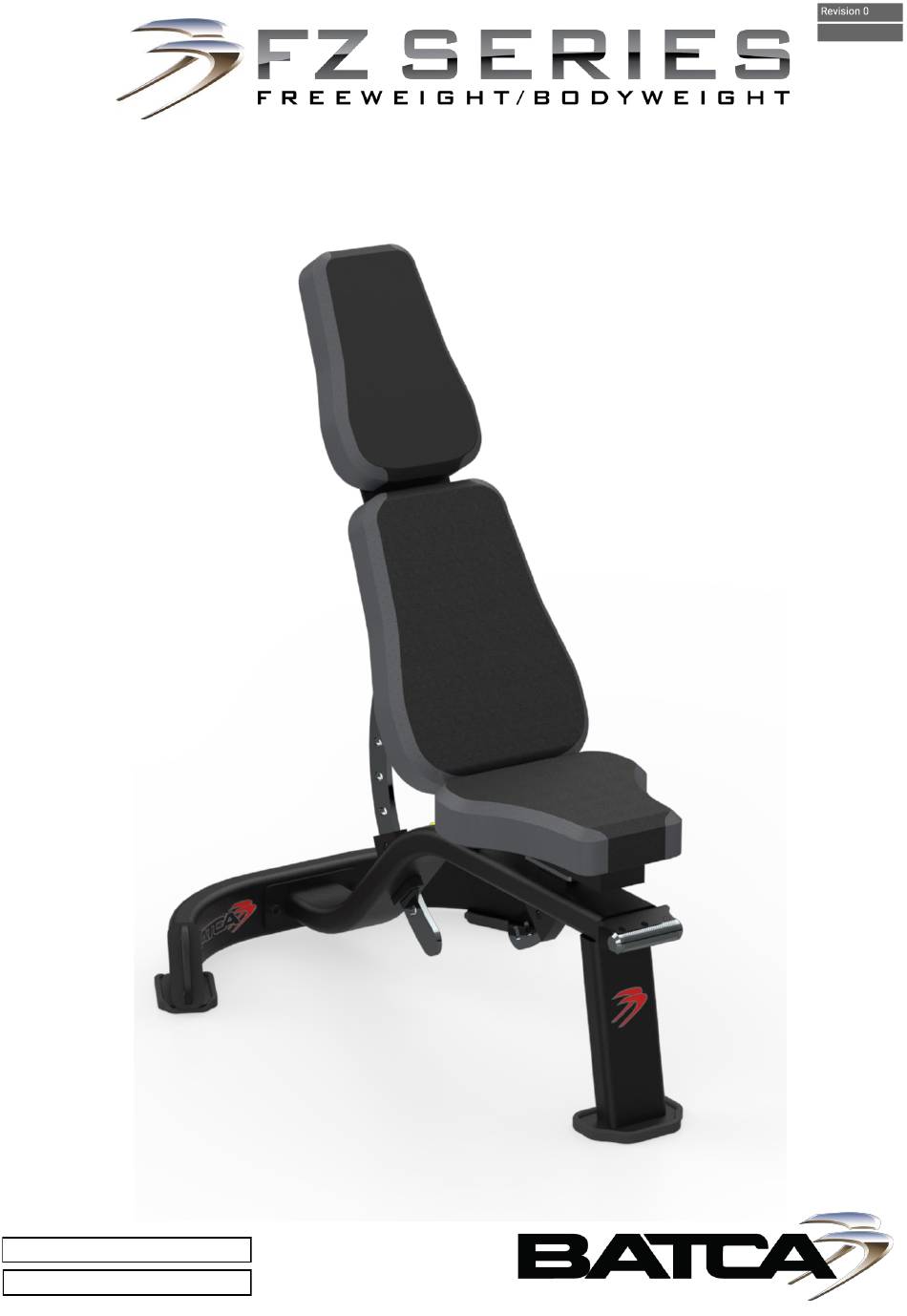

- Page 1 June 2024 FZ-6X Flat/Incline/Decline Bench Serial Number Here Date of Purchase www.batcafitness.com FZ-6X Owner's Manual...
- Page 2 Congratulations on the purchase of your new Batca FZ-6X F.I.D Bench. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
-
Page 3: Tools Required
Tools Required • 7/16” Wrench/Rachet • 9/16” Wrench/Ratchet 3/4” Wrench/Rachet • • Metric Allen Wrench Set (M10, M8, M6, M4) Hardware Blister Pack www.batcafitness.com FZ-6X Owner's Manual... - Page 4 F.I.D. Rear Base Frame BFP-51747 SHCS 3/8” x 3” BFM-11221 F.I.D. Large Cam BFH-50640 1/2” x 1 1/2” Shoulder Bolt BFM-11220 Small Cam BFH-50157 3/8” Nylock BFM-52812 Anti-Deflection Plate/Wheel Assembly BFH-50146 3/8” Flat Washer Batca Fitness Systems FZ-6X Owner's Manual...
- Page 5 Step 2: Note: Please Position Hardware in the same direction as shown in the figure. This will make future steps easier to assemble All Flat Washers and Nylocks are 3/8” unless otherwise noted. Please Tighten Bolts Part # Description BFP-52382 SHSCS 3/8”...
-
Page 6: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 7: Limited Lifetime Warranty
Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. -
Page 8: Layout Diagram
The FZ-6X has a layout dimension of 4”-1 1/2” (length) x 2’-4 1/2” (width) x 1’-6” (height) laying flat and 3’-11” (height) sitting up straight. There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems FZ-6X Owner's Manual...
