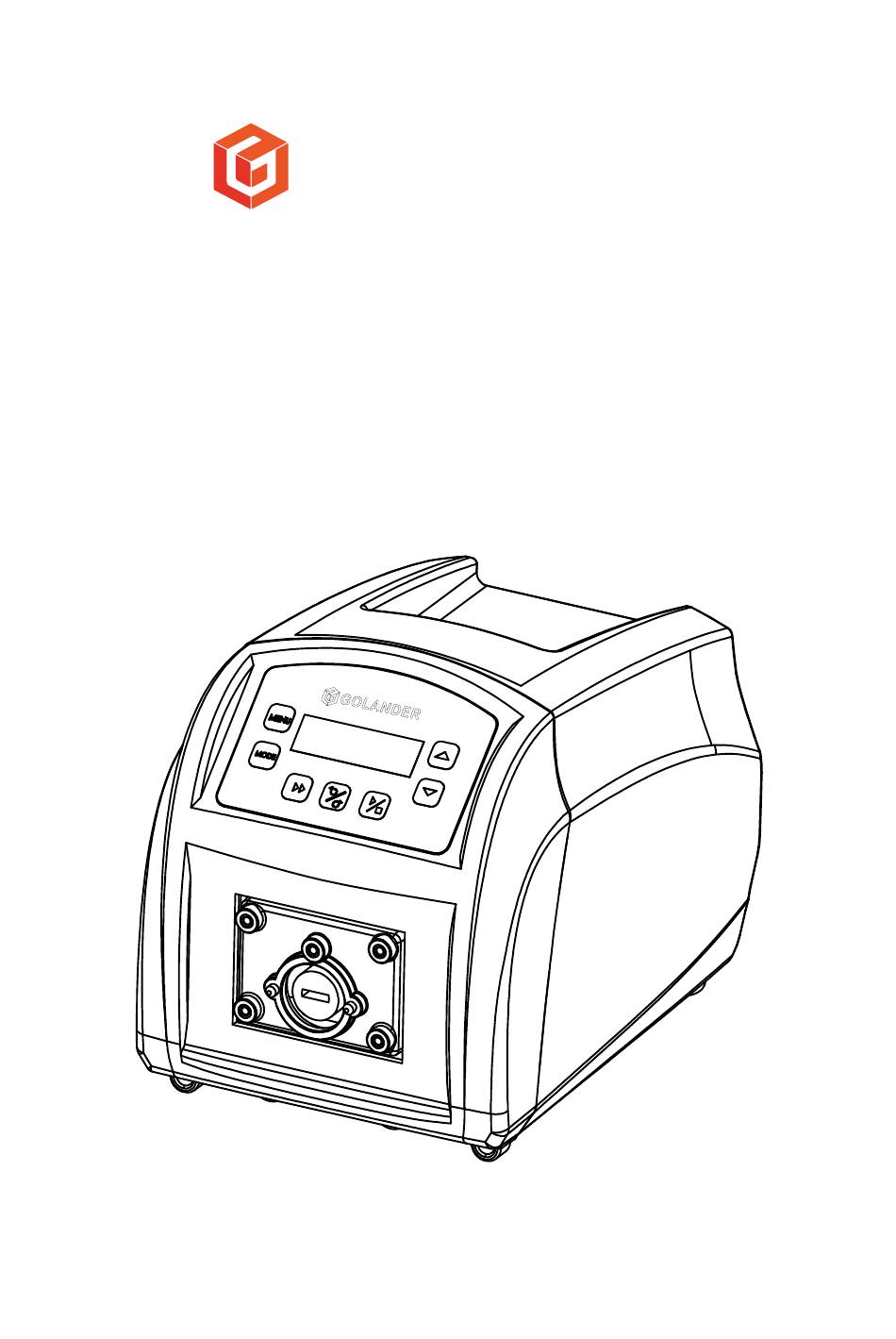

Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump Safety Precautions Danger • Use the correct voltage indicated on the rating plate label of the pump to avoid any damage. • Do not make any unauthorized dismantling, changes, or modifications to the pump which could result in malfunctions or even potential accidents.
Page 4
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump (DE) SICHERHEITSHINWEISE Gefahr • Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe angegeben ist, um Schäden zu vermeiden. • Nehmen keine unbefugten Demontagen, Änderungen oder Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
Page 5
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump (,FR) CONSIGNES DE SÉCURITÉ Danger • Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe afin d'éviter tout dommage. • Ne procédez pas à des démontages, changements ou modifications non autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des...
Page 6
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump (ES) INSTRUCCIONES DE SEGURIDAD Peligro • bomba Utilice la tensión correcta indicada en la placa de características de la para evitar daños. • No realice ningún desmontaje, cambio o modificación no autorizada en la bomba que pueda provocar un mal funcionamiento o incluso accidentes.
Page 7
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump (IT) ISTRUZIONI DI SICUREZZA Pericolo • corretta Usare la tensione indicata sull'etichetta della targhetta della pompa per evitare qualsiasi danno. • Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 1 Description The latest iteration of the BT-S series of peristaltic pumps showcases a new high-speed processor, resulting in a substantial enhancement of computing speed and storage capacity. Beyond fundamental functionalities like start/stop, reversible direction, and adjustable speed, it introduces advanced features such as Time Dispensing and slow stop for precise liquid transfer operations.
Page 9
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump • An external logic level signal can control start/stop, direction, and dispense functions; an external analog signal can adjust the rotating speed. The signal is optically isolated. • Allows switching between voltage and current external speed control.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 4 Display Panel and Operating Keypads LCD Display UP Key MENU Key MENU 32.5rpm MODE Key DOWN Key MODE PRIME Key DIRECTION Key START/STOP Figure 2. Display Panel 4.1 Keypad UP Key. When pressed shortly, the last digit of the value will increase by 1.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 4.2 LCD Screen Display 32.5rpm Figure 3. Display screen A. Control Mode It displays the current control mode. Press the MODE key to switch between the following control modes: • Int (Internal Control Mode): Use the keypad to operate the pump. Use an optional external pulse signal to control the start and stop.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump C. Direction Clockwise Counterclockwise D. Key Tone Tone on Tone off E. Keypad Lock Keypad unlocked Keypad locked When the keypad is locked, only the START/STOP key will work. In the main screen, press and hold the DIRECTION key to lock the keypad; press and hold the START/STOP key to unlock the keypad.
Page 14
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump DOWN key to adjust the value. Press the START/STOP key to confirm and back to the setting menu screen. To return to the main screen, press and hold the MENU key or press the MENU key a few times until it goes back to the main screen.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 1. Run Time Unit: Time unit for the dispense duration in Time Dispense mode, configurable in days, hours, minutes, or seconds. 2. Dispense Time: It is the dispense duration for each dose in Time Dispense mode, adjustable within the range of 0.1 to 999...
Page 16
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump keys for advanced parameter selection, press the START/STOP key to enter the submenu, and press the UP or DOWN key to adjust the parameters. To return to the previous menu, press the START/STOP key. To return to the main interface, press the MENU key.
Page 17
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 1. Baud: In communication mode, set the baud rate to 4800, 9600, 19200, 38400 (default is 9600). 2. Stop Bit: In communication mode, specify the stop bit size, options are 1 or 2 (default is 1).
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 7 External Control Interface DB15 Mark Note ADC_W Positive of external analog input Communication interface, B pole of Communication interface, A pole of VCC_W External voltage input terminal CW_W External input signal to control the...
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 5) Ensure the tubing is correctly installed and secured in the pump head before starting the pump. Inspect the tubing for any cracks or defects before operation. 6) Connect any required external devices, such as a footswitch or analog input signal, before powering on the pump.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump MODE lev2 32.5rpm 32.5rpm MODE MODE Ext V lev1 32.5rpm 32.5rpm MODE MODE Time 32.5rpm Figure 6. Change Working Mode 8.5 Internal Control Mode Use the keypad to operate the pump. Use an optional external pulse signal to control the start/stop.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 8.6 External Control Mode In this mode, use an external logic level signal to control direction, start, and stop; use an external analog signal to control rotation speed. The keypad is disabled. ExtV Extl 0.0rpm...
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump CW_W ADC_W AGND RS_W 0-5V/0-10V /4-20mA Figure 10. DB15 Wiring with the Internal 12VDC Power Source 2) Turn on the power. The pump will display the main screen. 3) Press the MODE key to change the mode to External Control mode (“Ext V”...
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump Set the Time Dispense Mode 1) Turn on the power. The pump will display the main screen. 2) Press the MODE key to change the mode to Time Dispense mode (“Disp” shown on the screen).
Page 24
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump lev1 32.5rpm Figure 15. Logic Level 1 Control Mode 1) Turn off the power. Wire the DB15 connector as shown in Figure 14 or Figure 15, and connect it to the DB15 port on the rear of the pump.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 4) Press the DIRECTION key to change the rotating direction. 5) When the switch is closed, the pump will start running; when the switch is open, the pump will stop. Note: Use this mode to work with a TIME CONTROLLER.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump CW_W RS_W VCC_W 5V/12V/24V DC Figure 20. Logic Level 2 Control with External Power Source 2) Turn on the power switch. The pump will display the main screen. 3) Press the MODE key to change the mode to Logic Level 2 control mode (“Lev2”...
Page 27
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 1) When the power is off, wire the DB15 connector as shown in Figure 20 or Figure 21, then connect it to the DB15 port on the rear of the pump. An external DC power source is recommended to avoid electrical interference.
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump 9 Maintenance 9.1 Warranty The product comes with a three-year labor and parts warranty. The limited warranty does not cover any damage that is caused by improper usage and handling. 9.2 Regular Maintenance 1) Regularly check the tubing and connections to avoid leakage.
Page 29
Golander BT101S/301S/601S (V3) Variable-Speed Peristaltic Pump Hardware Motor only Check the connection between the drive runs in one board and the main control board. direction Hardware The keypad 1. Check the wire connection between does not the keypad and the mainboard.
