Golander pump BT100F Operating Manual

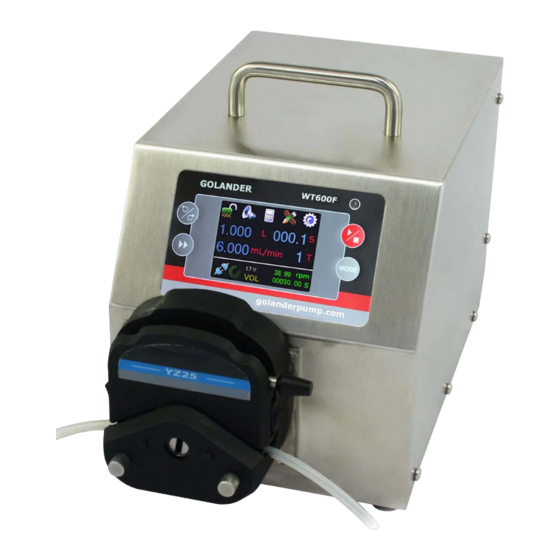

Intelligent dispensing peristaltic pump
Hide thumbs Also See for BT100F:
Table of Contents

Advertisement

Quick Links

Download this manual
GOLANDER
BT100F/300F/600F (V3)
Intelligent Dispensing Peristaltic Pump
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT100F and is the answer not in the manual?

Questions and answers

Related Manuals for Golander pump BT100F

Summary of Contents for Golander pump BT100F

  • Page 1 GOLANDER BT100F/300F/600F (V3) Intelligent Dispensing Peristaltic Pump Operating Manual...

  • Page 2: Table Of Contents

    Contents Safety Precautions ................1 1 Description ..................6 2 Functions and Features ..............6 3 Components and Connectors ............. 8 4 Display Panel and Operating Keypad ..........9 4.1 Keypad ..................9 4.2 LCD Touch Screen Display ............9 5 External Control Interface ..............

  • Page 3: Safety Precautions

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Safety Precautions Danger • Use the correct voltage indicated on the rating plate label of the pump to avoid any damage. • Do not make any unauthorized dismantling, changes or modifications to the pump which could result in malfunctions or even potential accidents.
  • Page 4 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump (DE) SICHERHEITSHINWEISE Gefahr • Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe angegeben ist, um Schäden zu vermeiden. • Nehmen keine unbefugten Demontagen, Änderungen oder Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
  • Page 5 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump (FR) CONSIGNES DE SÉCURITÉ Danger • Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe afin d'éviter tout dommage. • Ne procédez pas à des démontages, changements ou modifications non autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des accidents.
  • Page 6 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump (ES) INSTRUCCIONES DE SEGURIDAD Peligro • Utilice la tensión correcta indicada en la placa de características de la bomba para evitar daños. • No realice ningún desmontaje, cambio o modificación no autorizada en la bomba que pueda provocar un mal funcionamiento o incluso accidentes.
  • Page 7 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump (IT) ISTRUZIONI DI SICUREZZA Pericolo • Usare la tensione corretta indicata sull'etichetta della targhetta della pompa per evitare qualsiasi danno. • Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.

  • Page 8: Description

    New settings have also been incorporated into the RS485 MODBUS interface for more effective communication with external devices. The BT-F series includes the following models: • BT100F, flow rate: 0.0001-720 mL/min, speed: 0.1-150 rpm • BT300F, flow rate: 0.006-1600 mL/min, speed: 0.1-350 rpm •...
  • Page 9 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump • It offers reversible direction, start/stop control, and adjustable speed with a precision rotating speed control of 0.2% and 0.1 rpm speed. • The inclusion of flow display and calibration, along with 3 dispense modes: Time Dispense Mode, Volume Dispense Mode, and Program Dispense Mode, makes it ideal for fluid transfer applications.

  • Page 10: Components And Connectors

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 3 Components and Connectors Handle Drive Color LCD Touch Screen Coupler Pump Head Mounting Bracket RS232 DB15 External Control Interface Power Switch Fuse Power Connector Cooling Fan Figure 1. Components and Connectors...

  • Page 11: Display Panel And Operating Keypad

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 4 Display Panel and Operating Keypad LCD TOUCH SCREEN BT600F DIRECTION START/STOP PRIME MODE MODE Figure 2. Display Panel 4.1 Keypad START/STOP key. Press to start or stop the pump. DIRECTION key. Press to change the pump’s rotating direction between clockwise and counterclockwise.
  • Page 12 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 4.2.1 Status Bar Icon Function Icon Function Keypad Tone On/Off Locked/Unlocked Internal Control Footswitch Mode Mode Current Mode Voltage Mode Communication Communication Connected Disconnected Rotation Running/Stop Direction 4.2.2 Operation Display Flow: When the pump is not running, press “Flow” to input the desired value in the pop-up window.
  • Page 13 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Speed: When the pump is not running, press “Speed” to input the desired value in the pop-up window. Please pay attention to the speed limit. Speed Min: 0.1 Max: 600 Figure 6 Speed Setting Delayed Start: A delayed start can be preset (see section 6.3).
  • Page 14 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Control Mode Mode Settings Internal Control Control Mode Internal Control Foot Switch Reserved Current Control 4-20mA Sound Voltage Control 0-5V Reserved Voltage Control 0-10V Figure 7 Control Mode Settings Lock/unlock - Press the icon to lock the screen. Press again to unlock the screen.
  • Page 15 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump The rotating ring shows the direction of the pump operation. Counter clockwise operation Clockwise operation Flow Flow Flow Flow 9.000 9.000 9.000 9.000 mL/min mL/min mL/min mL/min Figure 10 Direction Indication In dispense mode, red at the center indicates a stop, green signifies operation, and yellow denotes a pause.
  • Page 16 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Quick Settings Cumulative Volume Cumulative Cycles Sound Reserved Figure 13 Quick Settings Calibration - For an accurate flow rate display, it is crucial to perform flow rate calibration Follow the step-by-step instructions provided by the calibration wizard (see section 6.3). Weigh the...
  • Page 17 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump General Setting Pump Head YZ15 Tubing Anti-Drip 0° Anti-Speed 150RPM Communication Figure 15 General Settings • Pump Head: Select the appropriate model of the installed pump head from the menu, accessible by swiping up and down, as shown in Figure 16.
  • Page 18 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Tube Settings Min Flow 6.000 uL/min Max Flow 9.000 mL/min Figure 17 Tubing Selection • Anti-Drip: The pump will rotate in the reverse direction by a specified angle to prevent fluid from dripping from the tubing when the peristaltic pump stops.
  • Page 19 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump as shown in Figure 20. Communication Settings Baud(bps) 9600 Parity Bit EVEN Byte Order CDAB Pump No. Figure 20 Communication Settings When a password is set and entered (the default password is blank), additional parameter settings will be displayed in the general settings menu.
  • Page 20 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump you can set a falling or rising edge to change the direction. A falling edge refers to a change from a high to a low level, while a rising edge refers to a change from a low level to a high level.
  • Page 21 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump System Settings System Settings Near End of Run Notice Date Settings 2024-02-15 Time Settings Motor Stall Alert 12:34 Auto Restart Language Settings Enabled English BackLight Settings Factory Reset Figure 24 System Settings • Date Settings: Set the current year, month, and day.
  • Page 22 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump English Language CHINESE ENGLISH Figure 27 Language Settings • Backlight Settings: The backlight settings of the LCD screen control the brightness level of the screen's backlight. The brightness settings are represented as a numerical scale ranging from 1 to 100, with 1 being the dimmest setting and 100 being the brightest.
  • Page 23 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Factory Reset Warning! The system will be restored to factory default settings. Cancel Figure 28 Factory Reset Info - Access information about the usage of the peristaltic pump. Information Information Software Hardware BOOT: V3.1.1 USER: V3.2.1...

  • Page 24: External Control Interface

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump the desired password, and press “Set” to confirm the changes. Return - Return to the main screen. 5 External Control Interface DB15 Mark Note ADC_W Positive of external analog input Communication interface, B pole of RS485...

  • Page 25: Operation Instructions

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump No. DB9 Mark Note Receiving data Send data Signal ground line Table 2 RS232 Definition 6 Operation Instructions 6.1 Before Operation 1) Check the packing slip to ensure all parts are included and in good condition.

  • Page 26: Power Connection

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 6.2 Power Connection Ensure that the power supply voltage matches the rating on the pump label. Connect the power cord to the IEC Power Connector at the rear of the pump, and plug the other end into an electrical outlet. Turn on the rear power switch.
  • Page 27 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 1) The test window is shown below. Calibration Press START/STOP to test, then input the test result. Repeat 3 times. Test1: 0.000 Test2: 0.000 Test3: 0.000 Figure 32 Calibration Press the Start/Stop key to initiate the fluid transfer for testing. Wait for the pump to complete the test, then measure the delivered volume.

  • Page 28: Working Mode

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump to the Main Settings window. Calibration After analysis and calculation, the results are as follows: Average volume 6.017 mL Calculated scale 106.3707 Reference scale 106.6662 Old scale 106.6662 Calibrate Figure 33 Result If no data has been entered, the following window will be displayed. Press to perform the test again.
  • Page 29 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump • Flow Mode The pump operates based on the set flow rate and records the cumulative fluid volume. In the main screen, the flow and flow unit can be set and the flow rate can be adjusted using the increase and decrease icons.
  • Page 30 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Head： YZ15 Flow Delayed Start Tube： Flow 00:30:00 9.000 9.000 Speed： 150.0 mL/min Elapsed： 5.333 Run Time mL/min 00:00:00 150.0 01:30:00 Total： 5.3322 Speed 转/分 Cycles FLOW FLOW Figure 38 Alarm Icon on the Status Bar •...
  • Page 31 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Dispense Stop Duration Dispense Pause Press Start Cycles Stop Duration Time START/STOP Dispense Pause Run N times Stop Duration Time Figure 40 Time Dispense Cycle Settings The preview interface displays the current pump head, tubing size, the number of cycles completed, and the volume transferred.
  • Page 32 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Head： YZ15 Flow Volume Tube： 9.000 Volume 5.000 Speed： 150.0 1.000 Cycles: mL/min Elapsed： 00000.00 S Total： 0.0000 uL Pause Cycles Cycles Flow： 9.000 mL/min Volume Dispense 01 Volume Dispense 01 Figure 42 Volume Dispense Mode Volume: Dispense volume for each dose, uL, mL, or L.
  • Page 33 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Users can switch the transfer mode between FLOW mode and TIME Mode for volume dispensing within the Mode settings. Mode Settings Transfer Mode Dispense Flow NO.1 Transfer Mode Time Flow Sound Reserved Setting for...
  • Page 34 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Volume: Total dispense volume in uL, mL or L Flow: Dispensing flow rate in uL/min, mL/min, or L/min. Pause: Pause time between doses in seconds, minutes, or hours. Cycles: Dispensing cycles for the current step. When the dispensing cycle is set to 1, the pump runs only once for the current step.
  • Page 35 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump The program dispense settings: Step 1 N(1) cycles Dispense Pause Start Volume(1) Time(1) Step 2 N(2) cycles Dispense Pause Volume(2) Time(2) Repeat Loop L times Continue to Step m Step m N(m) cycles Dispense...

  • Page 36: External Control Mode

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Mode Settings Transfer Mode Total Steps Flow Total Loops Time Sound Transfer Mode Flow Figure 48 Transfer Mode Setting for Program If the transfer mode is set to Flow mode, the setup screen will display the flow rate setting.
  • Page 37 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump CW_W ADC_W AGND RS_W VCC_W 0-5V/0-10V /4-20mA 5V/12V/24V DC Figure 50 DB15 Wiring with External DC Power Source CW_W ADC_W AGND RS_W 0-5V/0-10V /4-20mA Figure 51 DB15 Wiring with Internal 12V DC Power Source 2) Power on the pump.

  • Page 38: Communication Mode

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump Flow Flow 4mA Speed 0V Speed 0.000 0.000 uL/min uL/min 20mA Speed 5/10V Speed 150.0 150.0 Speed Speed FLOW FLOW Current Control Mode Voltage Control Mode Figure 52 Analog control interface When the External Control Mode is set to Logic Level and the external RS_W switch is closed, the pump will run and the speed will vary based on the analog input signal.
  • Page 39 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump VCC_W 12V DC Figure 53 Control Start/Stop with an External 12V Power Source Figure 54 Control Start/Stop with an Internal 12V Power Source 2) Power on the pump. The main screen will be displayed.

  • Page 40: Footswitch

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 4) The peristaltic pump communicates through RS485 with default settings of 9600 communication rate, 8 data bits, even parity check, and 1 stop bit. These parameters can be modified in the common parameters of the communication settings, as shown in Figure 56.

  • Page 41: Maintenance

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump RS_W Figure 58 Footswitch Control Start/Stop with the Internal 12V Power Source If the External Control is set to Logic Level in the Footswitch Control Mode, the pump will start when the RS_W switch is closed and the pump will stop when the switch is opened.

  • Page 42: Malfunction Solutions

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 1) Regularly inspect the tubing and connections to prevent leakage. 2) Do not cover the fan located at the rear of the pump. 3) Avoid exposing the pump head to water. Keep it dry.
  • Page 43 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump not work voltage is provided. 3. Check the connections of the external control board. Hardware RS485 com 1. Check the wiring of the connector. does not 2. Check if the external control power work voltage is provided.

  • Page 44: Dimensions

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 8 Dimensions Figure 60 Dimensions (mm) 9 Naming Rule Drive Type Flow Rate Rotation Speed Version Pump type IP rating Function Code D: Fixed speed B: Step motor Q: Microflow 05: 50 rpm 1-9 for special...

  • Page 45: Specifications

    BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump 10 Specifications Speed resolution 0.1 rpm Speed accuracy 0.2% Power supply AC 100-240V 50Hz/60Hz Power consumption BT100F: < 40W BT300F: < 50W BT600F: < 60W Logic level control signal 5V, 12V, 24V External analog control signal...
  • Page 46 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump BT100F Suitable Pump Heads and Tubing, Flow Parameters Flow rate No. of Pump head Tubing size (mm) per channel Channels (mL/min) Wall:0.8~1, ID:≤2.4 DG6-1 (6rollers) 0.00016~26 Wall:0.8~1, ID:≤2.4 DG10-1(10rollers) 0.00011~20 Wall:0.8~1, ID:≤2.4 DG6-2 (6rollers) 0.00016~26...
  • Page 47 BT100F/BT300F/BT600F (V3) Intelligent Dispensing Peristaltic Pump BT300F Suitable Pump Heads and Tubing, Flow Parameters Flow rate per Pump No. of Tubing size channel head Channels (mL/min) YZ15 13# 14# 16# 19# 25# 17# 0.006~990 YZ25 15# 24# 0.16~990 2xYZ15 13# 14# 16# 19# 25# 17# 0.006~990...
  • Page 48 Golander LLC Golander GmbH 4405 International Blvd Dechant-Heimbach-Str. 29 Ste B117, Norcross, GA 30093 53177 Bonn Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...
