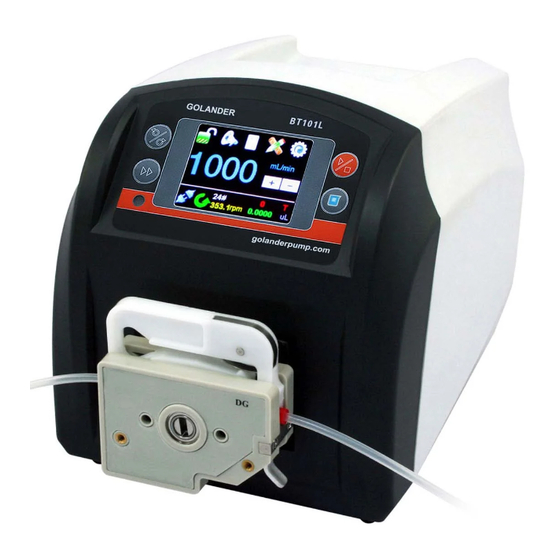

Intelligent flow peristaltic pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

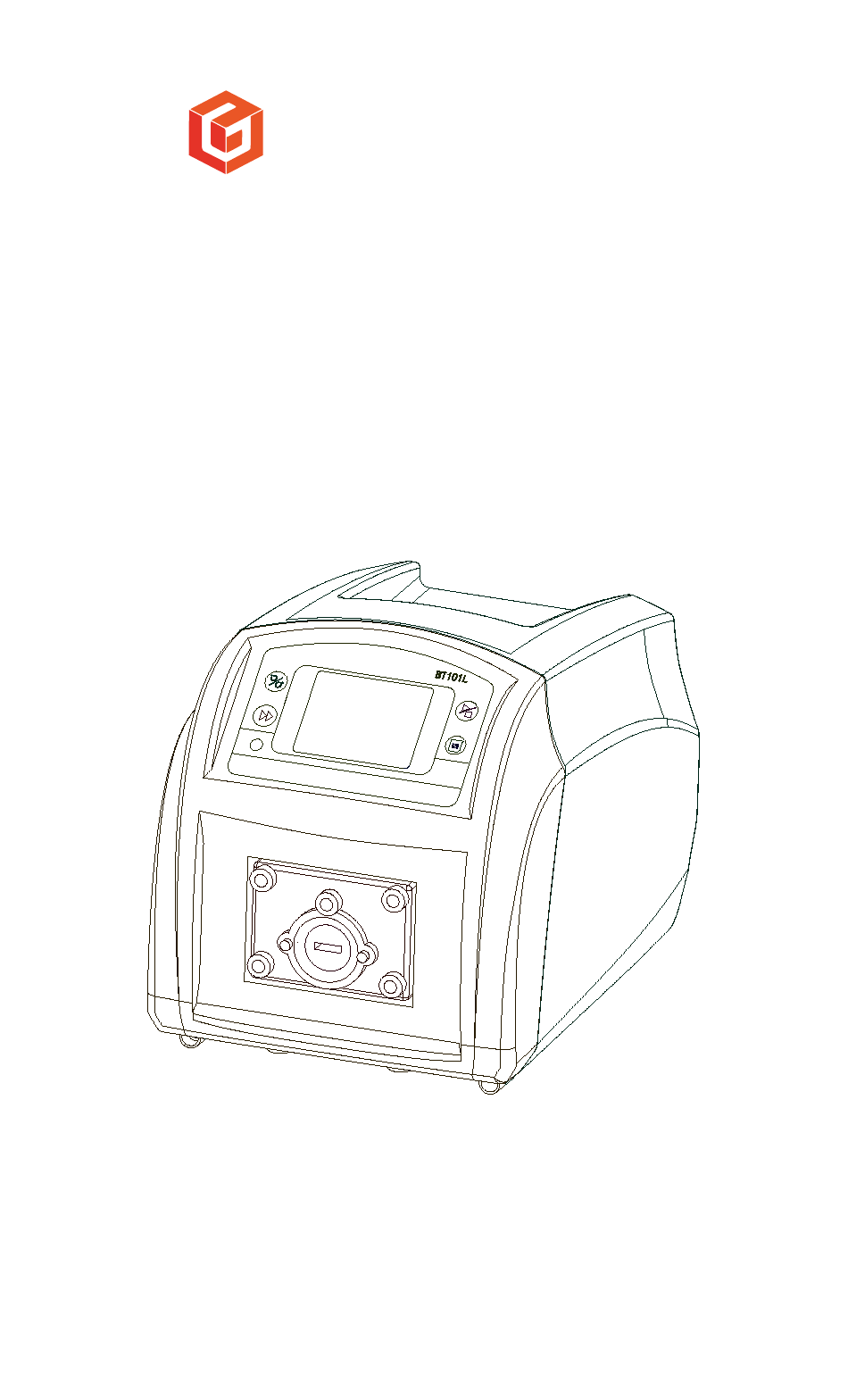

GOLANDER
Intelligent Flow Peristaltic Pump
Operating Manual
For BT101L, BT301L, BT601L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT101L and is the answer not in the manual?

Questions and answers

Related Manuals for Golander pump BT101L

Summary of Contents for Golander pump BT101L

  • Page 1 GOLANDER Intelligent Flow Peristaltic Pump Operating Manual For BT101L, BT301L, BT601L...

  • Page 2: Table Of Contents

    Contents Safety Precautions ................1 1 Description ..................6 2 Functions and Features ..............6 3 Components and Connectors ............. 8 4 Display Panel and Operating Keypads ..........9 4.1 Keypad ..................9 4.2 LCD Touch Screen Display ............. 10 4.3 System Settings ..............

  • Page 3: Safety Precautions

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Safety Precautions Danger Use the correct voltage indicated on the rating plate label of the pump • to avoid any damage. Do not make any unauthorized dismantling, changes or modifications • to the pump which could result in malfunctions or even potential accidents.

  • Page 4: (De) Sicherheitshinweise

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump (DE) SICHERHEITSHINWEISE Gefahr Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe • angegeben ist, um Schäden zu vermeiden. Nehmen keine unbefugten Demontagen, Änderungen oder Modifikationen • an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.

  • Page 5: (Fr) Consignes De Sécurité

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump (FR) CONSIGNES DE SÉCURITÉ Danger Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe • d'éviter afin tout dommage. Ne procédez pas à des démontages, changements ou modifications non • autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des accidents.
  • Page 6 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump (ES) INSTRUCCIONES DE SEGURIDAD Peligro Utilice la tensión correcta indicada en la placa de características de la • bomba para evitar daños. No realice ningún desmontaje, cambio o modificación no autorizada en la • bomba que pueda provocar un mal funcionamiento o incluso accidentes.
  • Page 7 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump (IT) ISTRUZIONI DI SICUREZZA Pericolo corretta Usare la tensione indicata sull'etichetta della targhetta della pompa • per evitare qualsiasi danno. Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla • pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.

  • Page 8: Description

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 1 Description BT-101L/BT301L/BT601L intelligent flow peristaltic pump provides not only intuitive and clear interface with color LCD touch screen, but also advanced features such as flow rate calibration and anti-drip function for accurate flow transfer. Easy Dispense Mode is available to dispense the recorded volume by pressing the DISPENSE key or using a footswitch.
  • Page 9 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 0.2% high precision rotating speed control with 0.1 rpm speed • resolution. Precise motor control technology improves dispense accuracy • compared to the traditional dispense mode. Professional operating system, configure system with setup • wizard.

  • Page 10: Components And Connectors

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 3 Components and Connectors Color LCD Touch Screen Pump Head Holder Coupler IEC Power Connector RS232 DB15 External Power Switch Control Interface Cooling Fan Figure 1. Components and Connectors...

  • Page 11: Display Panel And Operating Keypads

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 4 Display Panel and Operating Keypads LCD DISPLAY BT101L DIRECTION START/STOP PRIME DISPENSE Figure 2. Display Panel 4.1 Keypad START/STOP key. Press to start or stop drive. DIRECTION Key. Press to change the drive rotating direction, clockwise or counterclockwise.

  • Page 12: Lcd Touch Screen Display

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 4.2 LCD Touch Screen Display 9.000 mL/min ＋ － 150.0 RPM 4.3410 mL Figure 3. Main Display Screen 4.2.1 A - Keypad Lock Shows the state of the keypad lock. Press the icon to lock/unlock the keypad.
  • Page 13 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Tone on Tone off Figure 5. Key Tone 4.2.3 C - Control Mode Press the icon to enter the Control Mode interface. There are four control modes available. Control Mode Internal Ctrl Foot Ctrl Current Ctrl Voltage Ctrl Figure 6.
  • Page 14 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Internal Control Footswitch Current Control Voltage Control Mode Control Mode Mode Mode Figure 7. Control Mode Icon 4.2.4 D - Quick Settings Press the icon to enter Quick Settings interface to reset the cumulative volume and cycles.
  • Page 15 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Min:0.6ul/min Max:9.0ml/min -> Figure 9. Flow Rate Setting 4.2.7 G - Flow Rate Unit It shows current flow rate unit. When the drive is not running, press it to change the unit. The allowed units are µL/min, mL/min, L/min.

  • Page 16: System Settings

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Clockwise Counterclockwise Figure 11. Direction State When the drive is running, it will change to an animated icon as shown below. Figure 12. Running Animation 4.2.11 K - Tubing Size It shows current configured tubing size or pump head model.
  • Page 17 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Settings menu. Wizard Calibrate Setup Info About Return Figure 13. System Settings 4.3.1 Wizard A wizard to set up the parameters. The system will select appropriate tubing and pump head for you. 4.3.2 Calibrate Pump will accurately show current flow rate/volume after Flow Rate Calibration.
  • Page 18 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump • PumpHead - Choose the model of the suitable pump head. Pump Head Setup Please choose pump head. YZ15 YZ15 YZ25 Figure 15. Pump Head Select • Tubing - Choose the appropriate tubing size for selected pump head.
  • Page 19 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump • Language - Choose display language, Chinese or English. 语言选择 Language Select English 中文 Figure 18. Language Select • Remote It is the setting for external signal control: Logic Level control mode or Pulse control mode. When it is set to Logic Level, pump state will change when external switch is closed or open.
  • Page 20 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Baud(bps): 9600 4800 38400 19200 Mode: Pump No. 1 Computer Return Figure 20. Communication Settings • Anti-Drip The pump provides deceleration time setting to reduce fluid splash at the end of a dispense. It is the time for the drive to stop from the running speed to 0.
  • Page 21 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 4.3.4 Info Information SysInfo Defaults WorkInfo Password Return Figure 22. Information It is about pump information. • Sysinfo It shows software version, memory size, internal temperature, etc. System Information Software: V1.14 2012-02 Hardware: 16M FLASH Speed: 0.1RPM±0.2%...
  • Page 22 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Work Information Power on time: 5 D 8 H 29 M Run time: 0 D 5 H 01 M Power Cycles: 0000038 T ?D4MM6F= Return Figure 24. Work Information • Defaults It is to reset the pump to factory settings. Restart pump to apply the settings.

  • Page 23: External Control Interface

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Please enter a password Enter Figure 26. Password 4.3.5 About It shows the functions and features about the pump. 4.3.6 Return To return the main display screen. 5 External Control Interface DB15 Mark Note ADC_W...

  • Page 24: Operation Instructions

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Pulse signal output Ground of external power AGND Negative of analog signal input +12V Positive of internal +12V power source Ground of Internal power source Direction signal output RS_W External start/stop signal input PWM_W Pulse signal input...

  • Page 25: Flow Rate Calibration

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Pump Head Setup Tubing Setup Please choose pump head. YZ15 YZ15 YZ25 µL/min mL/min ☞ ☞ Anti-Drip Settings 13# Tubing Calibration Deceleration Time 6.000 mL/min Reverse Speed 3.000 Reverse Angle degrees Suggested testing vol >3.000mL to reach 0.5% precision.
  • Page 26 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 4) When the drive is not running, press System Settings icon then select Calibrate. Wizard Calibrate Setup Info About Return Figure 28. System Settings 5) In calibration wizard window, system shows the calibration of current selected tubing, flow rate and fluid volume.
  • Page 27 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 6) Test window shown below. Press start/stop key to test, then input the data. Test1 0.000 Test2 0.000 Test3 0.000 Prev Next Return Figure 30. Calibration Press START/STOP key to start transferring fluid. Wait for the pump to finish testing, and then measure the volume of the transferred fluid.

  • Page 28: Run Wizard

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Otherwise, press Prev to test again. Or, press Return to exit without saving the new value and return to the System Settings window. Analyze and Calculate Average Vol 3.068 Cal scale 208.6957 Re scale 213.3330 Old scale 213.3330...
  • Page 29 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump Welcome System will select the matching tubing and pump head automatically according to flow rate input. Next Return Figure 33. Welcome Screen 2) Input the desired values as shown below. Please input the desired flow range.

  • Page 30: Easy Dispense Mode

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump No matching pump head found. Prev Return Figure 36. No Appropriate Pump Head 6.6 Easy Dispense Mode The pump will dispense fluid by recording the volume for each dose. To record the volume for each dose 1) Turn on the power switch.

  • Page 31: External Control Mode

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump adjust the volume, or press the PRIME key to fine adjust the volume, until the cumulative volume reaches the desired volume. 5) Press the DISPENSE key to exit the Easy Dispense Recording mode. Pump will record the cumulative volume for Easy Dispense Mode.
  • Page 32 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump CW_W ADC_W AGND RS_W VCC_W 0-5V/0-10V /4-20mA 5V/12VDC Figure 39. DB15 Wiring with External 5V or 12VDC Power Source CW_W ADC_W AGND RS_W 0-5V/0-10V /4-20mA Figure 40. DB15 Wiring with Internal 12VDC Power Source 2) Turn on the power switch. Pump will display the main screen.
  • Page 33 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump direction. 6) When set the Remote Control Mode to Pulse, close then open the external RS_W switch, the pump will run and the speed will change according to the intensity of the analog input signal. Close and open RS_W switch again to stop pump.

  • Page 34: Communication Mode

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 6.8 Communication Mode The RS485 interface supports standard MODBUS protocol. Pump can communicate with external device via the communication port. Please refer to the Communication Instruction manual for the parameters and supported commands. To work with communication mode 1) Turn the power off.

  • Page 35: Footswitch

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 9.000 mL/min ＋ － 150.0RPM 4.3410 Figure 44. Communication Connected 6.9 Footswitch To use a footswitch to control start and stop 1) Power pump off. Wire the DB15 connector as shown on Figure 45 or Figure 46, and connect it to the DB15 port on the rear of the pump.

  • Page 36: Maintenance

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 2) Turn the power on. Pump will display the main screen. 3) On Internal Control Mode, when the switch RS_W is closed then open, pump will start to dispense. 4) On Footswitch Control Mode, if Remote Control Mode is set to Logic Level, when the switch RS_W is closed, pump will start;...

  • Page 37: Malfunction Solutions

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 7.3 Malfunction Solutions Malfunction Description Solution Hardware No display 1. Check the power cord 2. Check the fuse. If it was blown, replace it with a 1A slow-blow fuse 3. Check the internal power cord connection inside the pump.
  • Page 38 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump control does connector. not work 2. Check if the external control power voltage is provided. 3. Check the connections of the external control board. Hardware RS485 com 1. Check the wiring of the does not connector.

  • Page 39: Dimensions

    BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump 8 Dimensions Figure 48. Dimensions (mm) 9 Naming Rule Flow Rate Rotation Speed Version Pump type Drive Type Function Code IP rating B: Step motor Q: Microflow 05: 50 rpm D: Fixed speed 1-9 for special...

  • Page 40: Specifications

    (10.12 x 7.80 x 7.17 inch) Weight BT101L: 4.8 kg ( 10.6 lbs); BT301L: 5.3 kg (11.7 lbs); BT601L: 5.5 kg (12.1 lbs) BT101L Suitable Pump Heads and Tubing, Flow Parameters Flow rate Drive No. of Pump head Tubing size (mm)
  • Page 41 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump DG10-2 Wall:0.8~1, ID:≤2.4 0.00011~20 (10rollers) DG6-4 Wall:0.8~1, ID:≤2.4 0.00016~26 (6rollers) DG10-4 Wall:0.8~1, ID:≤2.4 0.00011~20 (10rollers) 13# 14#, DT10-18 Wall:0.8~1, 0.0002~82 ID:≤3.17 13# 14#, DT10-28 Wall:0.8~1, 0.0002~82 ID:≤3.17 13# 14# 16# 19# YZ15 0.0006~420 25# 17#...
  • Page 42 BT101L/BT301L/BT601L Intelligent Flow Peristaltic Pump BT601L Suitable Pump Heads and Tubing, Flow Parameters Flow rate Drive Pump No. of Tubing size per channel type head Channels (mL/min) 13# 14# 16# 19# 25# 17# YZ15 0.006~1700 BT601L YZ25 15# 24# 0.16~1700...
  • Page 44 Golander LLC Golander GmbH 4405 International Blvd Dechant-Heimbach-Str. 29 Ste B117, Norcross, GA 30093 53177 Bonn Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...

This manual is also suitable for:

Bt301lBt601l
