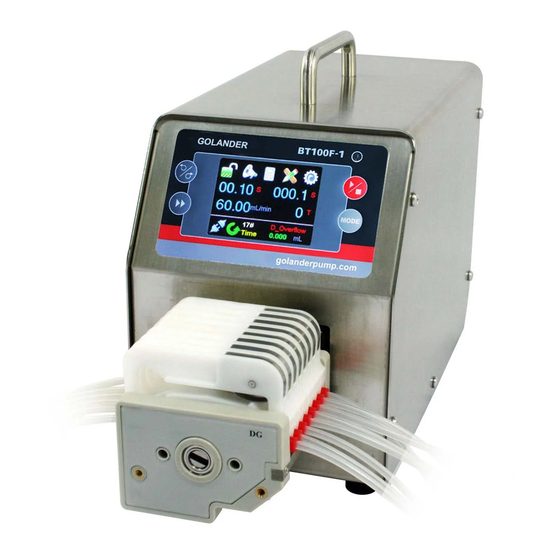

- Page 1 GOLANDER BT100F-1 Intelligent Dispensing Peristaltic Pump Operating Manual info@golanderpump.com http://golanderpump.com 1-678-587-8806...
-
Page 2: Table Of Contents
Contents Safety Cautions ..................1 1 Description ..................1 2 Functions and Features ..............2 3 Components and Connectors ............. 4 4 Display Panel and Operating Keypads ..........5 4.1 Keypad ..................5 4.2 LCD Touch Screen Display ............6 4.3 System Settings .............. -
Page 3: Safety Cautions
Warning: This product is not designed for, nor intended for use in patient connected applications; including, but not limited to, medical and dental use. 1 Description BT100F-1 intelligent dispensing peristaltic pump provides flow rate from 0.00011 to 1700 mL/min with variable pump heads and tubings. It is easy to operate with intuitive and clear color LCD touch screen. -
Page 4: Functions And Features
BT100F-1 Intelligent Dispensing Peristaltic Pump 2 Functions and Features Advantage of peristaltic pump: Peristaltic pump can handle extremely viscous fluids, abrasive slurries and corrosive fluids. There is no seals in contact with the medium pumped and no valves to clog. The inner surfaces are smooth and easy to clean;... - Page 5 BT100F-1 Intelligent Dispensing Peristaltic Pump • Intelligent temperature control to minimize working noise. • External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated. • With RS485 MODBUS interface.
-
Page 6: Components And Connectors
BT100F-1 Intelligent Dispensing Peristaltic Pump 3 Components and Connectors Handle Color LCD Touch Screen Keypad Pump Head Holder Coupler RS232 DB15 External Control Interface Power Switch Power Connector Fuse Cooling Fan Figure 1. Components and Connectors... -
Page 7: Display Panel And Operating Keypads
BT100F-1 Intelligent Dispensing Peristaltic Pump 4 Display Panel and Operating Keypads TOUCH SCREEN LCD DISPLAY BT100F-1 DIRECTION START/STOP PRIME MODE MODE golanderpump.com Figure 2. Display Panel 4.1 Keypad START/STOP key. Press to start or stop the drive. DIRECTION Key. Press to change the drive rotating direction, clockwise or counterclockwise. -
Page 8: Lcd Touch Screen Display
BT100F-1 Intelligent Dispensing Peristaltic Pump 4.2 LCD Touch Screen Display 9.000 mL/min ＋ － 150.0 RPM Flow 75 °F Figure 3. Main screen 4.2.1 A - Keypad Lock It shows the state of the keypad lock. Press the icon to lock/unlock the keypad. - Page 9 BT100F-1 Intelligent Dispensing Peristaltic Pump 4.2.2 B - Tone Button Press this icon to turn on/off the key tone. Tone on Tone off Figure 5. Key Tone 4.2.3 C - Control Mode Press this icon to enter the Control Mode interface. There are four control modes available.
- Page 10 BT100F-1 Intelligent Dispensing Peristaltic Pump analog voltage signal controls rotating speed, and external logic level signal controls start/stop and direction. The keypad is disabled. The screen will show the corresponding icon for the control mode you have selected. Internal Control...
- Page 11 BT100F-1 Intelligent Dispensing Peristaltic Pump 4.2.5 E - System Settings Press this icon to enter the System Settings menu, and then change the parameters shown on the screen. 4.2.6 F - Flow Rate Setting It shows current flow rate setting. When the drive is not running, press it to input desired value in the pop-up window.
- Page 12 BT100F-1 Intelligent Dispensing Peristaltic Pump 4.2.9 I - Communication State It shows current RS485 communication state. Communication Communication connected disconnected Figure 10. Communication State 4.2.10 J - Rotation Direction It shows current rotation direction. When the drive is not running, it will show one of the following icon.
-
Page 13: System Settings
BT100F-1 Intelligent Dispensing Peristaltic Pump 4.2.13 M - Speed or Cumulative Cycles It shows current speed or cumulative dispense cycles, switched by pressing MODE key. If the speed is higher than the maximum allowed speed, it will show U_Overflow; if the speed is lower than the minimum allowed speed, it will show D_Overflow. - Page 14 BT100F-1 Intelligent Dispensing Peristaltic Pump 4.3.1 Wizard It’s a Wizard to set up the parameters. The system will select appropriate tubing and pump head for you. 4.3.2 Calibrate Pump will accurately show current flow rate/volume after Flow Rate Calibration. Note: The calibration is necessary to display flow rate precisely.
- Page 15 BT100F-1 Intelligent Dispensing Peristaltic Pump Tubing Setup 6.0 µL/min 9.0mL/min Figure 16. Tubing Select • IrDA - Turn on/off the infrared control function. IrDA Setup This function is to turn on/off IrDA control. Enable Return Figure 17. IrDA Setup • Language - Choose display language, Chinese or English.
- Page 16 BT100F-1 Intelligent Dispensing Peristaltic Pump • Remote It is the setting for external control mode: Logic Level control mode or Pulse control mode. When it is set to Logic Level, pump state will change when external switch is closed or open. It is designed for a maintained switch.
- Page 17 BT100F-1 Intelligent Dispensing Peristaltic Pump • Anti-Drip The pump provides deceleration time setting to reduce fluid splash at the end of a dispense. It is the time for the drive to stop from the running speed to 0. In addition, to minimize the drip after a dispense, the drive can reverse direction to draw the fluid back at the end of the tubing.
- Page 18 BT100F-1 Intelligent Dispensing Peristaltic Pump System Information Software: V1.14 2012-02 Hardware: 16M FLASH Speed: 0.1RPM±0.2% 75 °F Temperature: Return Figure 23. System Information • Workinfo It shows total power on time, running time and power cycles. Work Information Power on time: 5 D 8 H 29 M...
- Page 19 BT100F-1 Intelligent Dispensing Peristaltic Pump Factory Reset Warning! The system will be restored to factory default settings. Reset Return Figure 25. Factory Reset • Password It is to set a password to unlock the keypad. It will prevent user from changing parameters accidentally.
-
Page 20: External Control Interface
BT100F-1 Intelligent Dispensing Peristaltic Pump 5 External Control Interface DB15 Mark Note ADC_W Positive of external analog input Communication interface, B pole of RS485 Communication interface, A pole of RS485 VCC_W External DC power input Analog voltage signal output CW_W... -
Page 21: Power Connection
BT100F-1 Intelligent Dispensing Peristaltic Pump 3) There should be more than 200 mm space for the back of the pump when it is running. 6.2 Power Connection The voltage of the power supply should be marked on the sticker of the pump. -
Page 22: Flow Rate Calibration
BT100F-1 Intelligent Dispensing Peristaltic Pump Working Mode 13# Tubing Calibration FLOW VOLUME 6.000 mL/min 3.000 TIME COPY Suggested testing vol >3.000mL You can use wizard for the system to reach 0.5% precision. to find the best parameters. Next Return Figure 27. First Run Wizard 6.4 Flow Rate Calibration... - Page 23 BT100F-1 Intelligent Dispensing Peristaltic Pump Wizard Calibrate Setup Info About Return Figure 28. System Settings 5) In calibration wizard window, it shows the current selected tubing, desired flow rate and the suggested volume to test. 13# Tubing Calibration 6.000 mL/min 3.000...
- Page 24 BT100F-1 Intelligent Dispensing Peristaltic Pump Press start/stop key to test, then input the data. Test1 0.000 Test2 0.000 Test3 0.000 Prev Next Return Figure 30. Calibration Press START/STOP key, pump will start to transfer fluid. Wait for the pump to finish testing, and then measure the delivered volume.
-
Page 25: Working Mode
BT100F-1 Intelligent Dispensing Peristaltic Pump The scale is a coefficient for the tubing. The calculated scale should be close to the reference scale (the “Re scale” shown on Figure 31). Otherwise, please check the following and press Prev to test again. - Page 26 BT100F-1 Intelligent Dispensing Peristaltic Pump Working Mode FLOW VOLUME TIME COPY You can use wizard for the system to find the best parameters. Figure 33. Working Mode • FLOW - Flow Mode On this mode, pump will be running according to the set flow rate, and record the cumulative fluid volume.
- Page 27 BT100F-1 Intelligent Dispensing Peristaltic Pump 5.000 001.0 9.000 mL/min 150.0 RPM Vol 01 0033.33 Figure 35. Volume Dispense Mode A - Dispense volume for each dose, µL, mL or L. B - Dispense flow rate, µL/min or mL/min. C - Lag time. The time between doses.
- Page 28 BT100F-1 Intelligent Dispensing Peristaltic Pump be selected from the Quick Settings menu. • TIME - Time Dispense Mode Pump will dispense by setting the dispense duration for each dose, lag time between doses and number of cycles. System will calculate dispense volume for each dose automatically.
-
Page 29: Wizard
BT100F-1 Intelligent Dispensing Peristaltic Pump time between doses and number of dispense cycles. System will calculate dispense volume for each dose automatically. 5.000 001.0 9.000 mL/min 150.0 RPM 2.500 mL Copy 01 Figure 38. Copy Dispense Mode A - Total dispense volume, µL, mL or L B - Dispensing flow rate, µL/min, mL/min... - Page 30 BT100F-1 Intelligent Dispensing Peristaltic Pump parameter setup interface. Welcome System will select the matching tubing and pump head automatically according to flow rate input. Next Return Figure 39. Welcome Screen 2) Input the required values as shown below. Please input the desired flow range.
- Page 31 BT100F-1 Intelligent Dispensing Peristaltic Pump Please input total volume, cycles and duration for each dose. 5.000 TotalVol Cycles Duration 0060.00 Prev Next Return Figure 42. Copy Dispense Mode 3) Press Next button, system will list appropriate pump heads automatically. Select the desired pump head and tubing, press Next to set up lag time and cycles.
-
Page 32: External Control Mode
BT100F-1 Intelligent Dispensing Peristaltic Pump 4) Other Parameter Settings, for lag time between doses and number of cycles. Other Parameter Settings Time lag 001.0 Cycles Prev Figure 45. For Volume/Time Dispense Mode Other Parameter Settings Time lag 001.0 Prev Figure 46. For Copy Dispense Mode 6.7 External Control Mode... - Page 33 BT100F-1 Intelligent Dispensing Peristaltic Pump 0-5V (default) 0-10V 4-20mA Figure 47. Analog Signal Control Board Setting To control pump by external signal 1) Switch the power off. Wire the DB15 connector as shown on Figure 48 or Figure 49, and connect it to the DB15 port on the rear of the pump.
- Page 34 BT100F-1 Intelligent Dispensing Peristaltic Pump 2) Turn on the power switch. Pump will display the main screen. 3) Press to set Control Mode to voltage , or current 4) Turn on the external analog signal power source. 5) When set the Remote Control Mode to Logic Level, close the external RS_W switch, the drive will run and the speed will change according to the intensity of the analog input signal.
-
Page 35: Communication Mode
BT100F-1 Intelligent Dispensing Peristaltic Pump 9.000 mL/min ＋ － 150.0 RPM Flow °F Figure 51. Current Control Mode Note: The external DC power source can be 5V or 12V. If it is 24V, 1.5K resistor is needed to protect internal circuit. -
Page 36: Footswitch
BT100F-1 Intelligent Dispensing Peristaltic Pump VCC_W 12VDC Figure 53. RS485 MODBUS Wiring 2) Turn the power on. Pump will display the main screen. 3) On Internal Control Mode, when the main screen shows , the communication is connected. If it shows , the communication is disconnected. - Page 37 BT100F-1 Intelligent Dispensing Peristaltic Pump RS_W Figure 55. Control Start/Stop with Internal 12V Power Source RS_W VCC_W 12VDC Figure 56. Control Start/Stop with External 12V Power Source 2) Turn the power on. Pump will display the main screen. 3) On Internal Control Mode, if pump is set to one of the dispense modes, when the switch RS_W is closed then open, pump will start to dispense.
-
Page 38: Maintenance
BT100F-1 Intelligent Dispensing Peristaltic Pump 9.000 mL/min ＋ － 150.0 RPM Flow °F Figure 57. Footswitch Control 7 Maintenance 7.1 Warranty The product comes with one-year labor and parts warranty. The limited warranty does not cover any damage that is caused by improper usage and handling. - Page 39 BT100F-1 Intelligent Dispensing Peristaltic Pump not work board. 2. Check the wire connection between motor and driver board. 3. Check the wire connection between the driver and the main board. 4. Check the power voltage for the pump. Hardware Motor is 1.
-
Page 40: Dimensions
BT100F-1 Intelligent Dispensing Peristaltic Pump 3. Check whether on the bus there are two pumps using the same address If the problem can not be solved, please contact the manufacturer or distributor. 8 Dimensions Figure 58. Dimensions (mm) 9 Naming Rule... -
Page 41: Specifications
BT100F-1 Intelligent Dispensing Peristaltic Pump 10 Specifications Speed resolution 0.1 rpm Speed accuracy 0.2% Power supply AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption < 60W External logic level 5V, 12V (standard), 24V (optional) control signal External analog control 0-5V (standard);... - Page 42 BT100F-1 Intelligent Dispensing Peristaltic Pump BT100F-1 Suitable Pump Heads and Tubings, Flow Parameters Flow rate per Drive Pump heads Tubing size (mm) channel type (mL/min) Wall:0.8~1, ID:≤2.4 DG6-8 (6rollers) 0.00016~26 Wall:0.8~1, ID:≤2.4 DG10-8 (10rollers) 0.00011~20 Wall:0.8~1, ID:≤2.4 DG6-12 (6rollers) 0.00016~26 Wall:0.8~1, ID:≤2.4...
