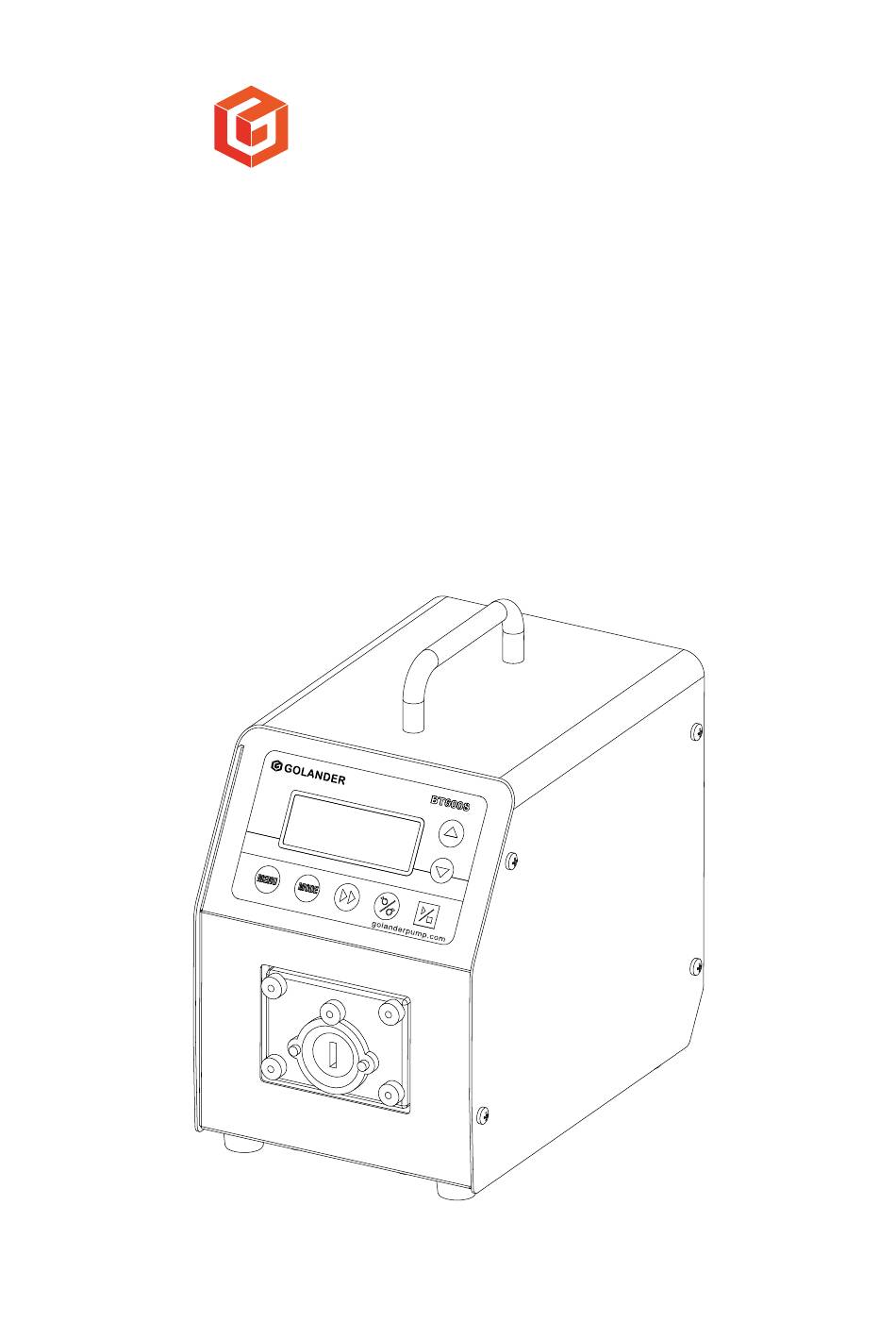

- Page 1 GOLANDER BT100S/BT300S/BT600S/BT100S-1 Variable-Speed Peristaltic Pump Operating Manual...
-
Page 2: Table Of Contents
Contents Safety Precautions ..................1 1 Description ....................6 2 Functions and Features ................6 3 Components and Connectors ..............7 4 Operating Keypads and Display Panel ............8 4.1 Keypad ..................... 8 4.2 LCD Screen Display ................. 9 5 Parameter Settings ................... 11 6 Advanced System Parameter Settings ............. -
Page 3: Safety Precautions
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump Safety Precautions Danger Use the correct voltage indicated on the rating plate label of the pump to • avoid any damage. Do not make any unauthorized dismantling, changes, or modifications to • the pump that could result in malfunctions or even potential accidents. - Page 4 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump (DE) SICHERHEITSHINWEISE Gefahr Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe • angegeben ist, um Schäden zu vermeiden. Nehmen keine unbefugten Demontagen, Änderungen oder • Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
- Page 5 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump (FR) CONSIGNES DE SÉCURITÉ Danger Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe • afin d'éviter tout dommage. Ne procédez pas à des démontages, changements ou modifications non • autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des accidents.
- Page 6 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump (ES) INSTRUCCIONES DE SEGURIDAD Peligro Utilice la tensión correcta indicada en la placa de características de la • bomba para evitar daños. No realice ningún desmontaje, cambio o modificación no autorizada en la • bomba que pueda provocar un mal funcionamiento o incluso accidentes.
- Page 7 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump (IT) ISTRUZIONI DI SICUREZZA Pericolo Usare la tensione corretta indicata sull'etichetta della targhetta della pompa • per evitare qualsiasi danno. Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla • pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.
-
Page 8: Description
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 1 Description The BT100S//300S/600S/100S-1 variable-speed peristaltic pump provides not only basic functions such as start/stop, reversible direction, and adjustable speed but also the Time Dispense Mode and Anti-Drip function. With the MODBUS RS485 interface, the pump can easily communicate with external devices, such as PC, HMI, or PLC. -
Page 9: Components And Connectors
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump Precision rotating speed control with 0.5% accuracy, featuring 0.1 rpm • resolution for speeds ranging from 0 to 100 rpm, and 1 rpm resolution for speeds from 100 to 600 rpm. An external logic level signal can control start/stop, direction, and •... -
Page 10: Operating Keypads And Display Panel
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 4 Operating Keypads and Display Panel LCD DISPLAY DOWN 32.5rpm MENU MODE MENU MODE START/STOP PRIME DIRECTION Figure 2. Display Panel 4.1 Keypad UP Key. When pressed shortly, the last digit of the value will increase by 1. -
Page 11: Lcd Screen Display
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 4.2 LCD Screen Display 32.5rpm Figure 3. Display screen A. Control Mode It displays the current control mode. Press the MODE key to switch between the following control modes: • Internal Control Mode (Int): Use the keypad to operate the pump. Use an optional external pulse signal to control the start and stop. - Page 12 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump B. Running State Stop Running Pause C. Direction Clockwise Counterclockwise D. Key Tone Tone on Tone off E. Keypad Lock Keypad unlocked Keypad locked When the keypad is locked, only the START/STOP key will work. In the main screen, press and hold the DIRECTION key to lock the keypad;...
-
Page 13: Parameter Settings
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump F. Communication Communication Connected, pump disconnected number is set to 1 G. Rotating Speed The current rotating speed, i.e. revolutions per minute is displayed. When the pump is running at full speed, the display will be >>>>>>>. - Page 14 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump Menu 1.Run Time Unit 1.Run Time Unit Second 2.Dispense Time Menu 2.Dispense Time 1.0 Second 3.Pause Time Unit Menu 3.Pause Time Unit Second 4.PauseTime Menu 4.Pause Time 1.0 Second 5.Cycles Menu 5.Cycles 6.Reverse Angle Menu 6.Reverse Angle 7.Max Speed...
- Page 15 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 1. Run Time Unit: Time unit for the dispense duration in Time Dispense mode, configurable in seconds, minutes, hours, and days. 2. Dispense Time: It is the dispense duration for each dose in Time Dispense mode, adjustable within the range of 0.1 to 999 seconds/minutes/hours/days.
-
Page 16: Advanced System Parameter Settings
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 6 Advanced System Parameter Settings System 1.Baud 1.Baud 9600 System 2.Stop Bit 2.Stop Bit System 3.Parity 3.Parity Even System 4.Pulse Trigger 4.Pulse Trigger Falling Edge System 5.Level Trigger 5.Level Trigger High level System 6.Ext Control 6.Ext Control... - Page 17 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump In the main interface, press the MENU and UP keys to enter the advanced system parameter setting interface. In this interface, press the UP and DOWN keys for advanced parameter selection, press the START/STOP key to enter the submenu, and press the UP or DOWN key to adjust the parameters.
-
Page 18: External Control Interface
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 11. Time Set: Set the current date and time. Press the PRIME key to change the set parameters, press the UP or DOWN key to adjust the time, and press the START/STOP key to save and exit. -
Page 19: Operating Instructions
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 8 Operating Instructions 8.1 Before Operation 1) Check the packing slip to ensure all parts are included and in good condition. Contact the manufacturer or distributor if there are any issues. 2) Read the instructions thoroughly. -
Page 20: Mode Change
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 1. Holding down the UP or DOWN key to change the value fast. Hold the PRIME key and press the UP key to set the speed to the maximum directly. Hold the PRIME key and press the DOWN key to set the speed to the minimum directly (0.1 rpm). -
Page 21: External Control Mode
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 32.5rpm >>>>>> Normal Speed Priming Figure 7. Normal vs Priming 8.6 External Control Mode In this mode, use an external logic level signal to control direction, start, and stop; use an external analog signal to control rotation speed. The keypad is disabled. -
Page 22: Time Dispense Mode
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump CW_W AGND ADC_W RS_W 0-5V/0-10V /4-20mA Figure 10. DB15 Wiring with the Internal 12VDC Power Source 2) Turn on the power. The pump will display the main screen. 3) Press the MODE key to change the mode to External Control mode (“Ext V”... -
Page 23: Logic Level 1 Control Mode (Footswitch)
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump To set the Time Dispense Mode 1) Turn on the power. The pump will display the main screen. 2) Press the MODE key to change the mode to Time Dispense mode (“Disp” shown on the screen). - Page 24 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump lev1 32.5rpm Figure 13. Logic Level 1 Control Mode 1) Turn off the power. Wire the DB15 connector as shown in Figure 14 or Figure 15, and connect it to the DB15 port on the rear of the pump.
-
Page 25: Logic Level 2 Control Mode (Footswitch And Direction Switch)
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump is opened, the drive will stop. Note: Use this mode to work with a TIME CONTROLLER. 8.9 Logic Level 2 Control Mode (footswitch and direction switch) Use an external logic-level signal to control start, stop, and direction. Use the keypad to control speed. -
Page 26: Communication Mode
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump CW_W RS_W VCC_W 5V/12V/24V DC Figure 18. Logic Level 2 Control with an External Power Source 2) Turn on the power switch. The pump will display the main screen. 3) Press the MODE key to change the mode to Logic Level 2 control mode (“Lev2”... -
Page 27: Maintenance
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 1) When the power is off, wire the DB15 connector as shown in Figure 20 and connect it to the DB15 port on the rear of the pump. An external DC power source is recommended to avoid electrical interference. -
Page 28: Malfunction Solutions
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 9.3 Malfunction Solutions Mal- Description Solution function Hardware No display 1. Check the power cord 2. Check the fuse. If it was blown, replace it with a 1A slow-blow fuse 3. Check the internal power cord connection inside the pump. - Page 29 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump software control does 2. Check if the external control power not work voltage is provided. 3. Check the connections of the external control board. 4. Check if the pump is on External Control Mode. Hardware/ RS485 com 1.
-
Page 30: Dimensions
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 10 Dimensions Figure 21. BT100S/BT300S/BT600S Dimensions (mm) Figure 22. BT100S-1 Dimensions (mm) -
Page 31: Naming Rule
Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 11 Naming Rule Drive Type Flow Rate Rotation Speed Version Pump type Function Code IP rating B: Step motor Q: Microflow 05: 50 rpm D: Fixed speed Default: 1-9 for special W: DC brushless T: Laboratory... - Page 32 (10.94 x 5.91 x 9.37 inch) Weight BT100S: 4.7 kg (10.4 lbs) BT300S: 4.9 kg (10.8 lbs) BT600S: 5.2 kg (11.5 lbs) BT100S-1: 4.9 kg (10.8 lbs) BT100S Applicable Pump Heads, Tubing, and Flow Parameters Pump No. of Flow rate per Tubing size (mm) head...
- Page 33 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump YT25 15# 24# 35# 36# 0.17-720 2xYT15 13# 14# 16# 19# 25# 17# 18# 0.006-570 2xYT25 15# 24# 35# 36# 0.17-720 DT15-14 19# 16# 25# 17# 0.07-560 DT15-24 19# 16# 25# 17# 0.07-560 DT15-44 19# 16# 25# 0.07-330...
- Page 34 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump YT25 15# 24# 35# 36# 0.17-2900 2xYT15 13# 14# 16# 19# 25# 17# 18# 0.006-2300 BT100S-1 Applicable Pump Heads, Tubing, and Flow Parameters Pump No. of Flow rate per Tubing size (mm) head Channels channel (mL/min) DG6-8 wall thickness 0.8-1, ID≤3.17...
- Page 35 Golander BT100S/BT300S/BT600S/BT100S-1 Peristaltic Pump 4xYZ15 13#14#16#19#25#17# 0.006-420 4xYZ25 15#24# 0.16-420 KZ25 15#24#35#36# 0.25-1500 2xKZ25 15#24#35#36# 0.25-1500 DT15-44 19#16#25#17# 0.05-400 YT15 13#14#16#19#25#17#18# 0.006-570 YT25 15#24#35#36# 0.17-720 2xYT15 13#14#16#19#25#17#18# 0.006-570 2xYT25 15#24#35#36# 0.17-720 4xYT15 13#14#16#19#25#17#18# 0.006-570 4xYT25 15#24#35#36# 0.17-720...
- Page 36 Golander LLC Golander GmbH 4405 International Blvd Dechant-Heimbach-Str. 29 Ste B117, Norcross, GA 30093 53177 Bonn Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...
