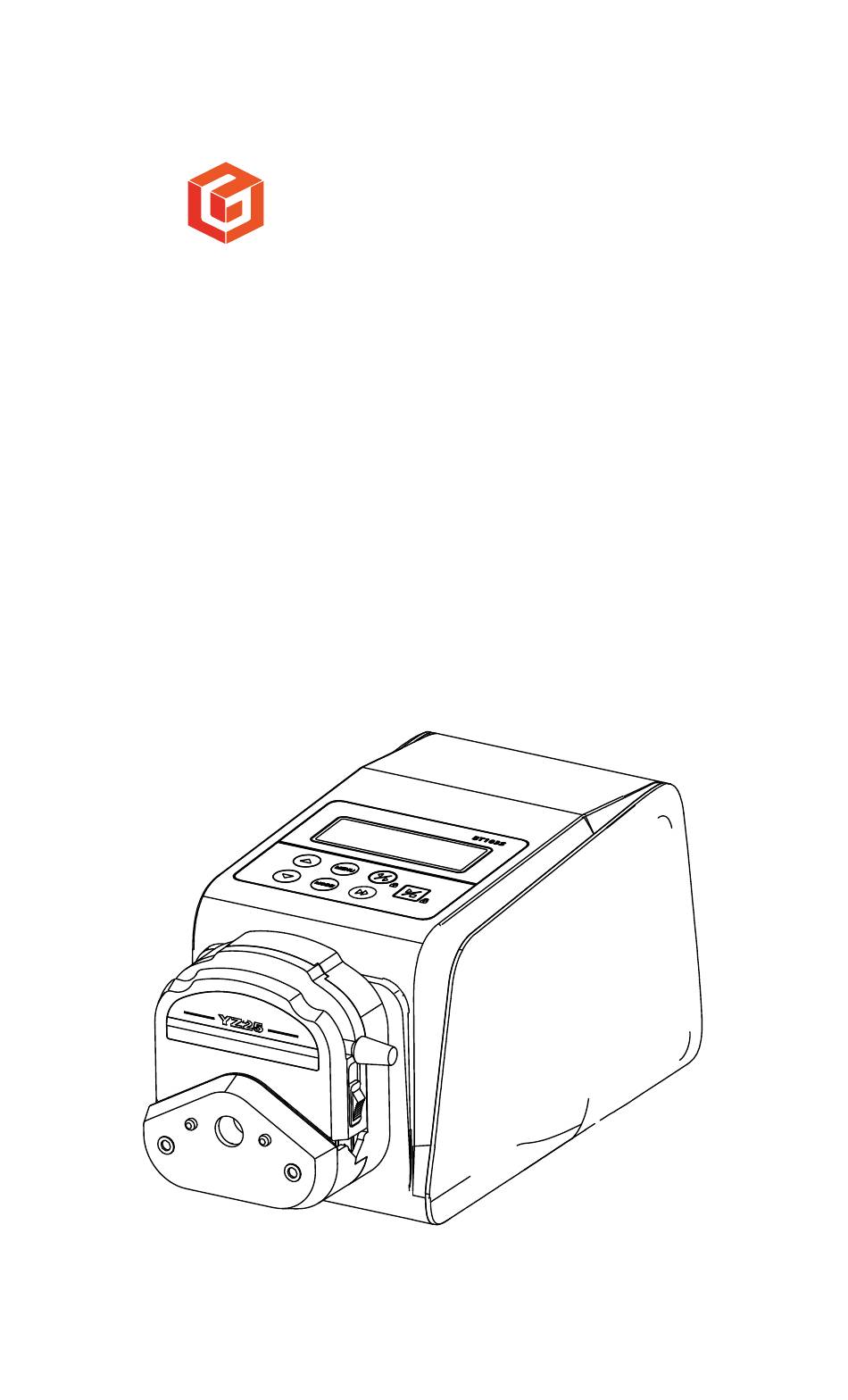

  • Page 1 GOLANDER BT103S Variable-Speed Peristaltic Pump Operating Manual...

  • Page 2: Table Of Contents

    Contents Safety Precautions ................1 1 Description ..................6 2 Functions and Features ..............6 3 Components and Connectors ............. 8 4 Display Panel and Operating Keypad ..........9 4.1 Keypad ..................9 4.2 LCD Screen Display ............... 10 5 Parameter Settings ................12 6 External Control Interface ..............

  • Page 3: Safety Precautions

    BT103S Peristaltic Pump Manual Safety Precautions Danger • Use the correct voltage indicated on the rating plate label of the pump to avoid any damage. • Do not make any unauthorized dismantling, changes or modifications to the pump which could result in malfunctions or even potential accidents.
  • Page 4 BT103S Peristaltic Pump Manual (DE) SICHERHEITSHINWEISE Gefahr • Verwenden Sie die richtige Spannung, die auf dem Typenschild der angegeben Pumpe ist, um Schäden zu vermeiden. • Nehmen keine unbefugten Demontagen, Änderungen oder Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
  • Page 5 BT103S Peristaltic Pump Manual (FR) CONSIGNES DE SÉCURITÉ Danger • Utilisez la tension correcte indiquée sur la plaque signalétique de la d'éviter pompe afin tout dommage. • Ne procédez pas à des démontages, changements ou modifications autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des accidents.
  • Page 6 BT103S Peristaltic Pump Manual (ES) INSTRUCCIONES DE SEGURIDAD Peligro • Utilice la tensión correcta indicada en la placa de características de la bomba para evitar daños. • No realice ningún desmontaje, cambio o modificación no autorizada en la bomba que pueda provocar un mal funcionamiento o incluso accidentes.
  • Page 7 BT103S Peristaltic Pump Manual (IT) ISTRUZIONI DI SICUREZZA Pericolo • corretta Usare la tensione indicata sull'etichetta della targhetta della pompa per evitare qualsiasi danno. • Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.

  • Page 8: Description

    BT103S Peristaltic Pump Manual 1 Description The BT103S variable-speed peristaltic pump offers basic functions such as start/stop, speed control, prime and reversible direction. It was upgraded with an LCD display, a time dispense mode and an anti-drip function. With the MODBUS RS 485 interface, it can be easily controlled by external devices such as PC, HMI or PLC.
  • Page 9 BT103S Peristaltic Pump Manual optically isolated. • The RS485 MODBUS interface allows easy control through communication with external devices. • Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust- and moisture- proof. • Anti-electromagnetic interference feature; wide input voltage range for complex power environment.

  • Page 10: Components And Connectors

    BT103S Peristaltic Pump Manual 3 Components and Connectors LCD Display Keypad Pump Head Mounting Bracket Coupler DB15 External Control Interface Cooling Fan Power Switch Power Connector Figure 1. Components and Connectors...

  • Page 11: Display Panel And Operating Keypad

    BT103S Peristaltic Pump Manual 4 Display Panel and Operating Keypad Display UP Key DIRECTION Key DOWN Key START/STOP Key MENU Key MODE Key PRIME Key Figure 2. Display Panel 4.1 Keypad UP Key. When pressing it shortly, the last digit of the value will increase by 1.

  • Page 12: Lcd Screen Display

    BT103S Peristaltic Pump Manual Control mode, Time Dispense mode, Logic Level 1 control mode or Logic Level 2 Control mode. PRIME key. Press the key to run the pump at the maximum allowed speed in the direction shown on the display. Press again to return to the previous state.
  • Page 13 BT103S Peristaltic Pump Manual stop. • External Control Mode: Use an external analog signal to control rotation speed. Use an external logic signal to control direction, start and stop. The keypad is disabled. • Time Dispense Mode: Dispense fluid automatically by setting the duration for each dose, the time between doses and the number of cycles.

  • Page 14: Parameter Settings

    BT103S Peristaltic Pump Manual Excellent Good Poor No Connection Figure 6. Wi-Fi Signal Strength 4.2.5 E. Keypad Lock Status It shows the state of the keypad lock. When the keypad is locked, only the START/STOP key will work. On the main screen, press and hold the DIRECTION key to lock the keypad;...
  • Page 15 BT103S Peristaltic Pump Manual Press the START/STOP key to confirm and back to the setting menu screen. To return to the main screen, press and hold the MENU key or press the MENU key a few times until it goes back to the main screen.
  • Page 16 BT103S Peristaltic Pump Manual Note 1. Run Time Unit: Time unit for the dispense duration of Time Dispense mode. The unit can be in days, hours, minutes or seconds. Note 2. Disp Time: Dispense time for Time Dispense mode. It is the dispense duration for each dose.

  • Page 17: External Control Interface

    BT103S Peristaltic Pump Manual 6 External Control Interface DB15 Mark Note ADC_W Positive of external analog input Communication interface, B pole of RS485 Communication interface, A pole of RS485 VCC_W External DC power input CW_W External input signal to control the direction...

  • Page 18: Power Connection

    BT103S Peristaltic Pump Manual 7.2 Power Connection The voltage of the power supply should match what is indicated on the rating plate label of the pump. Please plug the power cord into the IEC Power Connector on the rear of the pump and plug the opposite end of the power cord into an electrical outlet.

  • Page 19: External Control Mode

    BT103S Peristaltic Pump Manual 2) Press the MODE key to change the mode to Internal Control mode (Int shown on the screen). 3) Press the UP or DOWN key to adjust the speed. 4) Press the DIRECTION key to change the rotating direction.
  • Page 20 BT103S Peristaltic Pump Manual CW_W ADC_W AGND RS_W VCC_W 0-5V/0-10V /4-20mA 12VDC Figure 13. DB15 Wiring with External 12VDC Power Source CW_W ADC_W AGND RS_W 0-5V/0-10V /4-20mA Figure 14. DB15 Wiring with Internal 12VDC Power Source 2) Turn on the power switch. The pump will display the main screen.

  • Page 21: Time Dispense Mode

    BT103S Peristaltic Pump Manual direction; close the CW_W switch, the pump will run in a counterclockwise direction. Note: The external DC power source can be 5V or 12V. If it is 24V, a 1.5K resistor is needed to protect the internal circuit.

  • Page 22: Logic Level 1 Control Mode (Footswitch)

    BT103S Peristaltic Pump Manual mode (Disp shown on the screen). 3) Press the MENU key to enter the Setting menu. 4) Set time unit and duration for each dose, pause time between doses and set the number of cycles. 5) Return to the main screen.

  • Page 23: Logic Level 2 Control Mode (Footswitch And Direction Switch)

    BT103S Peristaltic Pump Manual the rear of the pump. RS_W Figure 19. Logic Level 1 Control with Internal 12V Power Source RS_W VCC_W 12VDC Figure 20. Logic Level 1 Control with External 12V Power Source 2) Turn on the power switch. The pump will display the main screen.
  • Page 24 BT103S Peristaltic Pump Manual lev2 32.5rpm Figure 21. Logic Level 2 Control Mode 1) Switch the power off. Wire the DB15 connector as shown in Figure 22 or Figure 23, and connect it to the DB15 port on the rear of the pump.

  • Page 25: Communication Mode

    BT103S Peristaltic Pump Manual 2) Turn on the power switch. The pump will display the main screen. 3) Press the MODE key to change the mode to Logic Level 2 control mode (shows lev2 on the screen). 4) Press the UP or DOWN key to adjust the speed.

  • Page 26: Set Speed

    BT103S Peristaltic Pump Manual VCC_W 12VDC Figure 25. RS485 MODBUS Wiring 2) Turn on the power switch. The pump will display the main screen. 3) Press the MODE key to change the mode to Internal Control mode or Time Dispense mode.

  • Page 27: Maintenance

    BT103S Peristaltic Pump Manual 32.5rpm Figure 26. Wi-Fi Disconnected To set up the Wi-Fi connection 1) Connect your smartphone/pad to the current Wi-Fi network and log in to your cloud control APP account. 2) In the upper right corner of the cloud control home page, click the "+Add Device"...

  • Page 28: Malfunction Solutions

    BT103S Peristaltic Pump Manual 8.3 Malfunction Solutions Malfunction Description Solution Hardware No display 1. Check the power cord 2. Check the fuse. If it was blown, replace it with a 0.5A slow-blow fuse 3. Check the internal power cord connection inside the pump.

  • Page 29: Dimensions

    BT103S Peristaltic Pump Manual work 2. Check if the external control power voltage is provided. 3. Check the connections of the communication board. Hardware Noisy when Check the screws and level on running the pump head to make sure they are secure.

  • Page 30: Naming Rule

    BT103S Peristaltic Pump Manual 10 Naming Rule Version Pump type Drive Type Flow Rate Rotation Speed Function Code IP rating Q: Microflow 05: 50 rpm D: Fixed speed B: Step motor 1-9 for special Default: W: DC brushless T: Laboratory...
  • Page 32 Golander LLC Golander GmbH 4405 International Blvd Dechant-Heimbach-Str. 29 Ste B117, Norcross, GA 30093 53177 Bonn Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...
