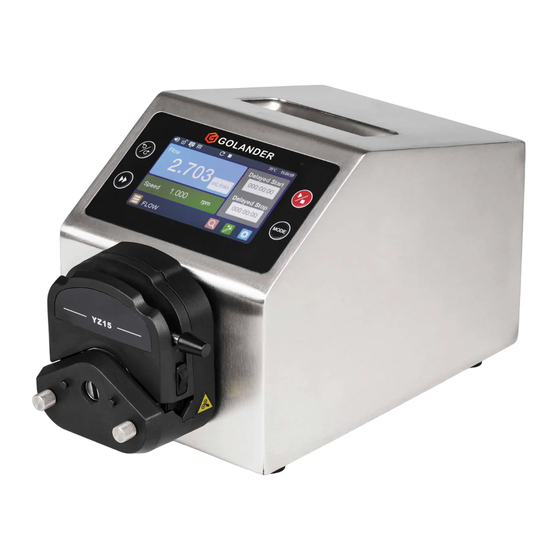

Golander pump BT100L Operating Manual

Intelligent flow peristaltic pump
Hide thumbs Also See for BT100L:
Table of Contents

Advertisement

Quick Links

Download this manual

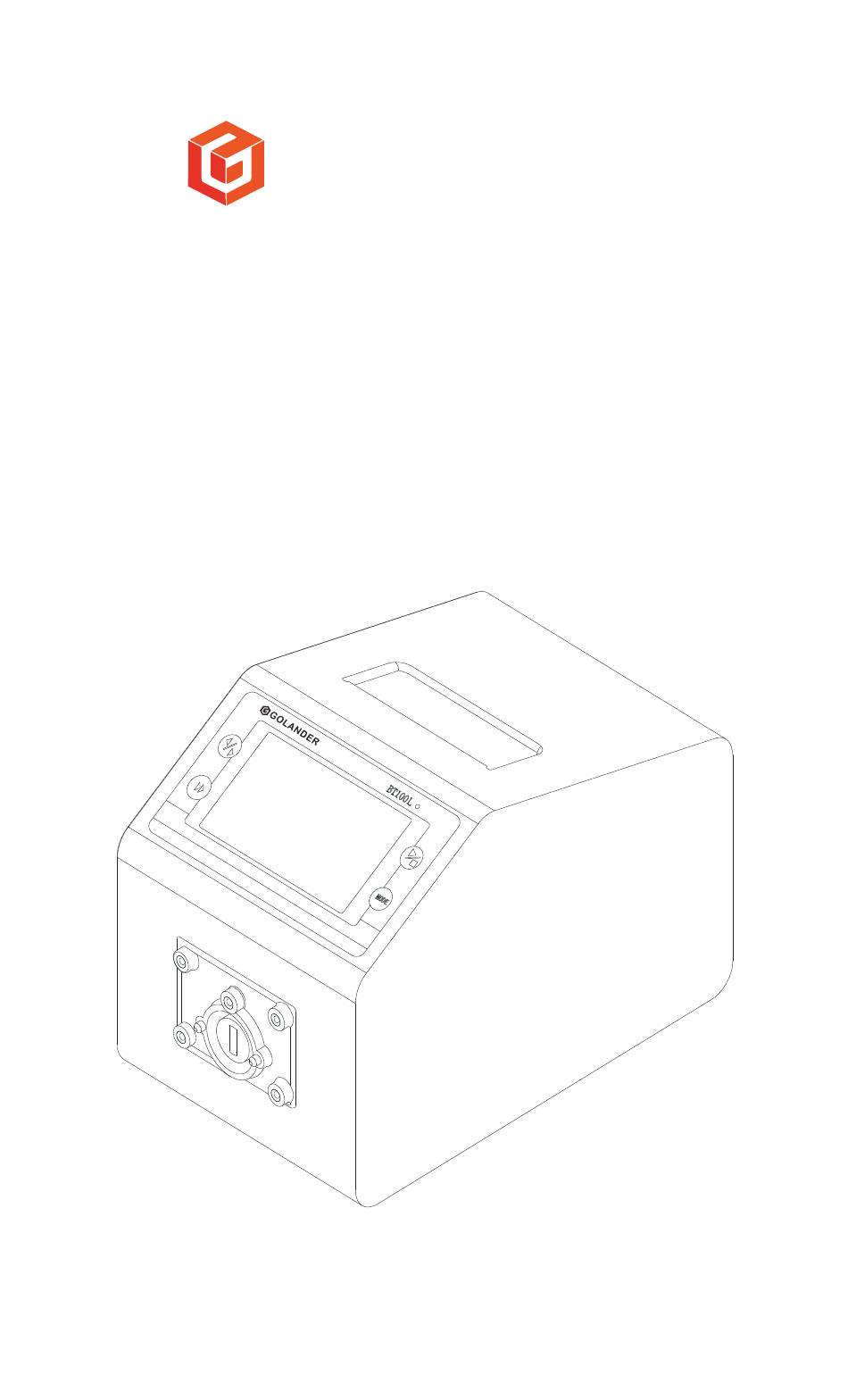

GOLANDER
BT100L/300L/600L (V3)
Intelligent Flow Peristaltic Pump
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT100L and is the answer not in the manual?

Questions and answers

Related Manuals for Golander pump BT100L

Summary of Contents for Golander pump BT100L

  • Page 1 GOLANDER BT100L/300L/600L (V3) Intelligent Flow Peristaltic Pump Operating Manual...

  • Page 2: Table Of Contents

    Contents Safety Precautions ................1 1 Description ..................6 2 Functions and Features ..............6 3 Components and Connectors ............. 8 4 Operating Keypad and Display Panel ..........9 4.1 Keypad ..................9 4.2 LCD Touch Screen Display ............9 4.2.1 Status Bar ..............

  • Page 3: Safety Precautions

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Safety Precautions Danger Use the correct voltage indicated on the rating plate label of the pump • to avoid any damage. Do not make any unauthorized dismantling, changes, or modifications • to the pump which could result in malfunctions or even potential accidents.
  • Page 4 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump (DE) SICHERHEITSHINWEISE Gefahr Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe • angegeben ist, um Schäden zu vermeiden. Nehmen keine unbefugten Demontagen, Änderungen oder • Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
  • Page 5 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump (FR) CONSIGNES DE SÉCURITÉ Danger • Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe afin d'éviter tout dommage. Ne procédez pas à des démontages, changements ou modifications non • autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des accidents.
  • Page 6 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump (ES) INSTRUCCIONES DE SEGURIDAD Peligro Utilice la tensión correcta indicada en la placa de características de la bomba • para evitar daños. No realice ningún desmontaje, cambio o modificación no autorizada en la •...
  • Page 7 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump (IT) ISTRUZIONI DI SICUREZZA Pericolo Usare la tensione corretta indicata sull'etichetta della targhetta della pompa • per evitare qualsiasi danno. Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla • pompa che potrebbero causare malfunzionamenti o addirittura potenziali incidenti.

  • Page 8: Description

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 1 Description The BT-L series of intelligent peristaltic flow pumps is designed to deliver high-precision flow transmission. The latest iteration of this series features a larger true color LCD touch screen, significantly enhancing user-friendliness and providing a more comprehensive display of information.
  • Page 9 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump The inclusion of flow display and calibration, along with Time • Dispense Mode, makes it ideal for fluid transfer applications. The pump can store up to 5 groups of working parameters, • allowing for convenient recall and setup.

  • Page 10: Components And Connectors

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 3 Components and Connectors Handle Drive Color LCD Touch Screen Coupler Pump Head Mounting Bracket RS232 DB15 External Control Interface Power Switch Fuse Power Connector Cooling Fan Figure 1. Components and Connectors...

  • Page 11: Operating Keypad And Display Panel

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 4 Operating Keypad and Display Panel LCD TOUCH SCREEN BT600L DIRECTION START/STOP PRIME MODE MODE Figure 2. Display Panel 4.1 Keypad START/STOP key. Press to start or stop the pump. DIRECTION key. Press to change the pump’s rotating direction between clockwise and counterclockwise.

  • Page 12: Status Bar

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 4.2.1 Status Bar Keypad Tone On/Off Locked/Unlocked Internal Control Footswitch Mode Mode Current Mode Voltage Mode Communication Communication Connected Disconnected Rotation Running/Stop Direction 4.2.2 Operation Display Flow: When the pump is not running, press the flow value to input the desired value in the pop-up window.

  • Page 13: Navigation

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Speed: When the pump is not running, press the speed value to input the desired speed in the pop-up window. Please pay attention to the speed limit. Speed Min: 0.1 Max: 600 Figure 6 Speed Setting Delayed Start: A delayed start can be preset (see section 6.4).
  • Page 14 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Mode Settings Control Mode Control Mode Internal Control Internal Control Foot Switch Reserved Current Control 4-20mA Sound Voltage Control 0-5V Reserved Voltage Control 0-10V Figure 7 Control Mode Settings Lock/Unlock - Press the icon to lock the screen, and press again to unlock the screen.
  • Page 15 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump The rotating ring shows the direction of the pump operation. Counterclockwise operation Clockwise operation Flow Flow Flow Flow 9.000 9.000 9.000 9.000 mL/min mL/min mL/min mL/min Figure 10 Direction Indication In dispense mode, red at the center indicates a stop, green signifies operation, and yellow denotes a pause.
  • Page 16 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Quick Settings - Clear accumulative volume and accumulative cycles, and enable or disable tone. Quick Settings Cumulative Volume Cumulative Cycles Sound Reserved Figure 13 Quick Settings Calibration - For an accurate flow rate display, it is crucial to perform flow rate calibration.
  • Page 17 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump General Setting Pump Head YZ15 Tubing Anti-Drip 0° Anti-Speed 150RPM Communication Figure 15 General Settings • Pump Head: Choose the correct model of the installed pump head from the menu. Access the menu by swiping up and down, as shown in Figure 16.
  • Page 18 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump • Anti-Drip: The peristaltic pump is designed to rotate in reverse by a specified angle when it stops, preventing fluid from dripping from the tubing. You can either choose from preset angles or input custom values to define the back suction angle.
  • Page 19 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump When a password is set and entered (the default password is blank), additional parameter settings will be displayed in the general settings menu. Swipe up and down to navigate through the menu options. General Settings...
  • Page 20 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Pulse Control Level Control Falling edge Low Level Rising edge High level Figure 22 Pulse Signal and Level Signal Calibration - To enhance the accuracy of liquid delivery, it is necessary to calibrate the flow rate (see section 6.3). Follow the prompts of the calibration wizard to ensure that the displayed value accurately corresponds to the actual flow rate.
  • Page 21 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump • Time Settings: Set hour, minute, and second by using the UP and DOWN buttons. Time Settings Hour: Minute: Second: Figure 25 Time Setting • Language Settings: Choose the display language, Chinese or English.
  • Page 22 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump power. It triggers the alarm to alert the user of the stall condition. • Auto Restart: Enabling this feature activates the power loss recovery functionality. When power is restored, the pump resumes its operation from the state it was in before the power loss occurred.

  • Page 23: External Control Interface

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Password (default: empty) Password (default: empty) Figure 29 Password Setting If a password was set, input it, and press OK. This will allow you to return to the General Settings to access the advanced menu (see Figure 21). If no password is set, press OK directly to proceed to the General Settings.

  • Page 24: Operation Instructions

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Ground of internal power source Direction signal output RS_W External start/stop signal input PWM_W External pulse signal input Internal start/stop signal output Table 1 External Control Definition No. DB9 Mark Note Receiving data Send data...

  • Page 25: Power Connection

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 4) Make sure the pump head is properly installed and securely tightened. 5) Ensure the tubing is correctly installed and secured in the pump head before starting the pump. Inspect the tubing for any cracks or defects before operation.
  • Page 26 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Calibration Welcome to the Calibration Wizard. Please set volume and flow rate for testing. Recommended volume: More than 6.000ml for accuracy, or the desired volume for volume dispense. Volume: 6.000 Flow: 9.000 mL/min Figure 30 Flow Rate Calibration As illustrated in , the target flow rate is configured at 9.000...
  • Page 27 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump test data. Note: To interrupt the test, press the Start/Stop key. Press it again to restart the test. The calibration results are calculated, and the previous value is displayed for reference. The new and old values may differ. If the ratio of new to old value is below 0.5 or above 2, check the following:...

  • Page 28: Working Mode

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Calibration After analysis and calculation, No data entered. Please go back to re-enter data or return to the main menu. No Data Entered Figure 33 6.4 Working Mode When the pump is not running, press MODE key to enter the Working Mode window, as shown below.
  • Page 29 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Head： YZ15 Flow Delayed Start Tube： 9.000 Flow 00:00:00 9.000 Speed： 150.0 mL/min Elapsed： 0.000 ml/min Run Time 00:00:00 150.0 00:00:00 Total： 13.980 Speed Cycles 转/分 FLOW FLOW Figure 35 Flow Interface In the flow mode, delayed start and run time can be customized in pop- up windows.
  • Page 30 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Time Dispense Mode • In this mode, the pump dispenses fluid by configuring the dispense duration for each dose, the pause time between doses, and the number of cycles. The system automatically calculates the dispense volume for each dose.

  • Page 31: External Control Mode

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump The current setting will be saved to the “Time Dispense 01” group. To recall a different group of settings, press , select a group number in the window, and then return to the dispense mode window. If you modify the settings, they will be saved to the current group.
  • Page 32 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump CW_W ADC_W AGND RS_W 0-5V/0-10V /4-20mA Figure 42 DB15 Wiring with Internal 12V DC Power Source 2) Power on the pump. The main screen will be displayed. 3) Press the MODE key to select the flow mode.

  • Page 33: Communication Mode

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump will change according to the analog input signal. Closing and opening the RS_W switch again will stop the pump. Closing and then opening the CW_W switch will make the pump rotate clockwise, and closing and opening it again will make the pump rotate counterclockwise.
  • Page 34 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 2) Power on the pump. The main screen will be displayed. Flow Delayed Start 9.000 00:00:00 mL/min Run Time 150.0 00:00:00 Speed FLOW Figure 46 Communication Connected 3) When the main screen shows the pump number (e.g., #01) in the Internal Control Mode, it indicates that the communication is connected.

  • Page 35: Footswitch

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 6.7 Footswitch Power off the pump. Connect the DB15 connector according to the wiring diagrams shown in Figure 48 or , and plug it into the DB15 port Figure 49 located at the rear of the pump. Power on the pump. The main screen will be displayed.

  • Page 36: Maintenance

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump Flow Delayed Start 9.000 00:00:00 mL/min Run Time 150.0 00:00:00 Speed FLOW Figure 50 Footswitch Control 7 Maintenance 7.1 Warranty The drive includes a 3-year warranty covering both labor and parts. Please note that the warranty does not cover any damage resulting from improper usage or mishandling.
  • Page 37 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump board. Hardware Motor does 1. Check the indicator of the driver not work board. 2. Check the wire connection between the motor and the driver board. 3. Check the wire connection between the driver and the main board.

  • Page 38: Dimensions

    Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump not work Software RS485 does 1. Check if the display shows the not work communication is ready. right 2. Reset the address of the pump. 3. Check whether on the bus there are two pumps using the same address If a problem cannot be solved, please contact the manufacturer or distributor for assistance.

  • Page 39: Specifications

    Relative humidity <80% IP grade IP31 Display TFT 4.3” Touch Screen LCD Dimensions (LxWxH) 269X160X183mm Weight 5.5Kg BT100L Suitable Pump Heads and Tubing, Flow Parameters Flow rate No. of Pump head Tubing size (mm) per channel Channels (mL/min) DG6-1 (6rollers) Wall:0.8~1, ID:≤2.4...
  • Page 40 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump 13# 14#, Wall:0.8~1, DT10-48 0.0002~82 ID:≤3.17 YZ15 13# 14# 16# 19# 25# 17# 0.0006~420 YZ25 15# 24# 0.16~420 2xYZ15 13# 14# 16# 19# 25# 17# 0.0006~420 2xYZ25 15# 24# 0.16~420 13# 14# 16# 19# 25# 17# YT15 0.006~570...
  • Page 41 Golander BT100L/300L/600L Intelligent Flow Peristaltic Pump BT600L Suitable Pump Heads and Tubing, Flow Parameters Pump No. of Flow rate per Tubing size head Channels channel (mL/min) YZ15 13# 14# 16# 19# 25# 17# 18# 0.006~1700 YZ25 15# 24# 0.16~1700 2xYZ15 13# 14# 16# 19# 25# 17# 18# 0.006~1700...
  • Page 44 Golander LLC Golander GmbH 4405 International Blvd Dechant-Heimbach-Str. 29 Ste B117, Norcross, GA 30093 53177 Bonn Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...
