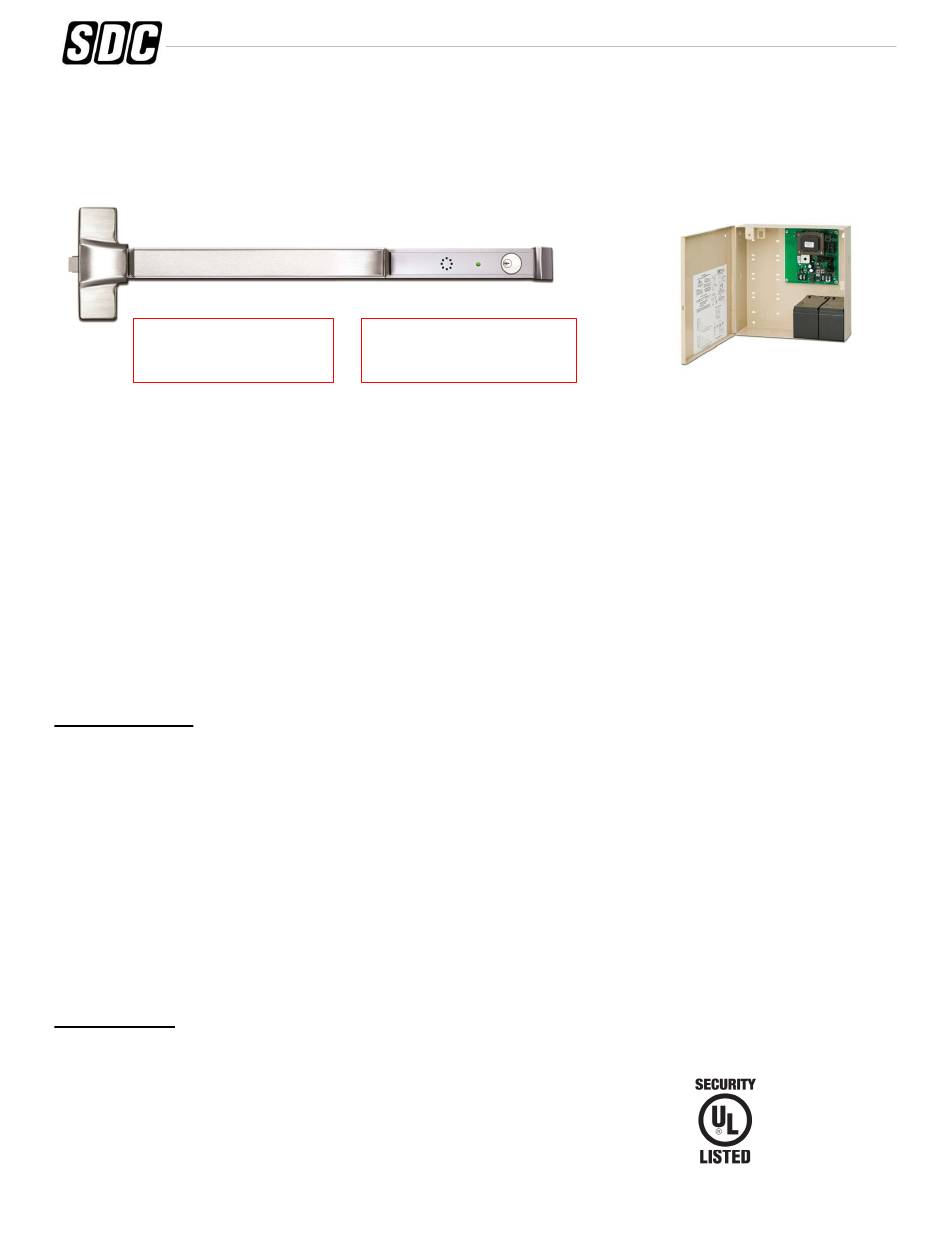

Rim Mount, Vertical Rod, or Mortise Exit Device
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible
unlock delay period of 15 seconds will begin. Meanwhile, the person exiting must wait to egress, allowing personnel or security time
to respond to the alarm. After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life
safety emergency, the device will immediately unlock upon loss of power or when powered by a fire control supervised power supply.
The included signage provides clear and comprehensive instructions of the door egress operation for persons without prior
knowledge of the exit delay, including the sight and hearing impaired.
S6000-101 Applications include:

Restricting the egress of wandering patients for their own safety.

Restricting the egress of commercial center patrons for security application needs.

Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs.

Reducing shoplifting and employee theft.

Compatible with access control for entry using Electrified Trim for rim and vertical rod devices.

When using mortise devices the mortise case is electrified to control entry.
Standard Features:
Egress Delay

15 second exit delay

1 or 2 second nuisance delay

Optional 30 second delay with AHJ approval
Built-In Visual & Audible Annunciation

Armed mode

Nuisance mode

Irreversible egress mode

Release mode
Trigger Modes

Egress alarm triggered by Push Pad

Trigger input from external device (Pair of Doors)

Door opened in secure mode (Door Forced or Prop)
Code Compliance

IFC International fire Code

IBC International Building Code

NFPA 101 Life Safety Code

NFPA 1 Uniform Fire Code

California Building Code with the exception of Sec. 11B-309.4 2013 edition.

Field selectable automatic or manual power up after emergency release or power loss.
Use of manual power up complies with California Building Code (OSHPD) requirements.
th

UL 294, 6 Ed performance Level I – Line Security, Destructive Attack, Standby Power
and Level IV Endurance
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-S6000-101
INSTALLATION INSTRUCTIONS
S6000-101 DEVICE (ALL-IN-ONE DEVICE)
DELAYED EGRESS SYSTEM
*NOT COMPATIBLE WITH
ELECTRIC RIM STRIKES
KEEP PUSHING. THIS DOOR WILL OPEN
IN 15 SECONDS. ALARM WILL SOUND.
California Building Code
Compliant
REV D.3
Control Inputs

Field-selectable 1 to 30 second request-to-exit with anti-tailgate
and door prop alarm.

Bypass

Reset

Remote trigger (for Pairs of Doors)

DPS (Required for Door Forced, Prop and Anti-Tailgate)
Monitoring Outputs

Secure/Unsecure status

Egress initiation status

Released/Bypass status
Recommended Accessories

S6000DES Series – Delayed Egress Auxiliary Exit Device
(for Pair of Doors)

600 Series regulated & filtered power supply –
602RF (1 Amp) or 631RF (1.5 Amp)

Door contact (included) – MC-4 recessed magnetic switch

Power Transfer Device – PTH-10, PTM-10 Series, PT-5
01-25 Page 1
600 Series Power Supply
(sold separately)
FWAX
SPECIAL LOCKING
ARRANGEMENTS
