A. Door Preparation:

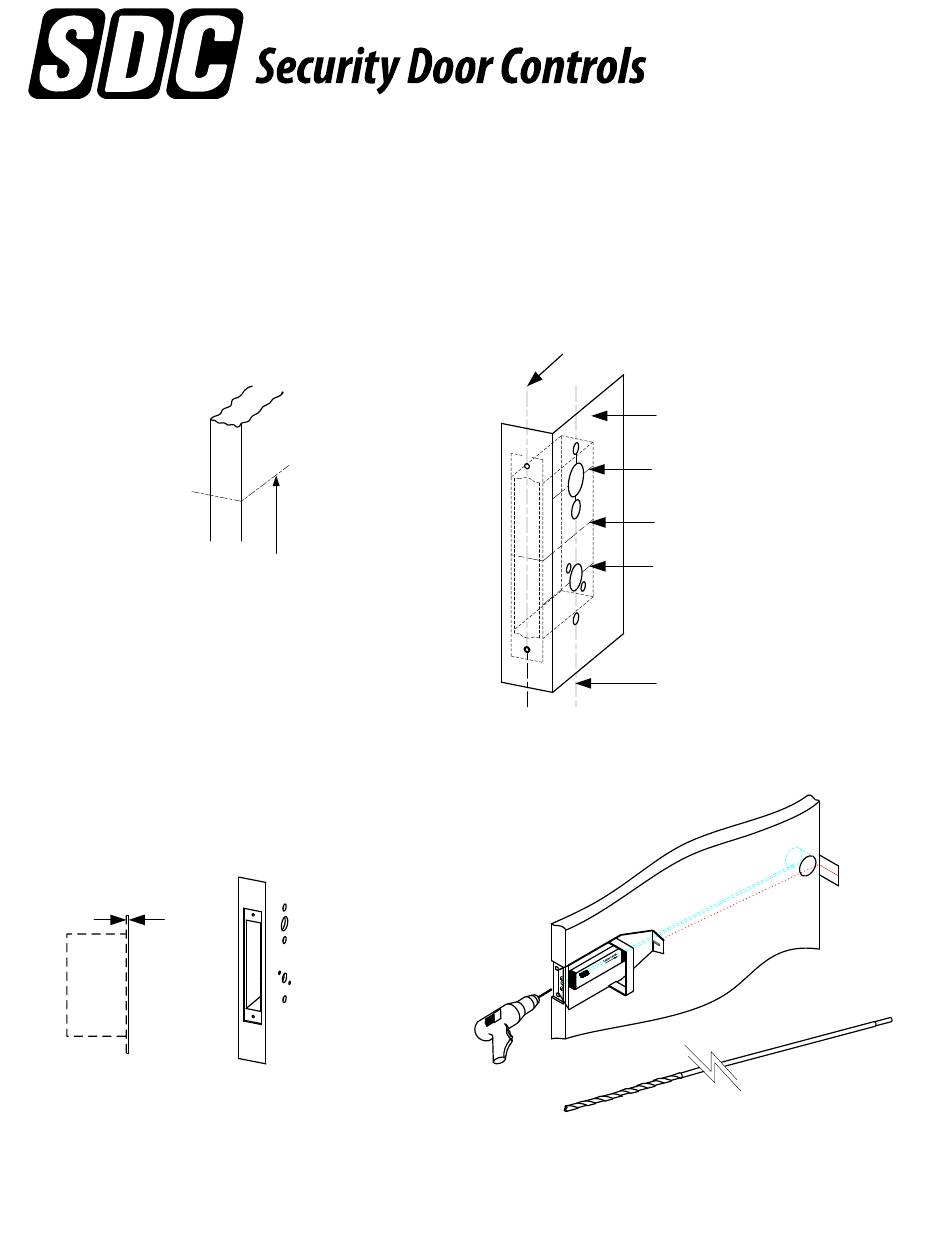

1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
Height line
3. Mortise door edge according to measurements on
installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
7/32"
P:\INSTALLATION INST\Electrified Lockset\INST-Z7835-E (12VDC)
INSTALLATION INSTRUCTIONS
12VDC Z7835 SERIES MORTISE LOCK
C L
of lever
or knob
REV B
C
L of
door edge
OPTIONAL
DOOR CORE DRILLING GUIDE
#7000-DG
11-17
Page 1
Installation
template
of cylinder
C L
of lockcase
C L
of lever
C L
or knob
Vertical centerline
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
