When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an
irreversible unlock delay period of 15 seconds will begin. Meanwhile, the person exiting must wait to egress, allowing
personnel or security time to respond to the alarm. After the delay period has expired, the device unlocks, permitting
egress until the device is reset. In a life safety emergency, the device will immediately unlock upon loss of power or
when powered by a fire control supervised power supply. The included signage provides clear and comprehensive
instructions of the door egress operation for persons without prior knowledge of the exit delay, including the sight and
hearing impaired.
S6000-101 Applications include:
Restricting the egress of wandering patients for their own safety.
Restricting the egress of commercial center patrons for security application needs.
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs.
Reducing shoplifting and employee theft.
Compatible with access control for entry using Electrified Trim for rim and vertical rod devices.
When using mortise devices the mortise case is electrified to control entry.
Standard Features:
Egress Delay
15 second exit delay
1 or 2 second nuisance delay
Optional 30 second delay with AHJ approval
Built-In Visual & Audible Annunciation
Armed mode
Nuisance mode
Irreversible egress mode
Release mode
Trigger Modes
Egress alarm triggered by Push Bar
Trigger input from external device (Pair of Doors)
Door opened in secure mode (Door Forced or Prop)
Code Compliance
IFC International fire Code
IBC International Building Code
NFPA 101 Life Safety Code
NFPA 1 Uniform Fire Code
California Building Code with the exception of Sec. 11B-309.4 2013 edition.
Field selectable automatic or manual power up after emergency release or power loss.
Use of manual power up complies with California Building Code (OSHPD) requirements.
th
UL 294, 6
Ed performance Level I – Line Security, Destructive Attack, Standby Power
and Level IV Endurance
P:\INSTALLATION INST\Delayed Egress\INST-S6000-101.vsd

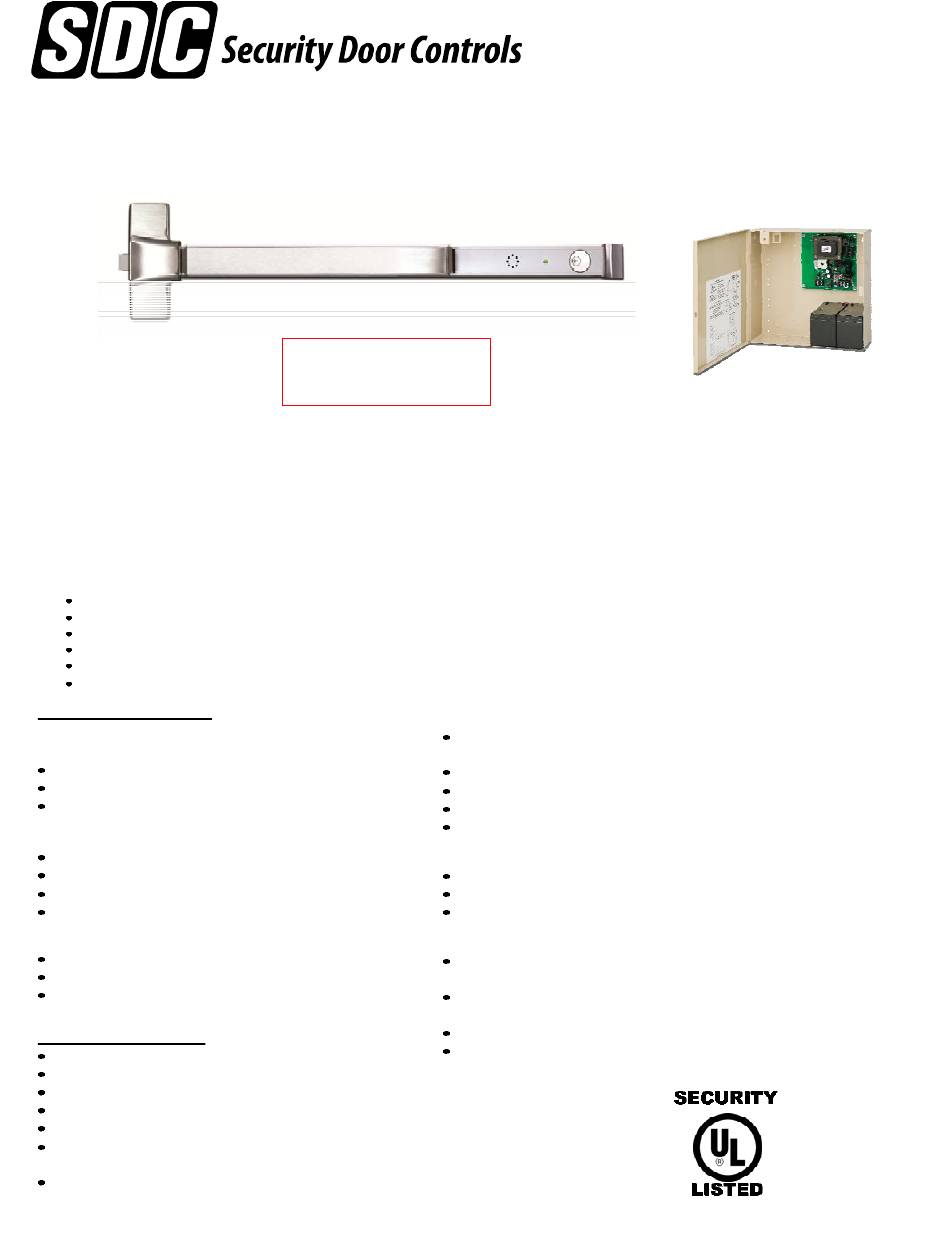

DELAYED EGRESS SYSTEM
S6000-101 DEVICE (ALL-IN-ONE DEVICE)
Rim Mount, Vertical Rod, or Mortise Exit Device
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
Rev D.1
10-19
Control Inputs
Field-selectable 1 to 30 second request-to-exit with anti-tailgate
and door prop alarm.
Bypass
Reset
Remote trigger (for Pairs of Doors)
DPS (Required for Door Forced, Prop and Anti-Tailgate)
Monitoring Outputs
Secure/Unsecure status
Egress initiation status
Released/Bypass status
Recommended Accessories
S6000DES Series – Delayed Egress Slave Exit Device
(for Pair of Doors)
600 Series regulated & filtered power supply –
602RF (1 Amp) or 631RF (1.5 Amp)
Door contact (included) – MC-4 recessed magnetic switch
Power Transfer Device – PTH-10, PTM-10 Series, PT-5
Page 1
600 Series Power Supply
(sold separately)
*NOT COMPATIBLE WITH
ELECTRIC RIM STRIKES
FWAX
SPECIAL LOCKING
ARRANGEMENTS
