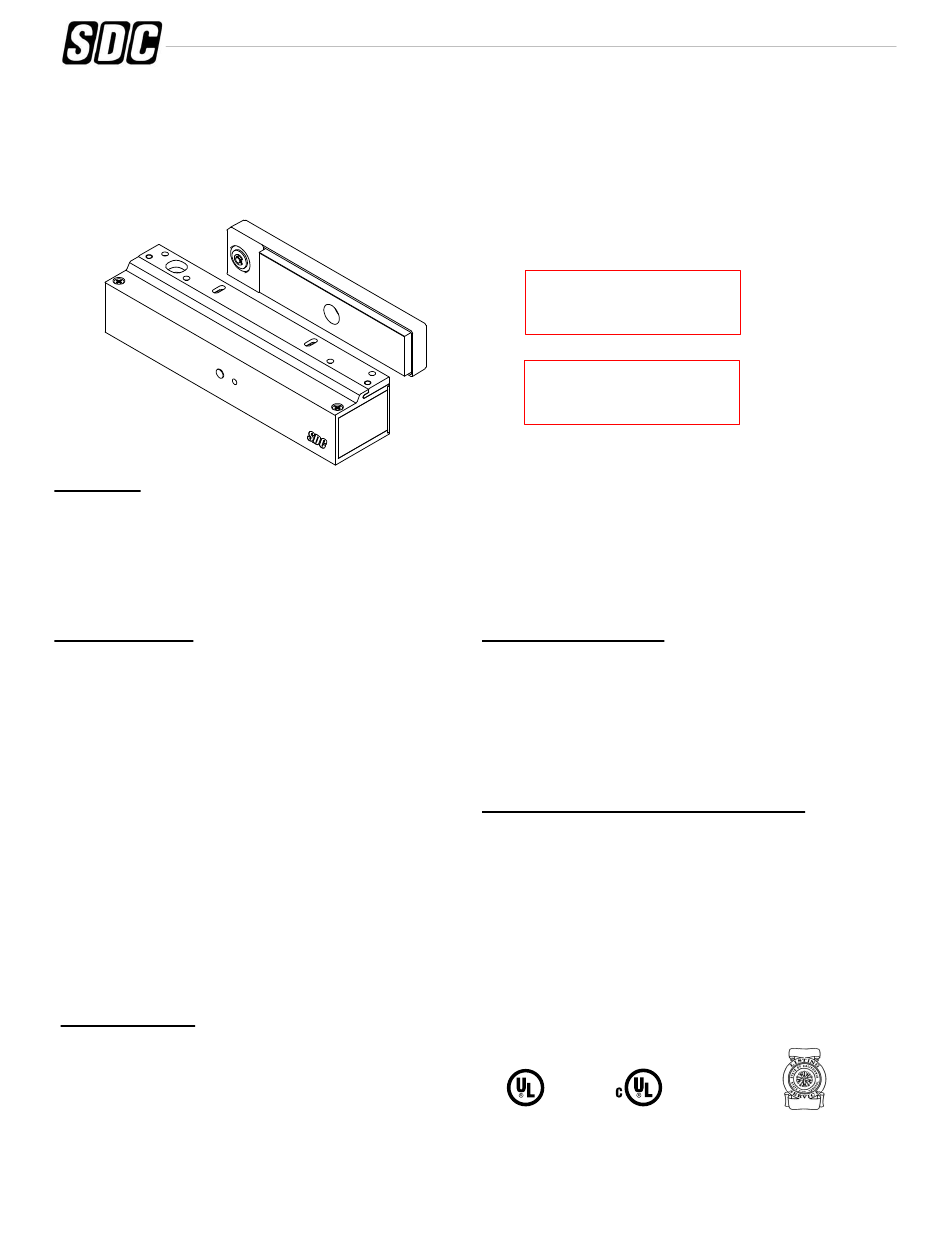

SDC MINI EXIT CHECK 1581S Installation Instructions Manual

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Application
When unauthorized egress is initiated, the Exit Check
must wait allowing personnel or security to respond. The door unlocks after the 15 second delay period has elapsed, permitting egress. A signal from
the fire/life safety system will release the lock immediately for uninhibited egress in an emergency.
®
Exit Check applications include:

Restricting the egress of patients for their own safety.

Restricting the egress of commercial center patrons for minimum security application needs.
Standard Features

Small & compact size

650 lbs. holding force

15 or 30 second Exit Delay when activated.

1 second Nuisance Delay

Subdued Alarm with 2 Distinct Tones:

- Alarm Activation Intermittent

- Door Release – Continuous

Choice of Activation Trigger:

- Door Movement

- Exit Device w/ REX Switch

- Touch Sense Bar w/REX Switch

Auto Power-Up – Occurs when power is restored and

or the fire panel is restored (when allowed by code).

Manual Power-Up – This is a UBC & California Building Code
Compliant Feature – Only after power restoration and fire panel
reset may the lock be reset manually at the opening. A power-
up reset key switch or keypad is required adjacent to the door.

Instant Reset from Bypass mode for interfacing with Patient
Monitoring Systems.

Vandal resistant Proximity Sensor Switch

Auto Sensing 12/24VDC input power

Low Power Consumption

5 foot Power Cable
Optional Features

DPS Door Position Switch Output

BAS Bond Alert Sensor Switch Output

Tandem Cable (for pair of doors)
3' Cable – 1581S-TC3
10' Cable – 1581S-TC10
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-1581S
INSTALLATION INSTRUCTIONS
®
MINI EXIT CHECK DELAYED EGRESS EMLOCK
®
delays egress through the door for a period of 15 seconds. Meanwhile, the person exiting
REV F.4 10-24
1581S
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR WILL OPEN
IN 15 SECONDS. ALARM WILL SOUND.
Electrical Specifications

For interior applications only

Power/Current Requirements:
- 12 - 24VDC Auto-sensing
- 320 mA @ 24VDC
- 600 mA @ 12VDC

Lock Status Relay Rating: 1 amp @ 30V resistive

DPS Rating: 250 mA @ 30V resistive

BAS Option: 250 mA @ 30V resistive
Building & Fire Life Safety Code Compliant

1581S with ND, NH, or NC modes
IBC International Building Code
IFC International Fire Code
NFPA 101 Life Safety Code
NFPA 1, UFC, Uniform Fire Code
UBC Uniform Building Code
CBC California Building Code
SBC Standard Building Code

1581S with BD, BH, or BC modes
BOCA National Building Code compliant
Chicago Building Code compliant
Only the 1581S and the 1581T have been UL listed as "Special Locking
Arrangements" to UL standard 294 and NFPA 101.
LISTED
USA
GWXT/GWXT7 Auxiliary Locks
FWAX Special Locking Arrangements
Page 1
®
California Building
Code Compliant
LISTED
CANADA
California State
Fire Marshal Listed
CSFM #3774-0324:103
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
