801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
MODELS:

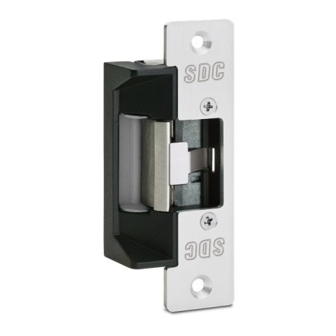

45-4S – 4.875" (124mm) Square corners
for hollow metal frames.
FEATURES:
For 5/8" latch or 3/4" latch with 1/8" door gap.
Latch bolt monitor standard.
Keeper closed & deadlocked standard.
Field selectable failsafe / failsecure.
Field selectable voltage, 12/24V AC/DC
AC with Rectifier (BR64XL)
1/4" horizontal alignment adjustment.
P:\INSTALLATION INST\ELECTRIC STRIKES\INST-45\INST-45.vsd
INSTALLATION INSTRUCTIONS
45 SERIES ELECTRIC STRIKES
REV L
05-18
Page 1

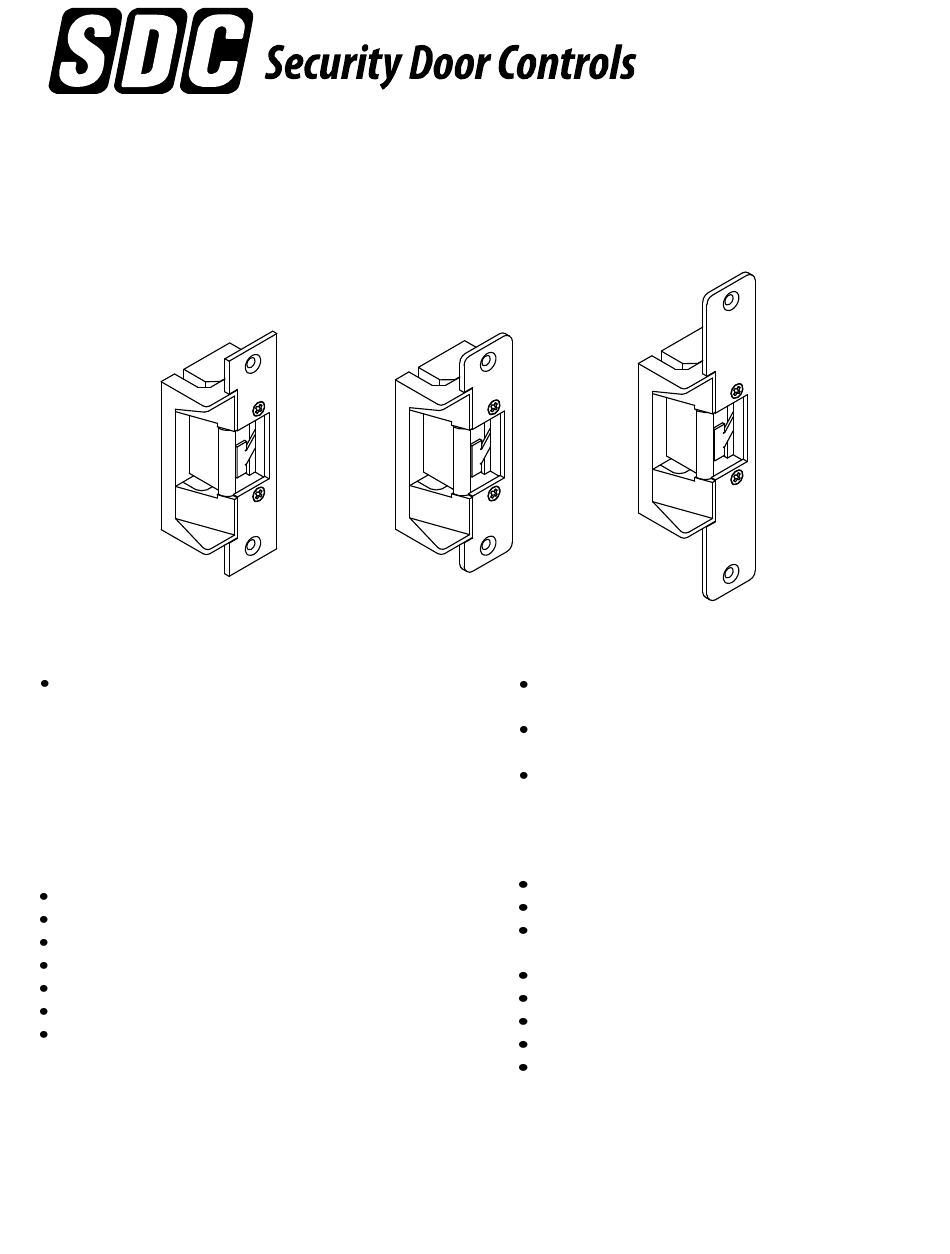

45-4R – 4.875" Radius corners for
aluminum frame.
45-6R – 6.875" Radius corners for
aluminum/wood frame.
45-7R – 7.938" Radius corners for
aluminum/wood frame
Plug-in wire connectors.
Low profile, 1-3/16" deep
All stainless steel parts with durable die
cast body for corrosion resistance.
Fewer moving parts for maximum life.
630 stainless steel standard.
ANSI A156.31
UL Listed (BP10254)
U.S. Patent #7,540,542 B2
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
