SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 digit PIN Codes
Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
IMPORTANT: It is highly recommended that installers first view the "E75 STANDALONE ELECTRONIC KEYPAD"
video available online at https://www.sdcsecurity.com/videos.htm
1
Place provided E75
Template on inside of
door to mark hole
locations.
P:\INST INSTRUCTIONS\ACCESS CONTROLS\INST-E75

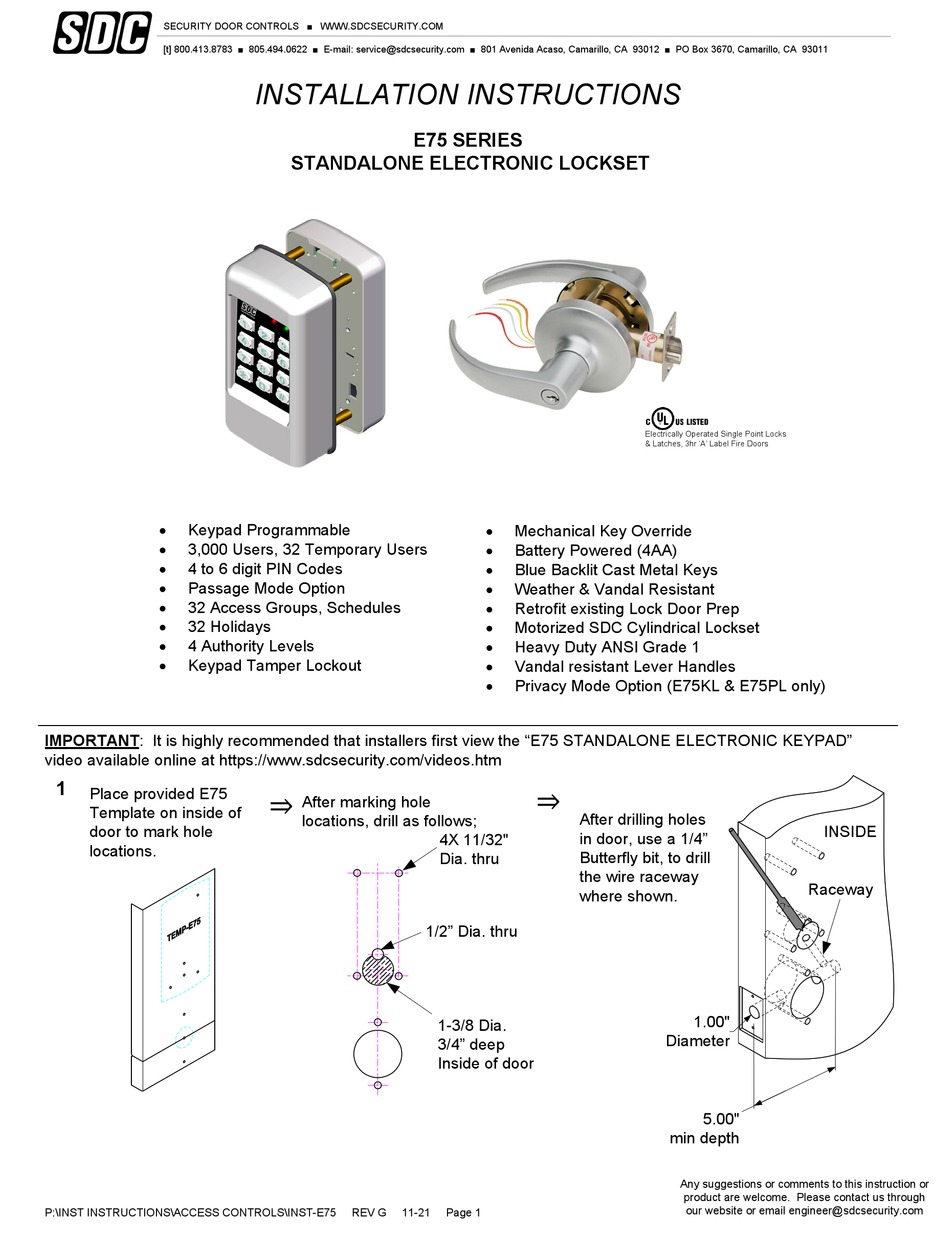

INSTALLATION INSTRUCTIONS

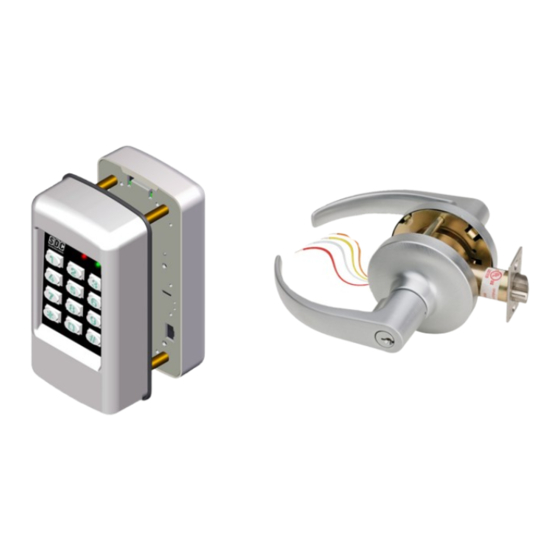

E75 SERIES
STANDALONE ELECTRONIC LOCKSET
⇒
After marking hole
locations, drill as follows;
1/2" Dia. thru
REV G
11-21
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit existing Lock Door Prep
Motorized SDC Cylindrical Lockset
Heavy Duty ANSI Grade 1
Vandal resistant Lever Handles
Privacy Mode Option (E75KL & E75PL only)
⇒
After drilling holes
in door, use a 1/4"
4X 11/32"
Butterfly bit, to drill
Dia. thru
the wire raceway
where shown.
1-3/8 Dia.
3/4" deep
Inside of door
Page 1
Electrically Operated Single Point Locks
& Latches, 3hr 'A' Label Fire Doors
Raceway
1.00"
Diameter
5.00"
min depth
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
INSIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC EntryCheck E75 Series
Summary of Contents for SDC EntryCheck E75 Series
- Page 1 Weather & Vandal Resistant 32 Access Groups, Schedules Retrofit existing Lock Door Prep 32 Holidays Motorized SDC Cylindrical Lockset 4 Authority Levels Heavy Duty ANSI Grade 1 Keypad Tamper Lockout Vandal resistant Lever Handles ...
- Page 2 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Pass a small pull wire through the Install the Lockset. Attach the Pull Wire to the Cylindrical raceway hole.
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Steps 8-10 for E75KL and E75PL Privacy models only, Install the Keypad and Battery pack to the door Carefully route all the wires from the keypad thru the battery pack backplate...
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 1.813 4X Ø11/32” 4.448 .681 Ø1/2” 3.365 .279 Ø1-3/8” INSIDE ONLY 2-3/4” E75 TEMPLATE LAYOUT HOLLOW METAL DOOR 161 DOOR PREP 2-3/4”...
- Page 5 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Quick Start Programming Instructions E75 EntryCheck For a complete list of lock programming functions, including programming for the E75KL/E75PL Privacy Lock, refer to the E75 Programming Guide included with this lock. Test the Lock Operation To test lock operation before initialization, enter *741. This temporary code will unlock the E75 for testing purposes. Once a lock initialization has been performed, this code is no longer active until a hardware reset is performed which will erase all the users and return the E75 back into the uninitialized factory default condition. ...
- Page 6 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Additional E75 Programming Refer to the E75 Programming Guide for a complete list of lock programming functions. Change a User PIN Code: 03# User No.# New PIN Code # New Pin Code # Example 1: Press 03# 01# 123123# 123123# You have just changed the Administrator’s Pin Code to 123123 NOTE: The Administrator’s PIN code must be 6 digits in length. All other PIN codes may be 4‐6 digits in length Example 2: Press 03# 04# 1220# 1220# You have just changed User #04's Pin code to 1220 Delete a User: 02# User No.# Example: Press 02# 04# You have just Deleted User #04 Set Entry Mode : 05# Mode # Example 1: Press 05# 1# ...
