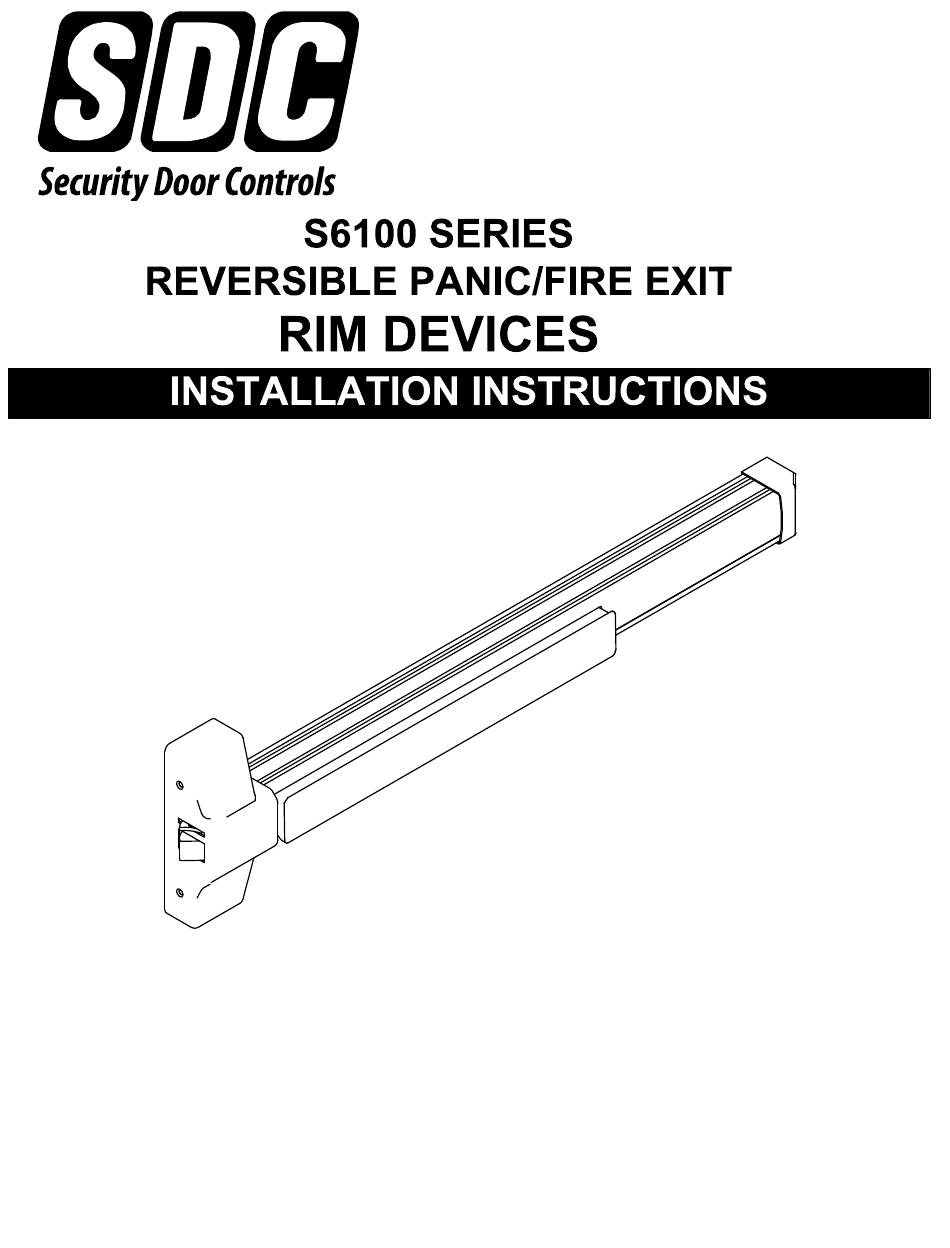

SDC S6100 Series Installation Instructions

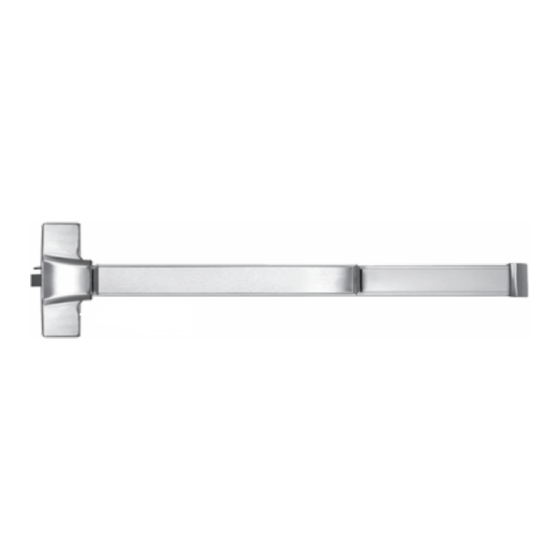

Reversible panic/fire exit rim devices

These instructions are presented a in step by step sequence.

Please read it through before installation.

Note: The dimensions of the Template are shown in inches. See

attached page for the Metric Conversion Table for millimeters.

P:\INSTALLATION INST\Delayed Egress\INST-S6000DE_KDE.vsd

801 Avenida Acaso, Camarillo, Ca. 93012

• (805) 494-0622 • www.sdcsecurity.com

E-mail: service@sdcsecurity.com

Rev B

02-17

Page 9

Table of Contents

Need help?

Do you have a question about the S6100 Series and is the answer not in the manual?

Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com E-mail: service@sdcsecurity.com These instructions are presented a in step by step sequence. Please read it through before installation. Note: The dimensions of the Template are shown in inches. See attached page for the Metric Conversion Table for millimeters.
Page 2 End Cap Bracket A. DESIGNATION OF PARTS Chassis End Cap Dogging Device (Fire Exit Hardware is not Chassis Equipped with this device) Push Bar Chassis Cover Strike Latch Assembly B. TYPE OF INSTALLATION A. Single Door B. Double Door with Mullion C.
Page 3 STOP LINE Jamb D. INSTALL STRIKE TO FRAME 1. Place strike over the drilled holes, and attach it to Door the jamb or mullion with the supplied screws. 2. If installing with a vertical rod device for double of Device doors, and additional Double Door Strike must be Strike used in place of the regular strike provided.
Page 4 Mark mounting holes through End Cap Bracket after device is level NOTE: The Device bar has 3 different lengths; Standard 3' Door Device = Approx 33" Standard 3.5' Door Device = Approx 40" Latch Standard 4' Door Device = Approx 44" Assembly The bar lengths of devices are pre-cut for 36", 42"...
