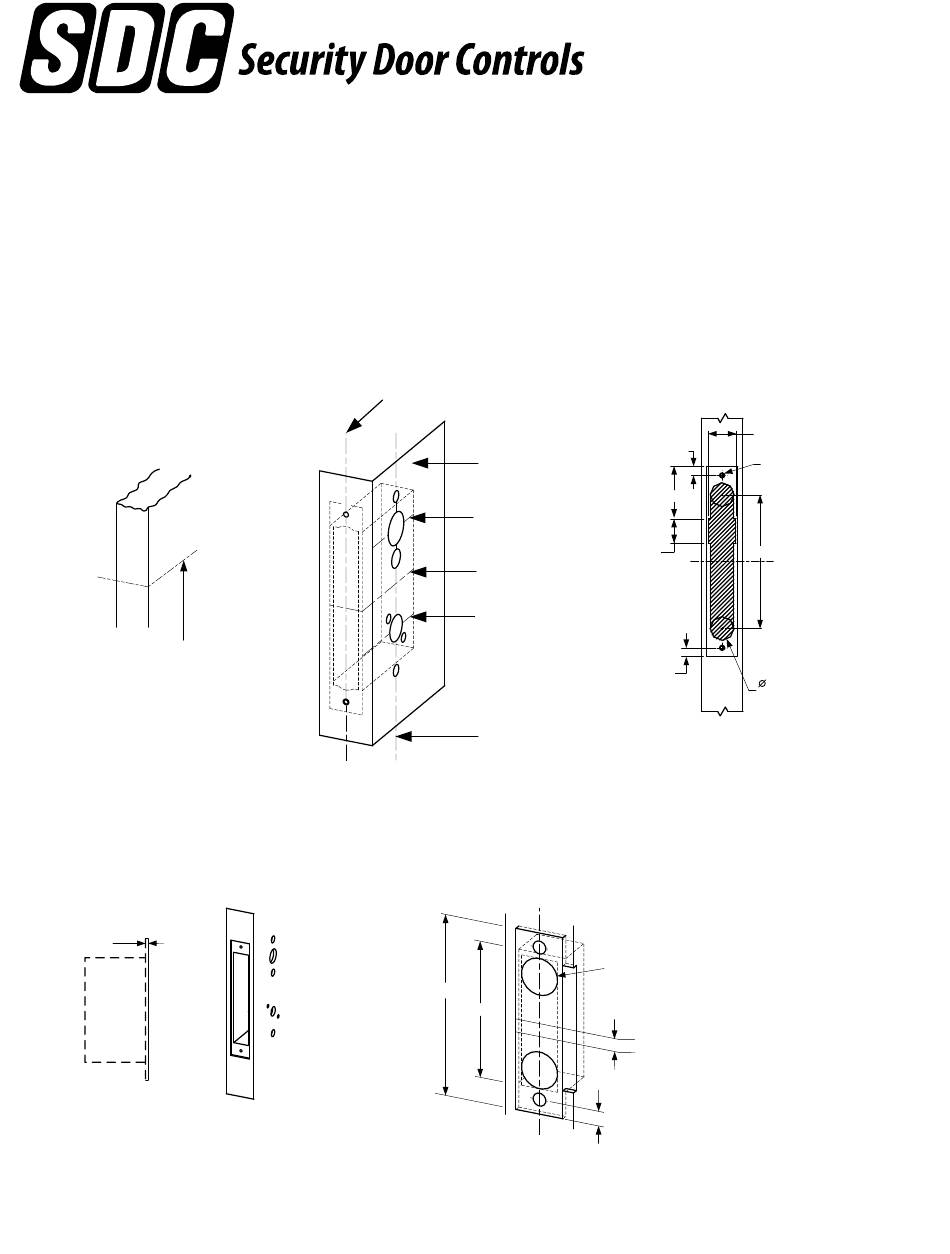

A. Door Preparation:
1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
*
NOTCH OPENING FOR MOTOR
ON WOOD DOORS ONLY
Height line
C L
of lever
or knob
3. Mortise door edge according to measurements on
installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
7/32"
P:\INSTALLATION INST\Electrified Lockset\INST-Z7600
INSTALLATION INSTRUCTIONS

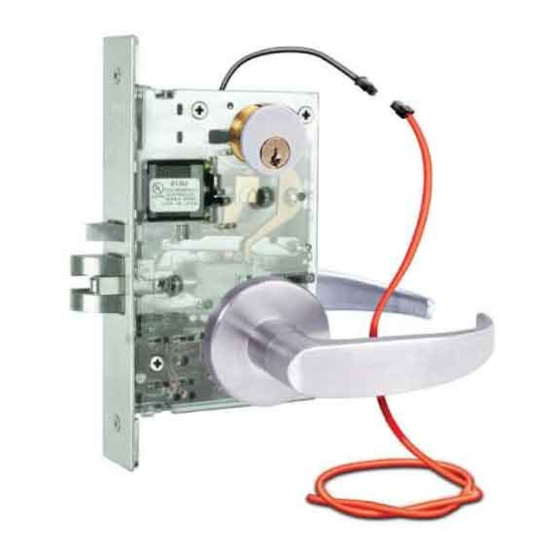

Z7600 SERIES MOTORIZED RETRACTION
MORTISE LOCK SET
C
L of
door edge
B. Strike Installation:
4-7/8"
REV B
04-18
Page 1
Installation
template
of cylinder
C L
1-1/2"
of lockcase
(1-3/4" DEEP)
C L
of lever
C L
or knob
Vertical centerline
C L
Jamb
1" Holes
1-1/8" Deep
3-17/32"
Strike
3/8"
3/8"
1-1/4"
(1-3/4" DEEP)
3/8"
2X 12-24 WMS
2-1/4"
5-5/8"
WOOD
DOOR
3/8"
1" hole
4-3/4" DEEP
1. Align strike template on jamb.
Be sure to keep 3/8" distance
between lock centerline and
strike centerline. Recess
5/32" for flush fit of strike and
dust box.
2. Mortise jamb according to
measurement of strike template.
Then fit strike and dust box into
C L
Lock C L
frame and secure into place with
supplied screws.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
*
