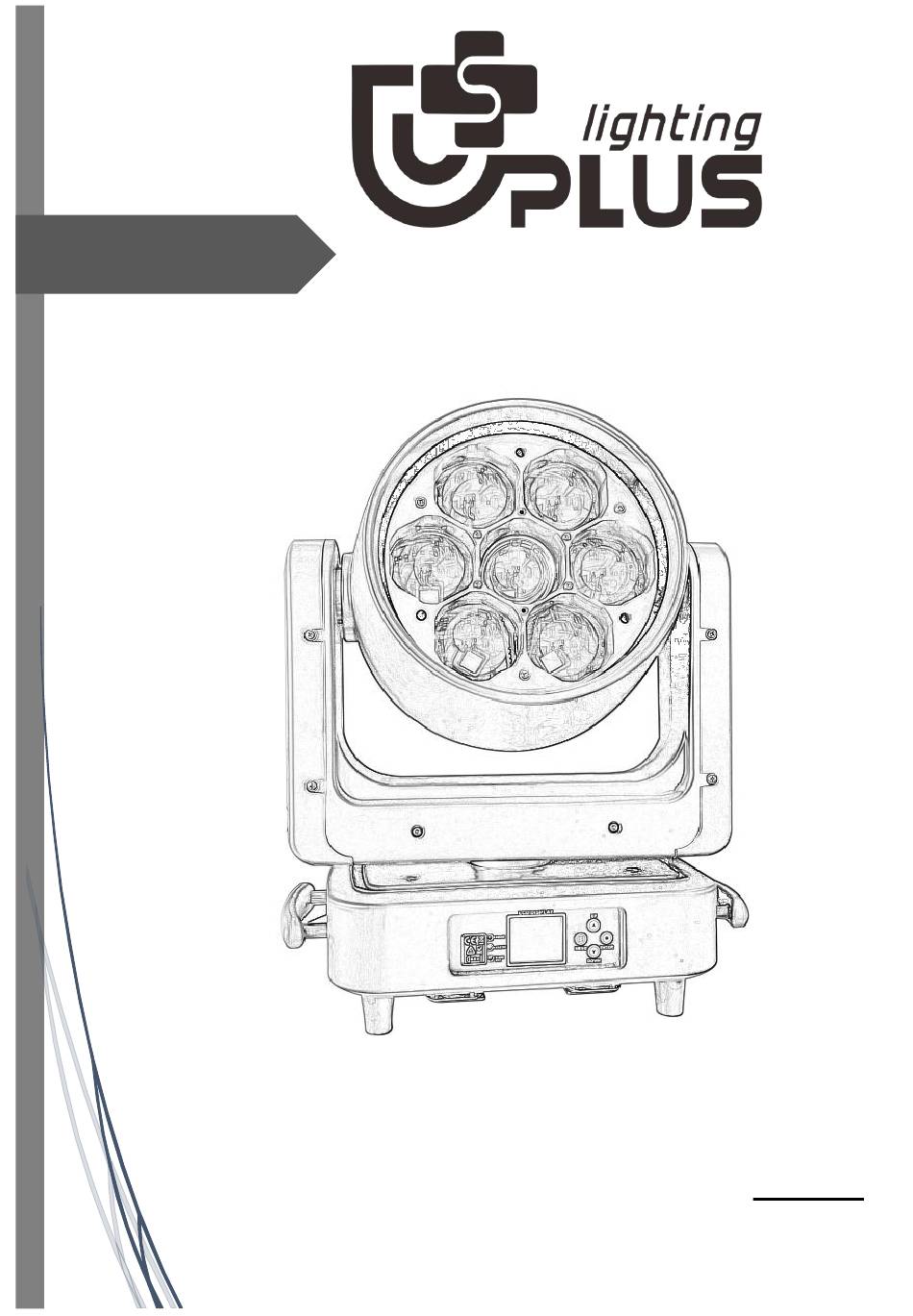

- Page 1 User manual W760 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………7-8 Dimension …………………………………………………………………………………………8 Trouble Shooting…………………………………………………………………………………9 Fixture Cleaning………………………………………………………… ………………………9 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals. -
Page 5: Control Menu
3.Control Menu 1. Function Display: Shows the various menus and the selected functions 2.LED： POWER ON Power On DMX input present 3. Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions 4. -
Page 7: Dmx Channels
4.DMX Channels 15 CH Mode 15CH Function DMX Values Details 0-255 0-540° Pan Fine 0-255 16 bit Tilt 0-255 0-270° Tilt Fine 0-255 16 bit P/T speed 0-255 From slow to fast 0-69 No function 70-79 Moving Blackout Open 80-89 Moving Blackout Off 90-99 PanInvert Open... -
Page 8: Dimension
216-246 Red -> down, Green=0, Blue=full, White=0 CH12 Virtual Color Wheel Blue (Red=0, Green=0, Blue=full, White=0) 248-255 NULL CH13 Zoom 0-255 wide to narrow 0 - 15 LED_EFFECT_OPEN 16 - 131 LED_EFFECT_FLASH 132 - 139 LED_EFFECT_THUNDER CH14 Shutter 140 - 181 LED_EFFECT_PULSE_CLOSE_FADE_OPEN 182 - 189 LED_EFFECT_OPEN... -
Page 9: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
