Summary of Contents for Uplus Lighting W3725

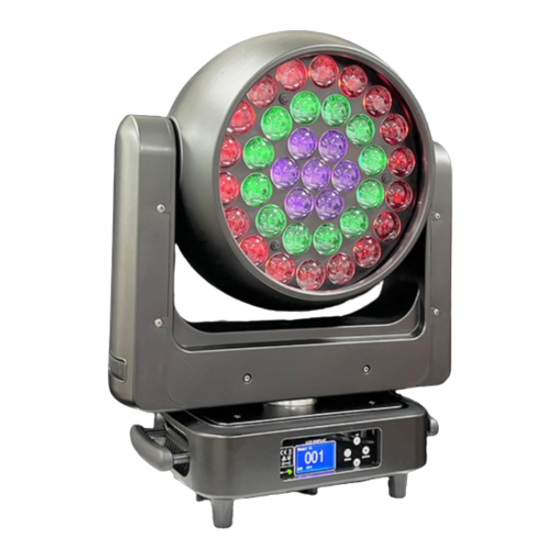

- Page 1 User manual W3725 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………6-8 Dimension …………………………………………………………………………………………9 Trouble Shooting…………………………………………………………………………………10 Fixture Cleaning………………………………………………………… ………………………10 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Control Menu
3.Control Menu 1. Function Display: Shows the various menus and the selected functions 2.LED： POWER ON Power On DMX input present 3. Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions 4. -
Page 6: Dmx Channels
4.DMX Channels 19 CH Mode 19CH Function DMX Values Details 0-255 0-540° Pan Fine 0-255 16 bit Tilt 0-255 0-270° Tilt Fine 0-255 16 bit P/T speed 0-255 From slow to fast Zoom 0-255 wide to narrow 000‐009 No function 010‐014 Reset SPECIAL FUNCTIONS... - Page 7 065‐069 Open 070‐084 Strobe 2: opening pulse, fast slow 085‐089 Open 090‐104 Strobe 3: closing pulse, fast slow 105‐109 Open shutter effect 110‐124 Strobe 4: random strobe, fast slow 125‐129 Open 130‐144 Strobe 5: random opening pulse, fast slow 145‐149 Open 150‐164 Strobe 6: random closing pulse, fast...
- Page 8 085‐089 Open 090‐104 Strobe 3: closing pulse, fast slow 105‐109 Open 110‐124 Strobe 4: random strobe, fast slow 125‐129 Open 130‐144 Strobe 5: random opening pulse, fast slow 145‐149 Open shutter effect 150‐164 Strobe 6: random closing pulse, fast slow 165‐169 Open 170‐184...
-
Page 9: Dimension
5.Dimension... -
Page 10: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
