Summary of Contents for Precor Resolute RSL 315

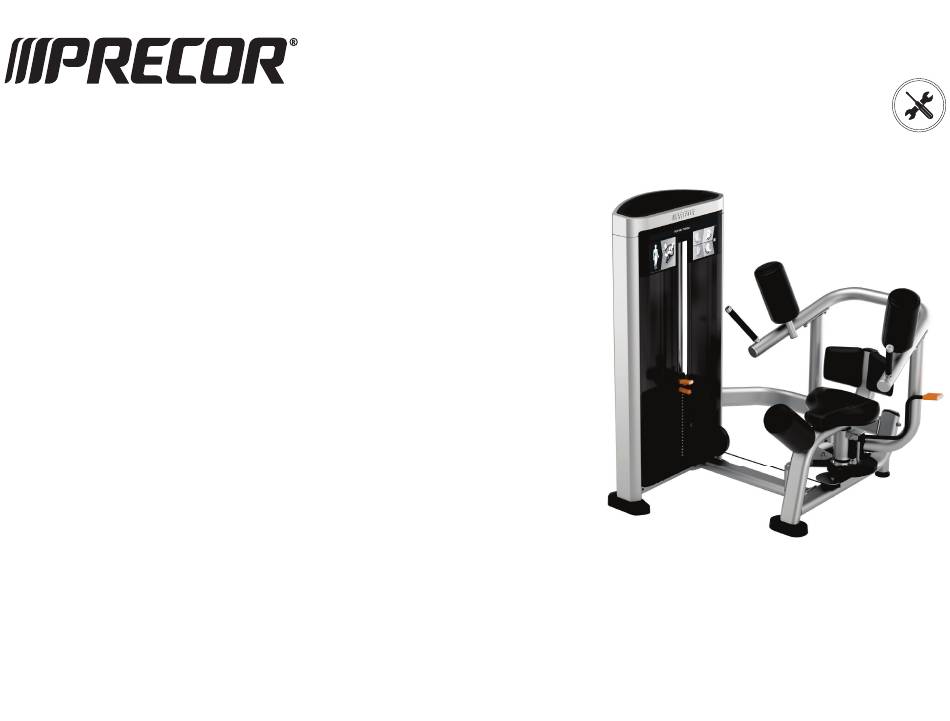

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Rotary Torso RSL 315 Assembly Guide...
-
Page 2: Assembly Requirements
Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide... -
Page 3: Parts List
Weight plates 10 lb (4.5 kg) Weight labels Bumpers Roller pad cap rings Roller pad caps Retaining rings Top plate assembly Kick plate Guide rods Top tray Seat pad ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide... -
Page 4: Frame Assembly
Instructions plate M12 nylon lock nuts Align to far right hole under pulley. Insert both guide rod fasteners from user side to align kick plate. Hand tighten only. step. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide... - Page 5 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide...
-
Page 6: Seat Assembly
Slide roller pads onto pad rods on arm frame and onto knee rod on main roller pad caps Snap roller pad caps onto roller pads. Attach seat pad to main frame ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide... -
Page 7: Route The Cable
Route the Cable Image Hardware Instructions replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide... - Page 8 Finish the Weight Stack Tower Image Hardware Instructions step 1 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide...
- Page 9 Secure them to the kick plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. M10 nylon lock nut bumpers frame. M10 nylon lock nut ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide...
- Page 10 ALL 41 mm 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide...
- Page 11 Repeat for the front middle shrouds Install the upper rear and front shrouds . Ensure to hook them Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Rotary Torso RSL 315 | Assembly Guide...
