Precor Resolute RSL 623 Assembly Manual

Precor Resolute RSL 623 Assembly Manual

Strength selectorized line seated calf extension
Hide thumbs Also See for Resolute RSL 623:

Advertisement

Quick Links

Download this manual
ENGLISH
ENGLISH
Resolute™ Strength Selectorized Line
Seated Calf Extension RSL 623
Assembly Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Resolute RSL 623 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Precor Resolute RSL 623

Summary of Contents for Precor Resolute RSL 623

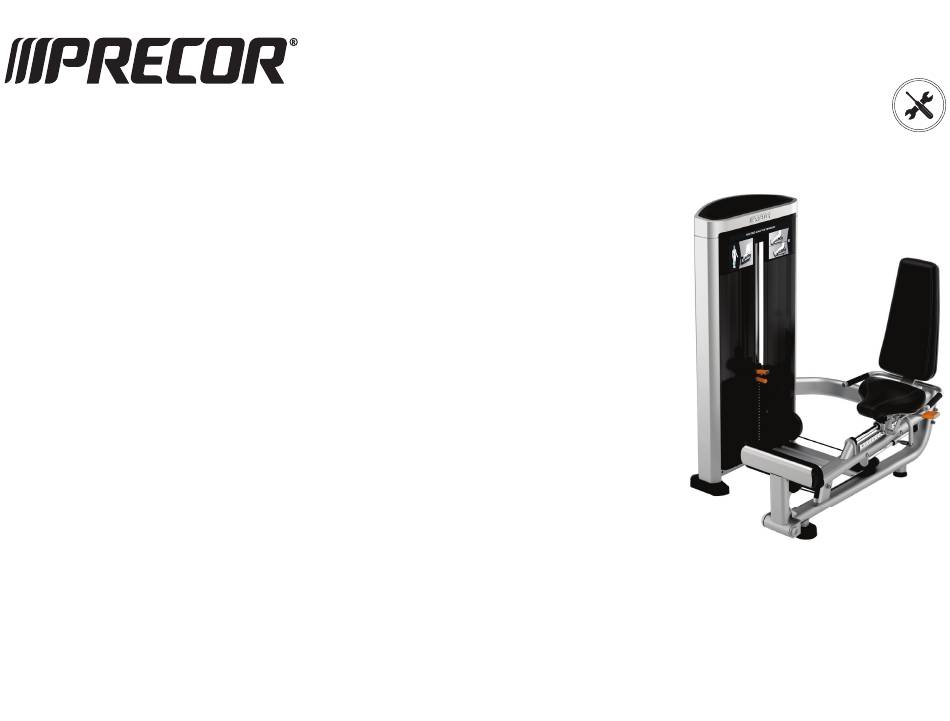

  • Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Seated Calf Extension RSL 623 Assembly Guide...

  • Page 3: Assembly Requirements

    Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...

  • Page 4: Parts List

    Parts List Part # Name Quantity Part # Name Quantity Main frame Seat frame Seat pad Back pad Shoulder bolt Upper cross brace Weight labels Kick plate Hole plugs End caps Weight plates 20 lb (9 kg) Guide rods Cable retainer Shaft Bumpers...

  • Page 5: Frame Assembly

    M12 nylon lock nuts Align to far right hole under pulley. Insert both guide rod fasteners from user side to align kick plate. Hand tighten only. step. 41 54 ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 6 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...

  • Page 7: Moving Parts

    CAUTION! cable retainer Route cable around pulley so it feeds through main frame Ensure the cable stays within the channel of the pulley and inside the cable retainer. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 8 7 step 6. Slide shoulder bolt shaft end caps 40 39 ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...

  • Page 9: Route The Cable

    . Hold the rod end and fully tighten the nut. Maximum distance is 25 mm. pulle replace the cable retainer. Tight- en to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 10 Finish the Weight Stack Tower Image Hardware Instructions step 1 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 11 Secure them to the kick plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. M10 nylon lock nut bumpers frame. M10 nylon lock nut ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 12 ALL 41 mm 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
  • Page 13 Install the upper rear and front shrouds . Ensure to hook them M10 x 40 mm SHCS Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...

  • Page 14: Complete The Assembly

    Complete the Assembly equipment. IMPORTANT types. Final Checklist • • • • • • • ©2019 Precor Inc. | Seated Calf Extension RSL 623 | Assembly Guide...
