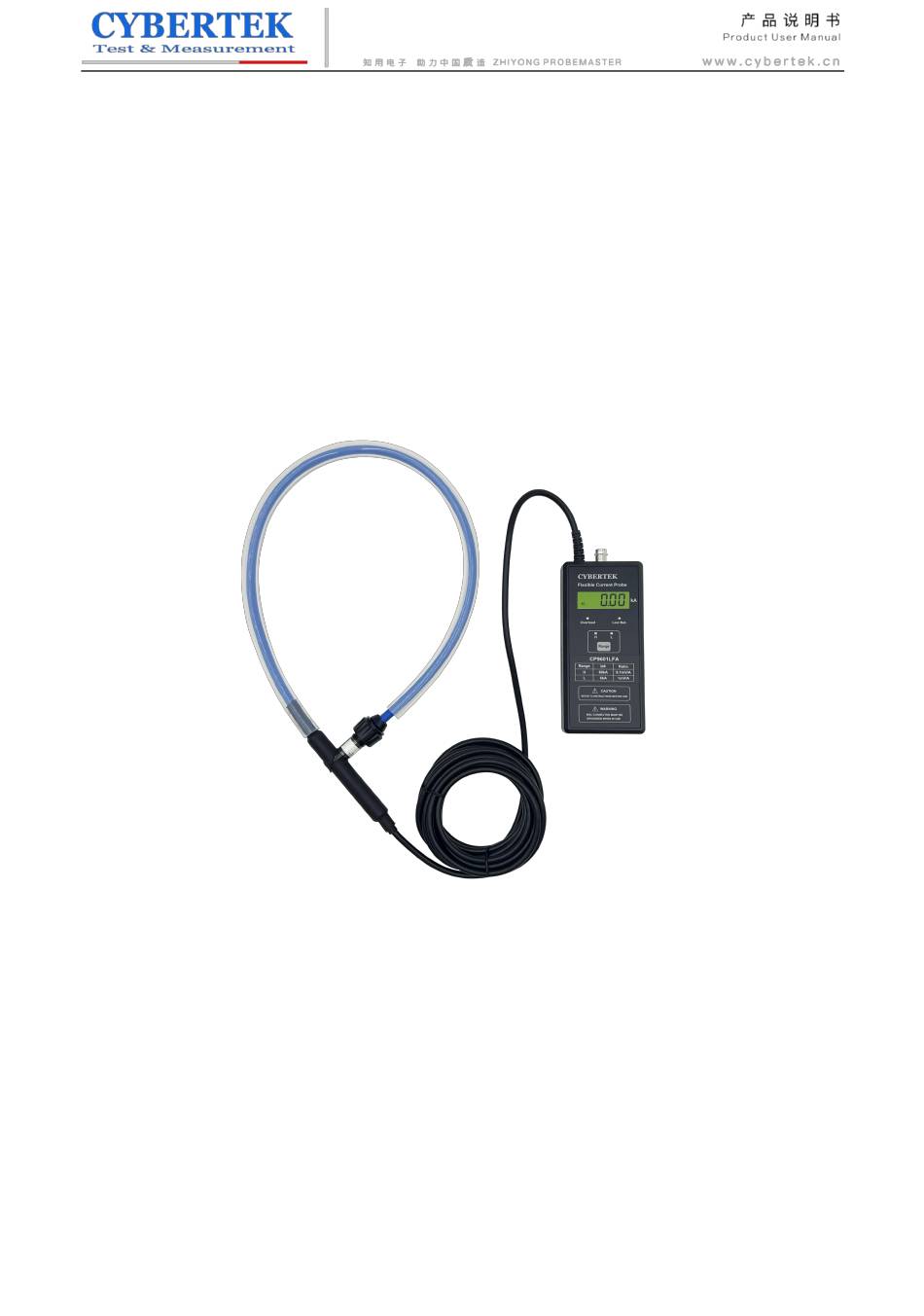

- Page 1 Low Frequency Flexible Current Probe CP9000LFA Series Shenzhen Zhiyong Electronic Co., Ltd www.cybertek.cn...
- Page 2 Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
- Page 3 1. Summary CP9000LFA series Low Frequency flexible current probe applies low frequency flexible probe with double ranges design, and was able to realize wide measurable current range, from 60A to 120kA. Guaranteed accuracy in the loop is 1%, and the typical accuracy is 2%, bandwidth up to 600 kHz (700mm loop perimeter). It is a unique oscilloscope probe and digital display integrated in the industry Probe.The outer diameter typical value is...
- Page 4 3. Specification 3.1 Electronical Parameter Testing Condition: 23℃, 60%RH, cable under test pass through the center of probe loop center High LCD display Sensitivity Peak Max noise Peak Frequency value (mV/A) Current(A) (mVrms) frequency Phase shift di/dt(kA/us) bandwidth Type (15Hz-400Hz) -3dB bandwidth (50Hz)
-
Page 5: Product And Accessories
4. Product and Accessories 4.1 Product Signal Output Interface: BNC standard interface, can connect to the oscilloscope of any brand through standard BNC connecting cable. USB 5V power supply connector: Standard USB (Type B) connector with standard USB power supply cable. -
Page 6: Environmental Characteristics
4.2 Accessories Coaxial Output Cable (CK-310: 1m) USB cable (CK-315B AM-BM, 1.5m) Power supply adaptor AA cells (USB output: DC5V/1000mA) (alkaline dry battery, 1.5V*4） 5. Specification Type CP9000LFA Flexible probe perimeter 700mm Typical value(Customizable) Loop diameter Typical value Loop connection cable length 4m(Customizable) BNC connection cable length 1m or 2m, 1m is standard version... - Page 7 Powering up by battery or external DC 5V power supply, switch on and the green power indicator ,mobilize the switch to the open position. Insert the cable of current under test, make sure the probe loop is inserted to the bottom, and lock the ...
-
Page 8: Maintenance
Alkali batteries(AA 1.5V) USB cable（AM-BM， 1.5m） BNC output cable(CK-310) Instruction book Warranty card Calibration Report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe Road, LongGang District, ShenZhen City, China Tel: （86）400 852 0005 / （86 755）86628000...
