Summary of Contents for Cybertek DP6000B Series

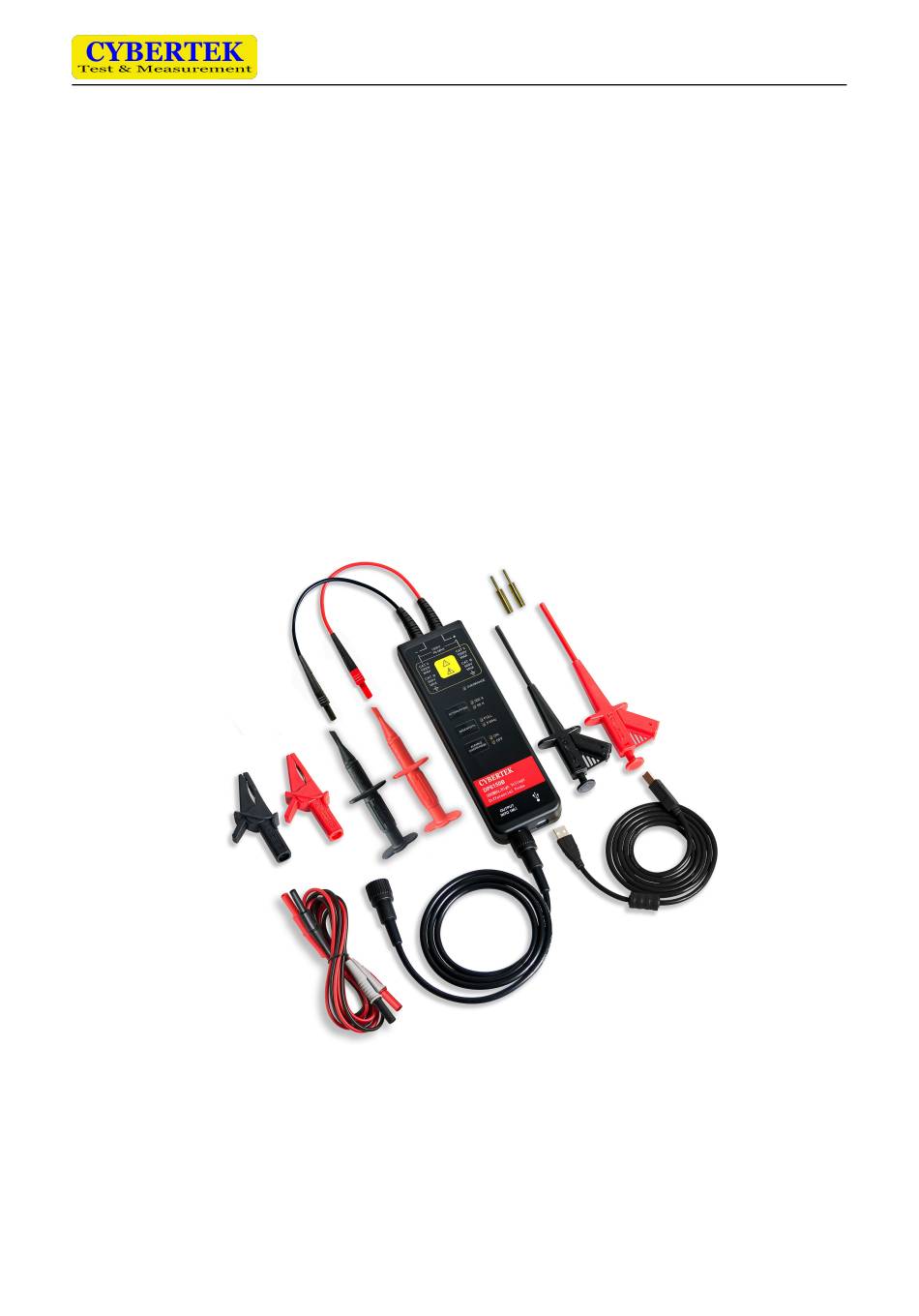

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. High Voltage Differential Probes DP6000B Series DP6070B 700Vpk/300MHz DP6150B 1500Vpk/300MHz DP6350B 3500Vpk/300MHz DP6700B 7000Vpk/300MHz ShenZhen ZhiYong Electronics Co., Ltd www.cybertek.cn...
- Page 2 When BNC lines are connected to the oscilloscope or other devices, ensure the BNC terminal is well grounded. Please check the probe skin. If there is any breakage, stop using it immediately. Select the product standard adapter power supply. DP6000B Series Brief Description Maximum Input Modal Differential Voltage Bandwidth Attenuation (Vp) DP6070B ±700V...
- Page 3 FETs in switching power supplies, and can filter out higher frequency noise and interference. DP6000B Series has sound & light alarming function, and users can turn it off manually if needed. DP6000B Series is powered by USB connector, and it contains standard BNC output connector that can ...
-
Page 4: Products And Accessories
Shenzhen Zhiyong Electronics Co., Ltd. 3. Products and Accessories ■ Main part of probe As DP6150B for example, different voltage, range, bandwidth would be in different product. Detailed instructions Integral input leads: The integral input leads extend 28cm from the probe body. Connect the leads ... - Page 5 Shenzhen Zhiyong Electronics Co., Ltd. ■ Accessories Description Alligator Clips (CK-261 red one pair) Alligator Clips (CK-262 one pair) Pincer Clips (CK-281 one pair) Hook Clips (CK-284A one pair) Extender Leads (CK-301 one pair) BNC Output Line(CK-310) USB line (CK-315B AM-BM, 1.5m) Banana jack（CK-293）...
-
Page 6: Electric Specification
Shenzhen Zhiyong Electronics Co., Ltd. 4. Electric Specification Model DP6070B DP6150B DP6350B DP6700B Bandwidth(-3dB） 300MHz Rise time ≤1.16ns Accuracy ±2% Range selection 20X/200X 50X/500X 100X/1000X 200X/2000X (Attenuation rate) Maximum differential ±70V ±150V 100X ±350V 200X ±700V voltage(DC + Peak AC) 200X ±700V 500X... - Page 7 Shenzhen Zhiyong Electronics Co., Ltd. Figure 1:DP6070B Differential Mode Voltage VS Frequency Figure 2:DP6150B Differential Mode Voltage VS Frequency Figure 3:DP6350B Differential Mode Voltage VS Frequency Figure 4:DP6700B Differential Mode Voltage VS Frequency 5. Mechanical Specification Model Parameters Input leads Approx 28cm Extender leads(CK-301) Approx 1m...
-
Page 8: Operating Steps
Shenzhen Zhiyong Electronics Co., Ltd. 7. Operating steps You should estimate the tested voltage amplitude before testing. Please do not use if exceeds the voltage range, or the probe could be damaged. Connect the input lead and output lead to the probe, and then connect the probe to oscilloscope or ... -
Page 9: Performance Verification
Shenzhen Zhiyong Electronics Co., Ltd. It is better not to extend input lead when testing; otherwise it may introduce more noise. If extra extension lead is necessary, please ensure the extension leads are at same length, and the input frequency is under 5MHz, errors may exist if exceeds 5MHz output. Without extender leads With extender leads 10. - Page 10 Shenzhen Zhiyong Electronics Co., Ltd. Figure 3 BNC-female-to-dual binding post Figure 4 BNC-male-to 50 Ω load 10.1 Setup Connect power adapter to voltage probe, which turns on green light, to ensure accuracy, test the probe index after 20 minutes. Uncover the red black plastic cover of the BNC-male-to-dual binding post.
- Page 11 Users can solder the banana jack onto the PCB board or the pins of the MOSFET under test as shown below: 10.4 DC Common Mode Rejection Ration(CMRR) Set DP6000B series probes at low attenuation ration, respectively (20X, 50X, 100X,200X ...
-
Page 12: Care And Maintenance
1 pcs 1 pcs 1 pcs 1 pcs NOTE: The above “--” refers to non-standard accessory of this model CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe Road, LongGang District, ShenZhen City, China Tel: （86）400 852 0005 / （86 755）86628000...
