Owner's Manual

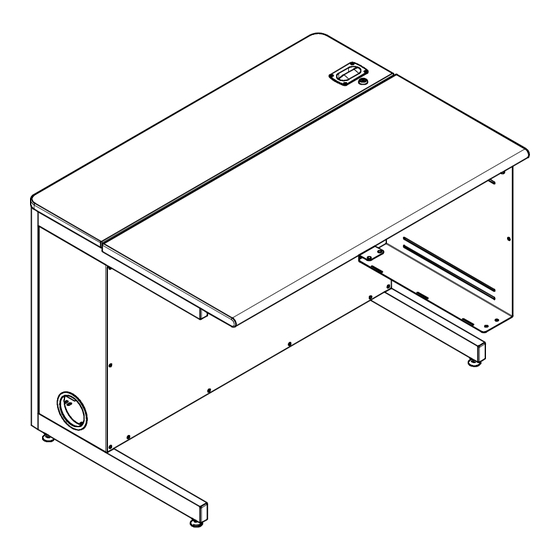

Flex Insight XMS Dual Monitor Computer Workstation
38964
workstation with lock
38962
workstation
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
0110658R2 Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 38962 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrum Industries 38962

Summary of Contents for Spectrum Industries 38962

  • Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
  • Page 2 If servicing is necessary, please the power cord by pulling only on the cord. contact Spectrum Industries for assistance. • Do not step on, drive over, drag, or place objects on the power cord. • For added safety, plug the cart into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker.

  • Page 3: Assembly & Set-Up

    Assembly / Setup 1. Unlock monitor column monitor column wing nut Note: Every Flex Insight desk ships with one or two carriage bolts with wing nuts locked in a keyhole slot under the bottom of the keyboard tray. These fasteners prevent monitor column movement during shipping, and will need to be removed to get the monitor column to function.

  • Page 4: Install Cpu

    3. Install CPU 1. Set the CPU unit into the CPU sling. 2. Make sure the CPU will be supported by both straps. Tighten the straps around the CPU while keeping the buckles positioned as high as possible to avoid interference. Figure 3A. Note: The center slot can be used for better support of smaller profile CPU’s.
  • Page 5 4. Install monitors 1. Attach a swivel VESA mount to each monitor with (4) 4mm PHM screws (not included-normally included with monitor). Figure 4A. 2. Loosen the back panel JC bolts on the desk slightly with a 4mm hex wrench, lift off the back panel, and open the monitor compartment lid. 3.

  • Page 6: Cord Management

    5. Cord management Flat head Screwdriver 1. With the back panel removed, connect the necessary monitor, keyboard, and mouse cords above the worksurface. Figure 5A. 2. Position the keyboard as shown approximately 6” from the front edge of the worksurface with the mouse on the opposite side of the CPU as shown.
  • Page 7 5. With the loom removed, feed the monitor, keyboard, and mouse cords through the sliced opening of the loom to the bottom of the desk as shown. Figure 5D. 6. Split the CPU wires out of loom approximately 3/4 of the way down the loom and plug into CPU. 7.

  • Page 8: Operation

    3. Connecting desks together (optional) 4mm hex wrench 1. Desks of equal height can be connected together with the included unit-to-unit bracket. Figure 6. 2. Align desks next to each other in their final location and raise monitor compartment lids. 3.

  • Page 9: Maintenance

    Maintenance After approximately 300 cycles of opening and closing, the friction dampener on the worksurface lid should be retightened to 13 in-lbs using a torque 4mm hex wrench with a 4mm hex driver. If a torque wrench is unavailable, tighten wrench the friction damper with a 4mm hex wrench 1/8 turn at a time and test.

  • Page 10: Warranty

    Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
