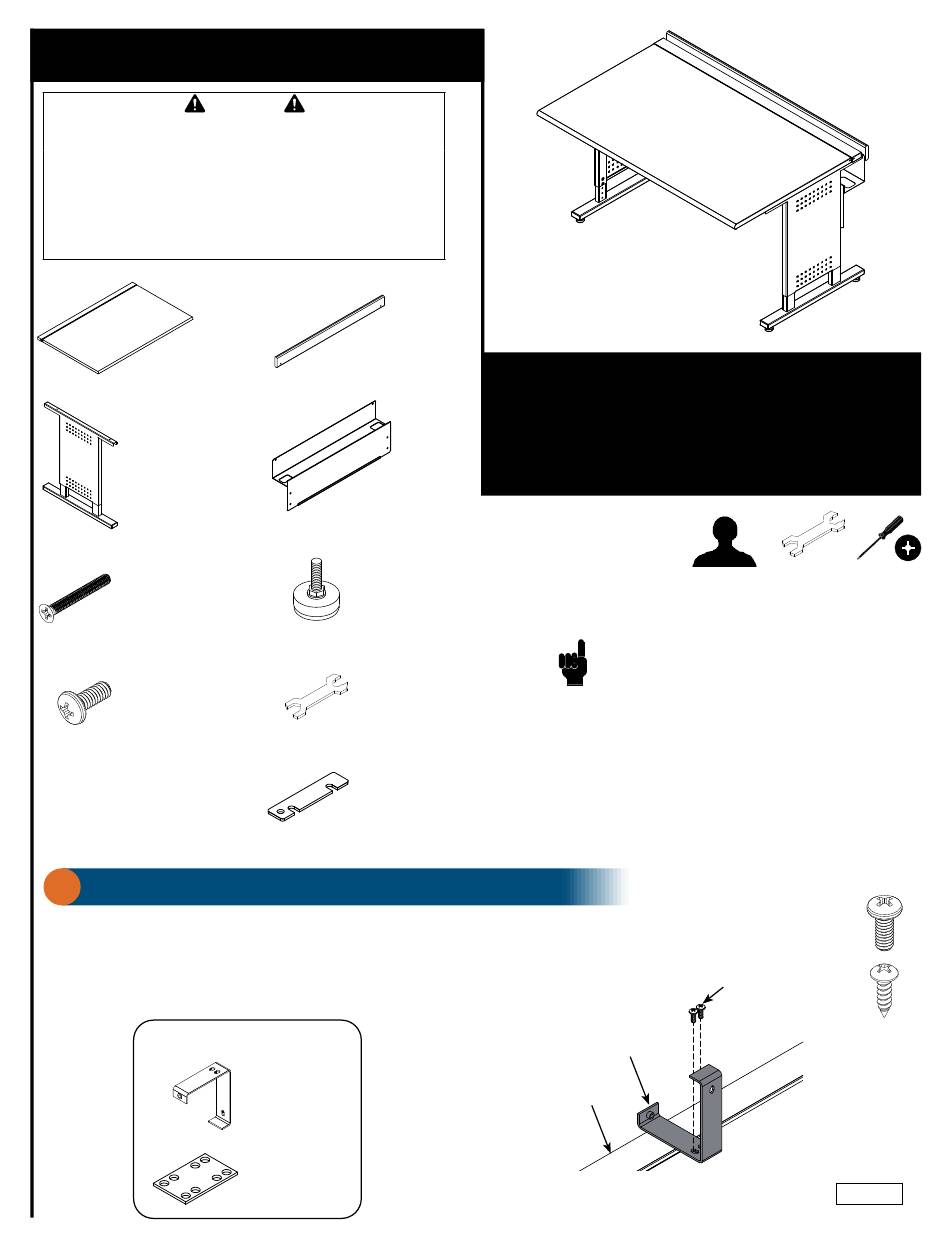

Spectrum Industries Evolution 38901ADJ Assembly Instructions

Assembly Instructions Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) Worksurface
(2) Leg
026011
1/4-20 x 2" FHMS
(2) 36", (3) 60", 72"
026064 (black)
043493 (putty)
1/4-20 x 5/8" PHMS
(10) 36", (12) 60", 72"
1
Attach chair rail bracket (60" & 72" desks only)
1. Place the worksurface face-down onto a non-abrasive surface.
2. Orient and attach the chair rail bracket to the center of the worksurface
as shown in Figure 1 with (2) 1/4-20 x 5/8" PHM screws.
(for 60", and 72" desks only)
(1) Chair rail
(1) Cord channel /
Modesty panel
(4) 037779
5/16-18 x 1" Glide
(1) 025069
Glide wrench
052463
Unit-to-unit bracket
(2) 36", (1) 60", 72"
(1) 051024
Chair rail bracket
(1) 036281
Dual unit-to-unit
bracket
Evolution Desk 30"D Evolution Desk 30"D
38901ADJ - 36"W 38901ADJ - 36"W
38904ADJ - 60"W 38904ADJ - 60"W
38905ADJ - 72"W 38905ADJ - 72"W
Assembly tip: Do not tighten component
fasteners completely until all have been
installed. Keeping them loose will help with
alignment between parts during assembly.
Chair rail bracket
Flip-top
38930 - 36"W Stand-up 38930 - 36"W Stand-up
(non ADJ legs) (non ADJ legs)
X2
(2) 1/4-20 x 5/8" PHMS
(for threaded inserts)
or
(2) #14 x 7/8" PHSM
(for pilot holes)
Worksurface
Figure 1
052519R6 Page 1 of 5
