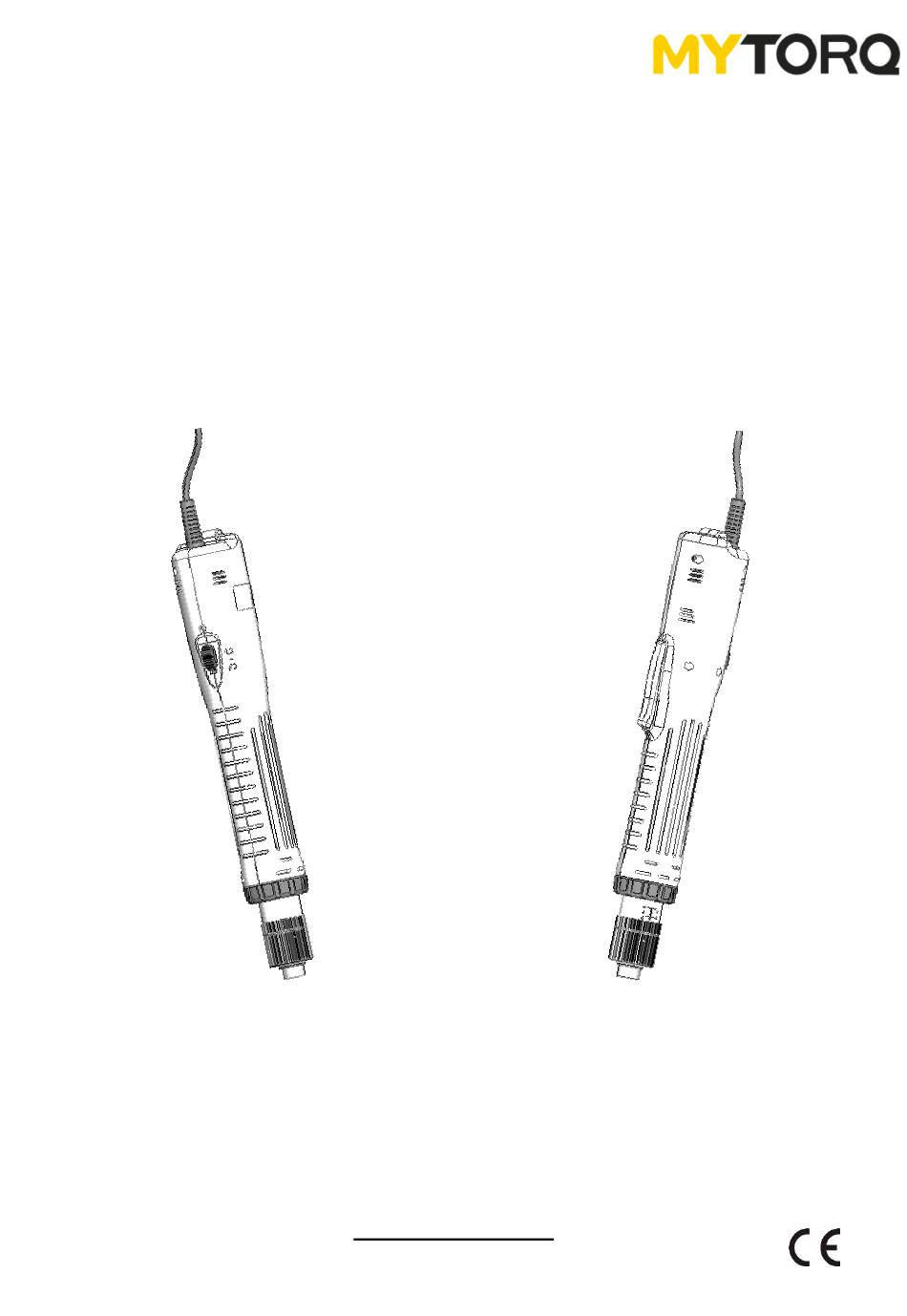

- Page 1 OPERATION AND MAINTENANCE MANUAL MYAC62-1030L MYAC62-1030LF MYAC62-2050L MYAC62-1030P MYAC62-1030PF MYAC62-2050P AC-TYPE Automatic Non Carbon-Brush Series ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F158A-2E-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
- Page 3 Important Safety Rules WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on / off.
- Page 5 WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors.
- Page 6 Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “ OFF “ position and tool is unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
- Page 7 Function Discription (1). Forward/Reverse Switch : To switch screwdriver run in Reserve or Forward R : Run in reserve to untighten screw。 F : Run in Froward to tighten screw。 (2). L-TYPE: Press Level switch and hold to start screwdriver, release to stop。 P-TYPE: Under Pressure and hold to start screwdriver, release to stop。...
- Page 8 Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ...
- Page 9 Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. Repairs should be made only by authorized, trained personnel. Consult your nearest MYTORQ authorized service center. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
- Page 10 BIT 2 Pcs. . MYAC62-2050 with BIT 2 Pcs. MYAC62-1030F with BIT 2 Pcs. MYTORQ 2. Suspension rack and Torque fixing ring acceptable for use with the tool are available from catalogue. 3. Torque Fixing Ring KC-7C(S) 1 Pcs.
- Page 11 Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows: 1. Determine the torque output of the tool by checking a tightened fastener with a torque wrench. 2. Increase or decrease the torque by turning the torque adjusting nut on the nose of the driver. Turning the nut clockwise to a higher number on the torque scale increase torque output while rotating the nut counterclockwise to a lower number decreases the torque output.
