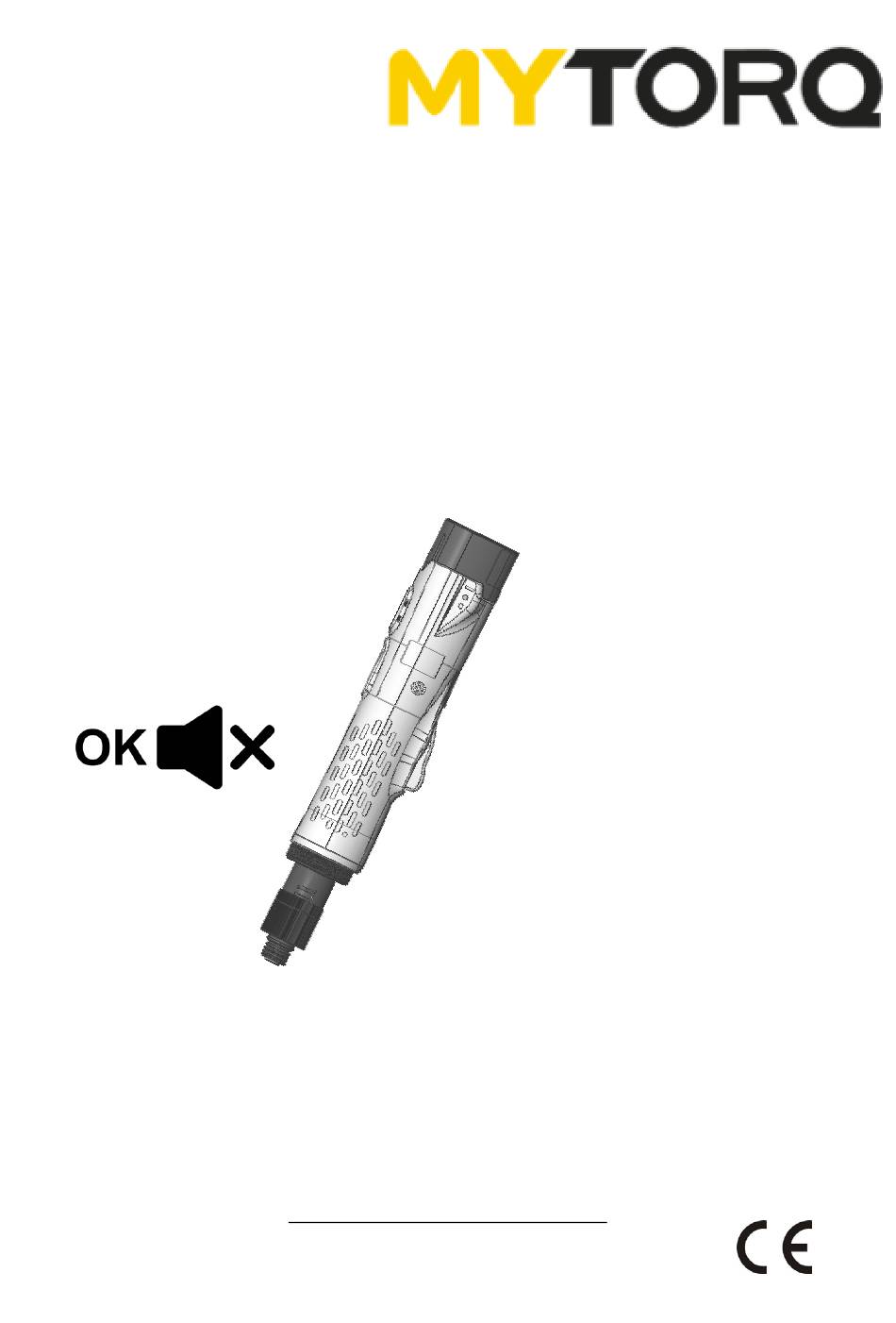

- Page 1 Automatic Industrial Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL MYBT-ASP0520 MYBT-ASP1030 MYBT-ASP2045 Rechargeable -TYPE Automatic Brushless Series SAING EI CORP. https://www.mytorqtools.com Y2F151A-15E-002...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1. - Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
- Page 4 19. Noise: The typical A-weighted noise level acc. To EN62841-2-2 .Sound pressure level(LpA): 53.6 dB(A) .Sound power level(LwA): 64.6 dB(A) Vibration: The vibration total value acc. EN62841-2-2 .Vibration emission value ah (m/s²): 0.17 m/s² .Uncertainty K (m/s²): 0.02 m/s² Cordless Tool Protections ▉Over electric current protection ▉Prevent from low power ▉Thermal Protector...
- Page 5 Operating Instructions 1. Charge the battery in the charging station before first use to make sure operates at its highest capacity. To ensure operators against injuries, Don't Press Pressure plate trigger before start or disassemble the device and push down screwdriver. 2.
-
Page 6: Function / Operating Introduction
The screwdriver can be shut off by either stop pushing or when screw has been tightened up. (2) Lever: It will enable reverse mode by press lever on MYBT-ASP0520 series. To do so: (a.) Press lever from your screwdriver. - Page 7 (3) Bit Sleeve To Switch the bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. Pull the bit holder Insert the bit into (4) Torque Adjustment Ring: Turn torque adjust ring counter clock wise to increase torque output, on the other hand decrease...
- Page 8 (9) OK/NG/Beep Sound Indicating Light Explanation Signal Indicator Release switch Screw reaches Current Start Screw NG Sound Judgment to stop running set torque Protection Running No lights Signal green Indicator Stop No lights No lights No lights No lights No lights Beep Sound 1 short 3 shorts...
-
Page 9: Other Cautions
11. The torque range of MYBT-ASP0520 series must be measured by the SAING EI torque meter KTM-150. 12. SAING EI cordless screwdriver torque output is generated by clutch mechanism, and it is... -
Page 10: Specifications
Specifications MODEL MYBT-ASP0520 MYBT-ASP1030 MYBT-ASP2045 INPUT VOLTAGE(DC) DC 10.8V hard joints 0.5-2 2-4.5 TORQUE soft joints (N.m) 0.5-1.6 1-2.4 2-3.6 80%↓ Torque accuracy (%) ±3% Torque adjustment Stepless Duty cycle 1.0s ON 3.0s OFF 1200 1200 Unloaded Speed (min )±10%... -
Page 11: Torque Adjustment Operation
Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows : Determine the torque output of the tool by checking a tightened fastener with a torque wrench. Increase or decrease the torque by rotating torque Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output.
