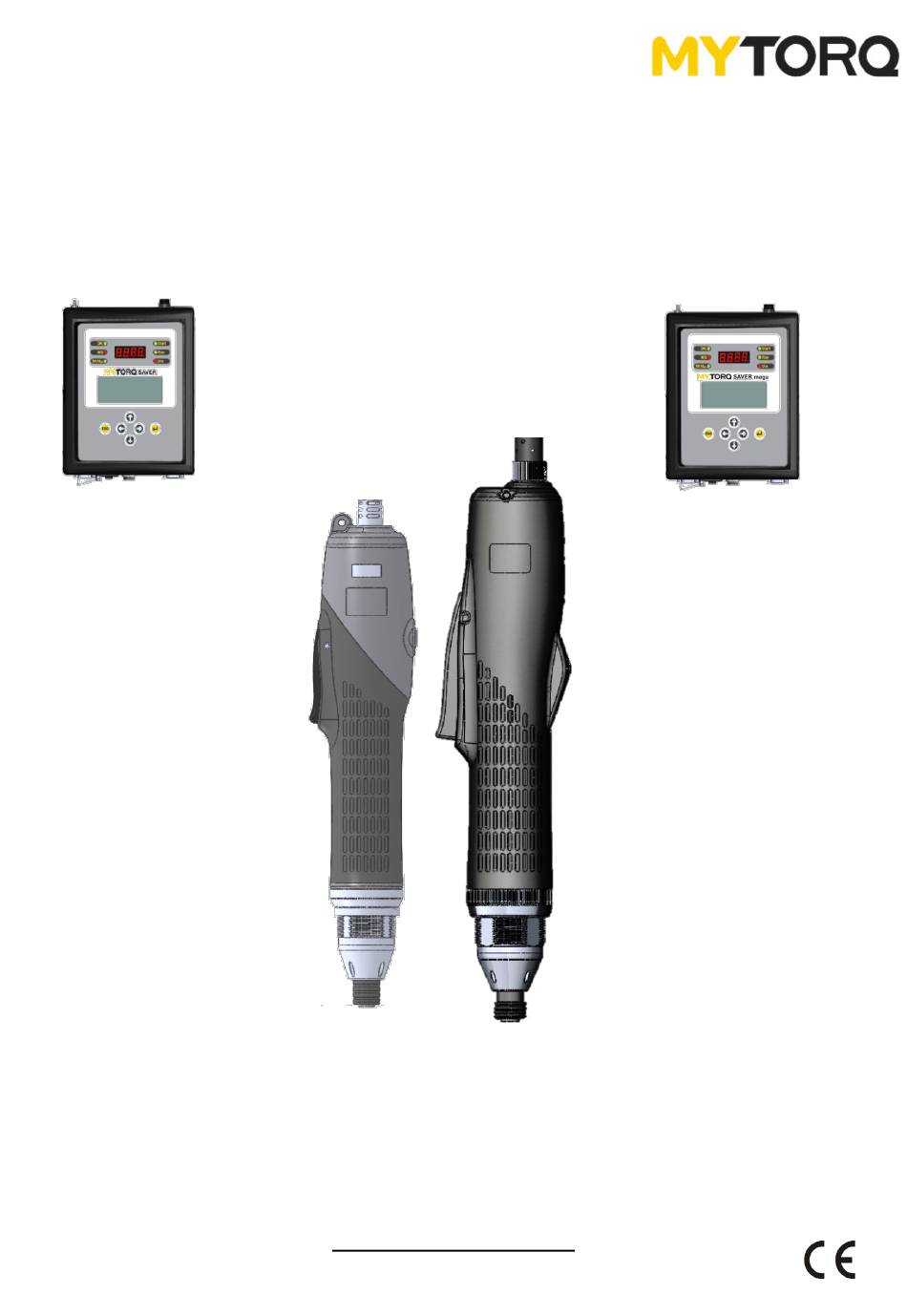

- Page 1 OPERATION AND MAINTENANCE MANUAL MY-SAVER3 MY-SAVER12 MY-SAVER5 MY-SAVER18 MY-SAVER7 MY-SAVER25 Automatic Non-Carbon-Brush Series SAING EI CORP. http://www.mytorqtools.com Y2F212A-3E-009...
-
Page 2: Important Safety Information Enclosed
NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SAING EI CORP. is not responsible for customer modification of tools for applications on which SAING EI CORP. was not consulted. WARNING Important safety information enclosed. -
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
-
Page 7: Function / Operating Introduction
Function / Operating Introduction Number Product Name Description Use Hanging hole is available, hang Hanging Hole screwdriver Display OK light, NG light, screw removal start Signal Light and stop signal Switch rotation direction CW/CCW Button Switch Lock stationary gearbox and housing Front Lock Ring Load/unload and fixing the screwdriver bits Headgear... -
Page 8: Maintenance And Inspection
Servicing Maintenance and Inspection: 1. The sensor screwdriver must be operated in top condition, one day working hour must be not more than eight hours. 2. Please note don’t let the motor get over heated, every minute use 9 screws to operate. 3. -
Page 9: Do Not Attempt To Repair This Electric Screwdriver
3. SAING EI CORP. is not responsible for customer modification of tools for applications on which SAING EI CORP. was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest MYTORQ authorized service center. 5. It is the responsibility of the employer to place the information in this manual into the hands of the operator. -
Page 10: Specifications
Specifications MODEL MY-SAVER3 MY-SAVER5 MY-SAVER7 Input voltage (DC) DC40V Power Consumption (N.m) 0.6-3 1.4-7 Torque (kgf.cm) 6.11-30.59 10.2-51.00 14.27-71.39 (Lbf.in) 5.31-26.55 8.85-44.25 12.39-61.96 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 160-1600 110-1100 70-660 Can be set and adjusted Weight (g) Length (mm) Power controller... - Page 11 Specifications MODEL MY-SAVER12 MY-SAVER18 MY-SAVER25 Input voltage (DC) DC40V Power Consumption (N.m) 2.4-12 3.6-18 5-25 Torque (kgf.cm) 24.5-122.4 36.7-183.6 51-254.9 (Lbf.in) 21.2-106.2 31.9-159.3 44.2-221.2 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed ±3% 100-1000 60-600 40-400 (r/min)Can be set and adjusted...
