Automatic Industrial Cordless Brushless
Power Torque Screwdriver Series
OPERATION AND MAINTENANCE MANUAL
MYBT-AE0612
MYBT-AE0309
MYBT-AE0205F
CAUTION!!
MYBT-AE0612/AE0309 SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN.
TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION.
MYTORQ INDUSTRIAL CO., LTD.
http://www.anlidar.com
MYBT-AE0206
MYBT-AE0135
MYBT-AE0135F
Y2F111A-3E-001
Advertisement
Table of Contents
Related Manuals for MYTORQ MYBT-AE0206
Summary of Contents for MYTORQ MYBT-AE0206

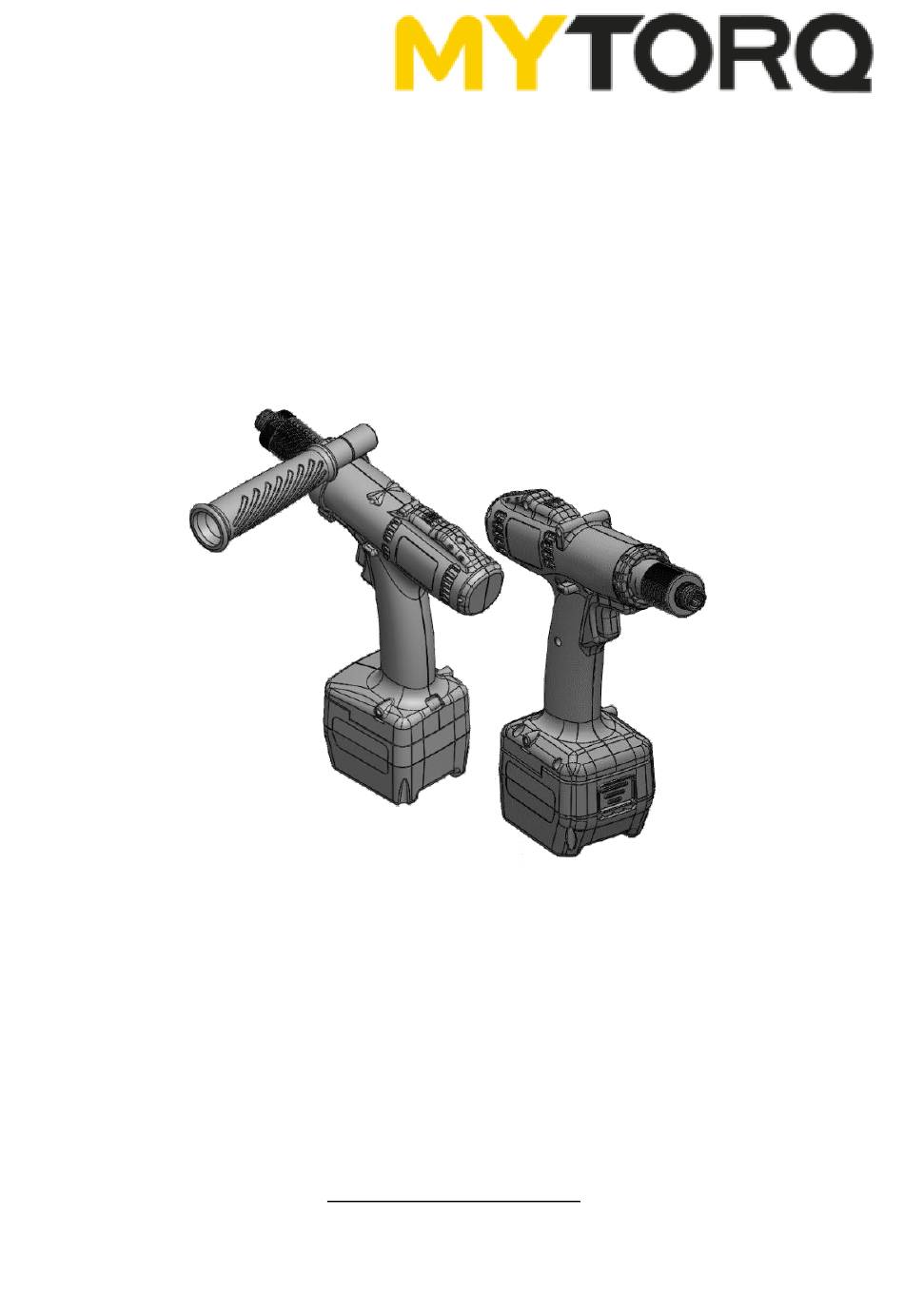

- Page 1 Power Torque Screwdriver Series OPERATION AND MAINTENANCE MANUAL MYBT-AE0206 MYBT-AE0135 MYBT-AE0135F MYBT-AE0612 MYBT-AE0309 MYBT-AE0205F CAUTION!! MYBT-AE0612/AE0309 SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN. TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION. MYTORQ INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F111A-3E-001...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term of “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.Read instruction manual. - Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
- Page 4 2. Do not attempt to disassemble or reassemble the device at will which may result in poor performance or danger of injury, the warranty applies only to initial package. 3. Do not repair the device with other than genuine MYTORQ replacement parts may result in poor performance or danger of injury, the warranty will be considered void.
- Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
-
Page 6: Function / Operating Introduction
Function / Operating Introduction (10) (12) (11) Function Name Table Description Description Trigger Switch S waist hook Forward/Reverse Lever Indication light LED Light Torque Adjustment Ring Bit Sleeve (10) Speed adjustment Torque Fixing Ring (11) Wrist strap hole Driver Hook Hole (12) Slip resistant soft cover... -
Page 7: Manual / Function
Manual / Function 1. Full auto shut-off screwdriver: It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger switch: The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... - Page 8 (5) Torque Fixing Ring/Coupler: 1).Torque Fixing Ring: To prevent torque to be adjusted, fixed upside-underside housing and clutch. 2).Coupler: Fixed upside-underside housing and clutch. Torque Fixing Ring COUPLER (6) Driver Hook: It is convenient that the production lines are able to have spring balancers work together with the tools to be more efficiently.
-
Page 9: Other Cautions
3. MYTORQ is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have individual operators read and follow up all instructions in... -
Page 10: Description Of Battery And Charger
ISO 6789. Description of Battery and Charger 1. MYTORQ SKC-LB1820B series of batteries as options to fit in the device; you may consult with local agent based on your task requirement. 2. The use of other than genuine MYTORQ batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging. -
Page 11: Specifications
Specifications MODEL(MYBT)) AE0612 AE0309 AE0205F AE0206 AE0135 AE0135F INPUT VOLTAGE(DC) DC 18V TORQUE (N.m) 6~12 1~3.5 1~3.5 Torque accuracy (%) Torque accuracy (±3%) Duty cycle 1.0s ON 3.0s OFF Step less Torque adjustment 1000 2200 1000 1000 2000 Unloaded Speed n0 (r/min)±10% 1400...
