OPERATION AND MAINTENANCE MANUAL
Attention!

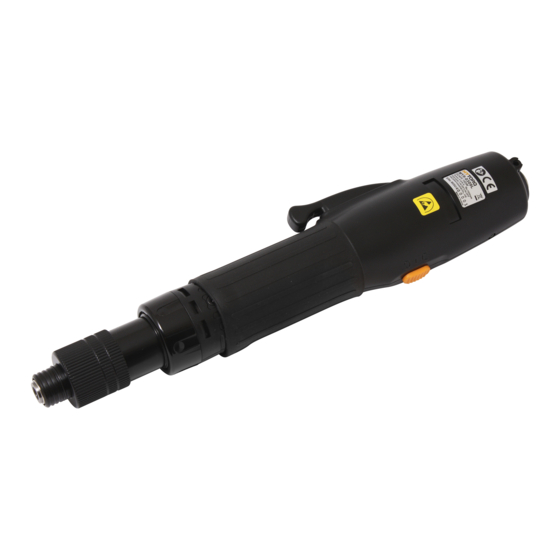

MYR-0412/MYR-0618/MYR-0825/MYR-1235/MYR-2050 is
belonging to high torque series. For safety consideration, please
collaborate it with Auxiliary Arm (KP-AUXA /KP-AUXA-500 Series).
DC-TYPE Automatic Non Carbon-Brush Series
Anlidar INDUSTRIAL CO., LTD.
MYR-0206L
MYR-0309L
MYR-0412L
MYR-0412LF
MYR-0618L
MYR-0618LF
MYR-0825L
MYR-0825LF
MYR-1235L
MYR-2050L
http://www.anlidar.com
MYR-0206P
MYR-0309P
MYR-0412P
MYR-0412PF
MYR-0618P
MYR-0618PF
MYR-0825P
MYR-0825PF
MYR-1235P
MYR-2050P
Y2F183A-3E-004
Advertisement
Table of Contents
Related Manuals for MYTORQ MYR-0206L
Summary of Contents for MYTORQ MYR-0206L
- Page 1 OPERATION AND MAINTENANCE MANUAL MYR-0206L MYR-0206P MYR-0309L MYR-0309P MYR-0412L MYR-0412P MYR-0412LF MYR-0412PF MYR-0618L MYR-0618P MYR-0618LF MYR-0618PF MYR-0825L MYR-0825P MYR-0825LF MYR-0825PF MYR-1235L MYR-1235P MYR-2050L MYR-2050P Attention! MYR-0412/MYR-0618/MYR-0825/MYR-1235/MYR-2050 is belonging to high torque series. For safety consideration, please collaborate it with Auxiliary Arm (KP-AUXA /KP-AUXA-500 Series).
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
7) Kindly note that MYR-0206/0309/0412/0618/0412F/0618F/0825 will be enclosed with the torque fixing ring. The torque fixing ring can protect the operator and avoid getting hurt by the threads on the screwdriver. And it can fix the torque and prevent the torque to be adjusted. In order to prevent getting hurt, kindly check if the torque fixing ring is fixed when using the screwdriver and adjusting the torque. -
Page 6: Grounding Instructions
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. The Green (or Green and Yellow) conductor in the Power Cord is the grounding wire. - Page 7 Operations Cautions 1)Before changing bits from MYR Series screwdriver, make sure the Forward / Reverse switch stays at “OFF” position. The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 8: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. -
Page 9: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. 4. Repairs should by made only by authorized, trained personnel. Consult your nearest MYTORQ authorized service center. -
Page 10: Specifications
Specifications MYR-0206L MYR-0309L MYR-0412L MYR-0618L MODEL MYR-0206P MYR-0309P MYR-0412P MYR-0618P Input voltage (DC) DC 40V Power Consumption Torque (N.m) 4~12 6~18 Repeatable Torque ±5% Accuracy (%) Torque Adjustment Stepless Unloaded Rotation Speed 1200 (R.p.m)±10% Machine ≤8 ≤10 4.0~5.0 5.0~6.0 screw(mm) - Page 11 MYR-0206 0309 0412 0412F 0618 0618F 0825 B with BIT 2 Pcs MYR-0825F 1235 B with BIT 3 Pcs MYR- W Type Not attached Socket 2、Suspension rack and Torque fixing ring acceptable for use with the tool are available from MYTORQ catalogue.
-
Page 12: Torque Adjustment Operation
7. If turn to “LO”on the power supplier, the screwdriver can’t offer high watt output, the torque on the screwdriver should be adjust under middle range to use. http://www.anlidar.com 8. Please refer to MYTORQ website for the detail component list.
